GENERATOR SHAFT

ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

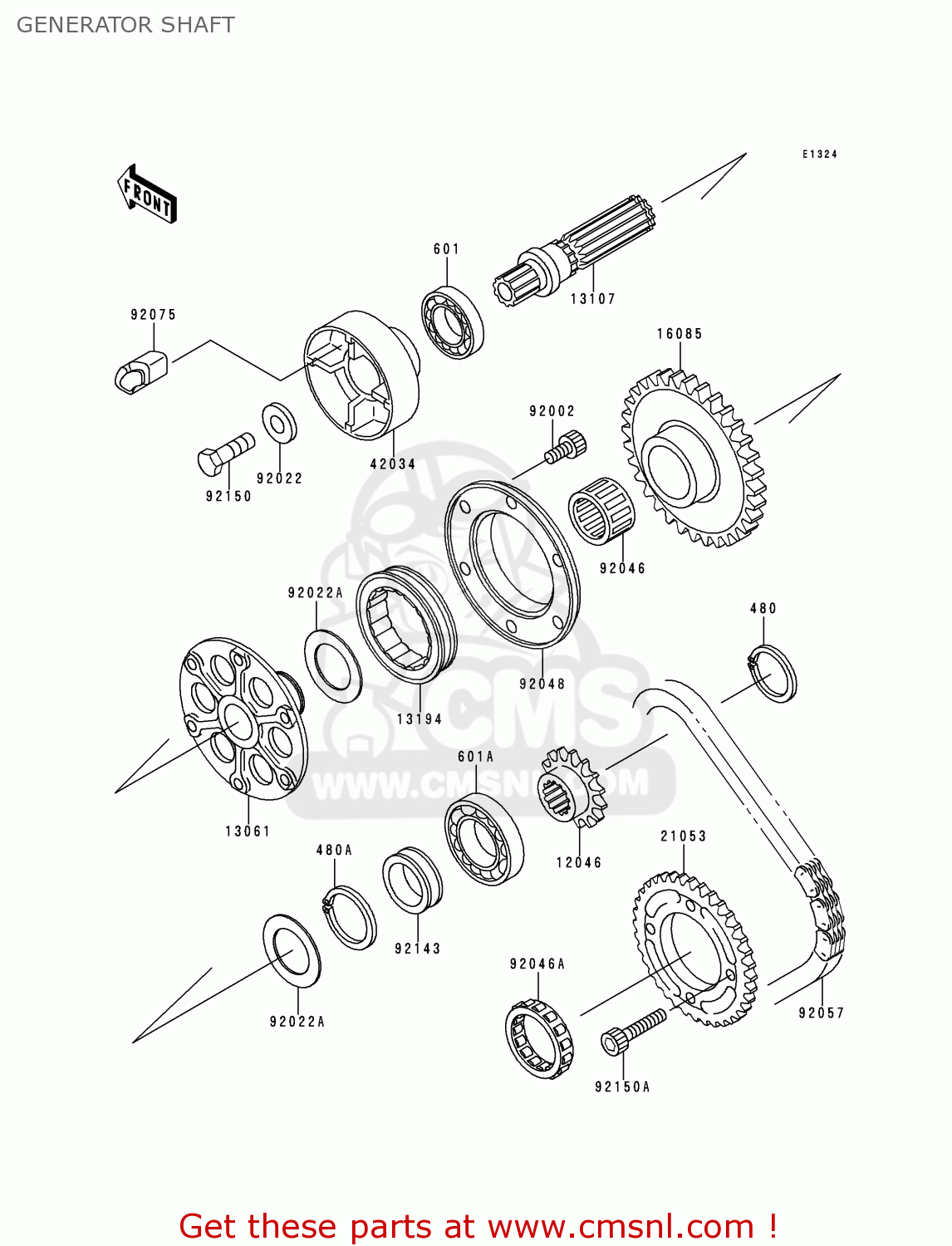

Generator shaft diagram ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

GENERATOR SHAFT ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

GENERATOR SHAFT ZX750P4 NINJA ZX7R 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J2000
ref: 480

CIRCLIP-TYPE-C,20MM

€ 1.00

480A

480J2500
ref: 480A

CIRCLIP-TYPE-C,25MM

€ 1.00

601

601A6203
ref: 601

BEARING-BALL,#6203

€ 10.50

601A

601A6204
ref: 601A

BEARING-BALL,#6204

€ 11.00

12046

120461127
ref: 12046

SPROCKET,DRIVEN,GENER

€ 32.00

13061

130611197
ref: 13061

BOSS,ONEWAY CLUTCH

€ 100.50

13107

131071277
ref: 13107

SHAFT,ONEWAY CLUTCH

€ 160.00

13194

131941095
ref: 13194

CLUTCH-ONEWAY

€ 122.50

16085

160851173
ref: 16085

GEAR,ONEWAY CLUTCH

€ 100.00

21053

210531064
ref: 21053

SPROCKET-ASSY,DRIVE

€ 47.50

42034

420341055
ref: 42034

COUPLING

€ 64.00

92002

920021796
ref: 92002

BOLT,SOCKET,6X12

€ 3.00

92022

920221518
ref: 92022

WASHER,8X22X3

€ 2.50

92022A

92022225
ref: 92022A

WASHER-THRUST

€ 3.50

92046

920461022
ref: 92046

BEARING-NEEDLE,K25302

€ 24.50

92046A

920461251
ref: 92046A

BEARING-NEEDLE

€ 21.00

92048

920481068
ref: 92048

RACE,ONEWAY CLUTCH

€ 58.50

92057

920571322
ref: 92057

CHAIN,GENERATOR,81RH2

€ 25.50

92075

920751790
ref: 92075

DAMPER,COUPLING

€ 6.50

92143

921431466
ref: 92143

COLLAR

€ 14.50

92150

921501488
ref: 92150

BOLT

€ 5.50

92150A

921501684
ref: 92150A

BOLT,SOCKET,5X25

€ 2.50
