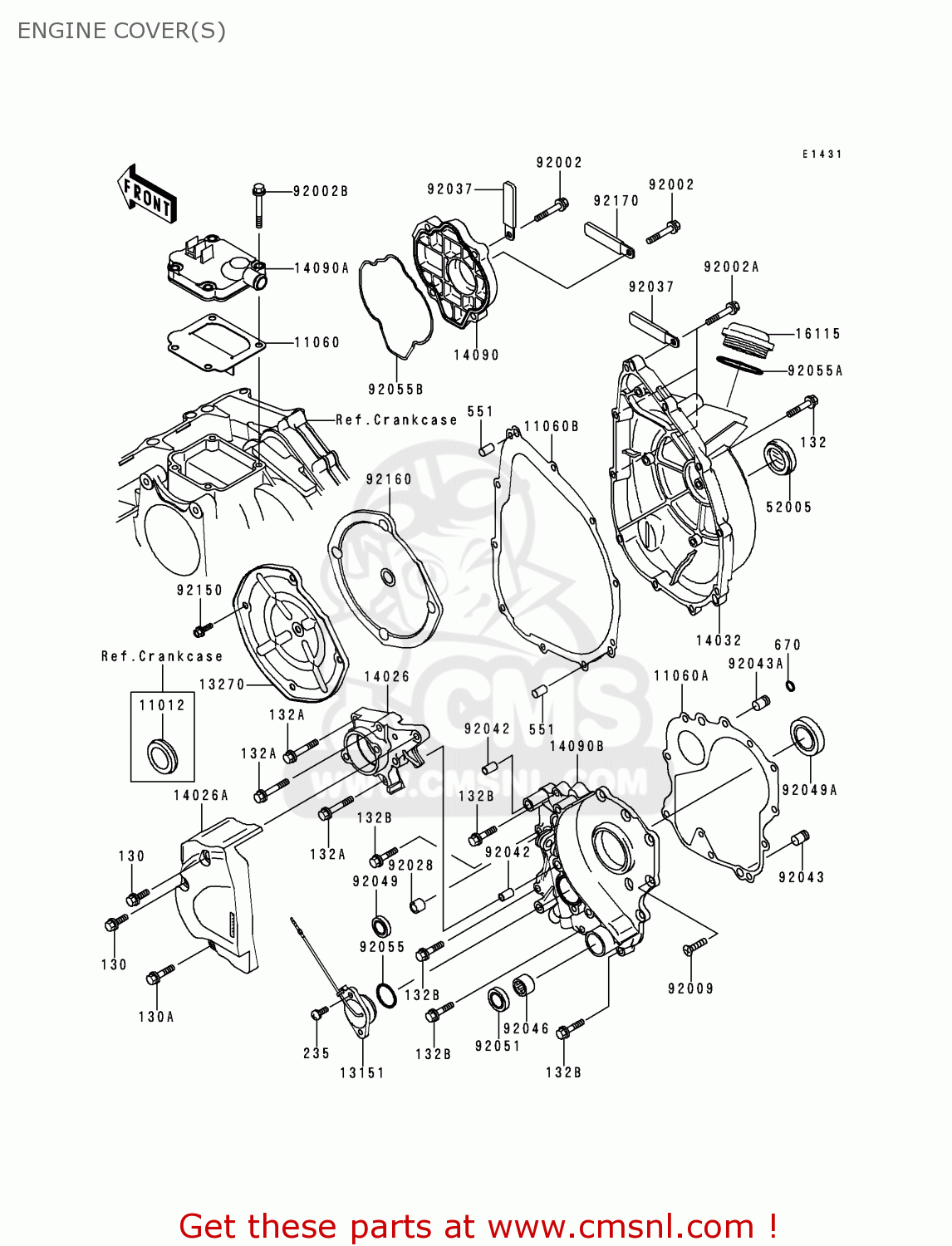

ENGINE COVER(S)

ref

part #

description

quantity

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0635
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132Y0625
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50

235

235C0516
ref: 235

SCREW-PAN-WP-CROS

€ 1.00

551

551A0814
ref: 551

PIN-DOWEL,8X14

€ 0.50

11012

110121770
ref: 11012

CAP,LH

€ 9.00

11060

110601702
ref: 11060

GASKET,BREATHER COVER (NAS)

€ 14.50

11060A

110601703
ref: 11060A

GASKET,TRANSMISSION C (NAS)

€ 40.00

11060B

110601704
ref: 11060B

GASKET,CLUTCH COVER (NAS)

€ 21.00

13151

131511081
ref: 13151

SWITCH-COMP

€ 20.00

13270

132701580
ref: 13270

PLATE,CLUTCH COVER (NAS)

€ 8.50

14026

140261228
ref: 14026

COVER-CHAIN,FR

€ 80.50

14026A

140261229
ref: 14026A

COVER-CHAIN,RR

€ 95.00

14032

140321427
ref: 14032

COVER-CLUTCH

€ 185.50

14090

140901630
ref: 14090

COVER,PULSING

€ 20.00

14090A

140901631
ref: 14090A

COVER,BREATHER

€ 28.50

14090B

140901632
ref: 14090B

COVER,TRANSMISSION

€ 146.50

16115

161151064
ref: 16115

CAP-OIL FILLER

€ 5.00

52005

520051057
ref: 52005

GAUGE,OIL LEVEL

€ 17.50

92002

920021343
ref: 92002

BOLT,6X20

€ 4.00

92002A

920021534
ref: 92002A

BOLT,6X30

€ 4.00

92002B

920021582
ref: 92002B

BOLT,6X25

€ 3.00

92009

920091360
ref: 92009

SCREW,6X16

€ 2.50

92028

920281750
ref: 92028

BUSHING,8X12X10

€ 4.00

92037

920371877
ref: 92037

CLAMP

€ 3.00

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92043A

920431456
ref: 92043A

PIN

€ 6.00

92046

920461148
ref: 92046

BEARING-NEEDLE,HK1312

€ 19.50

92049

920491017
ref: 92049

SEAL-OIL,SD-8187

€ 6.50

92049A

920491361
ref: 92049A

SEAL-OIL

€ 7.00

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055091
ref: 92055

0 RING

€ 4.00

92055A

920551295
ref: 92055A

RING-O,38MM

€ 11.00

92055B

920551543
ref: 92055B

RING-O,PULSING COVER

€ 10.50

92150

921501406
ref: 92150

BOLT

€ 2.00

92160

921601702
ref: 92160

DAMPER,CLUTCH COVER

€ 15.00

92170

921701514
ref: 92170

CLAMP

€ 2.50

670

670B1505
ref: 670

O RING,5MM

€ 1.00
