Genuine ZX Kawasaki Parts delivered quickly!


TAILLIGHT(S)

ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

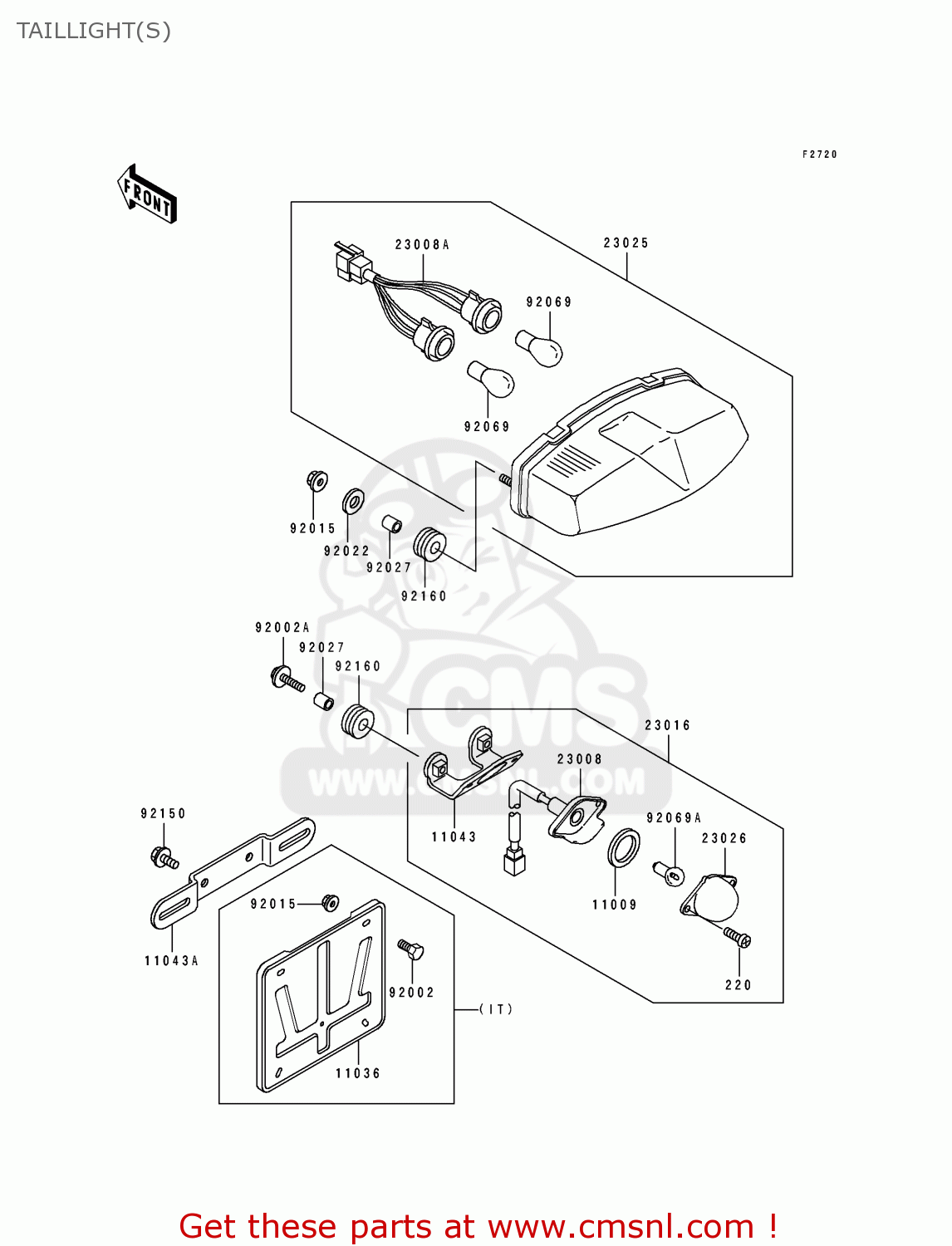

Taillight(s) diagram ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

TAILLIGHT(S) ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
TAILLIGHT(S) ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
TAILLIGHT(S) ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
220B0410
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
110091372
€ 3.00
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
110431497
€ 10.00
11043A
110431499
ref: 11043A
BRACKET,REFLECTOR
110431499
€ 12.00
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
230081221
€ 7.50
23008A
230081413
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 29.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
230161054
€ 54.50
23025
230251220
ref: 23025
LAMP-TAIL
230251220
€ 177.00
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021135
ref: 92002A
BOLT,6X25
920021135
€ 2.50
92015
920151367
ref: 92015
IT
NUT,FLANGED,6MM
920151367
€ 0.50
92015
920151367
ref: 92015
AREUFGFRGRNLNRSPSTUK
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92150
921501909
ref: 92150
BOLT
921501909
€ 3.00
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
