CHASSIS ELECTRICAL EQUIPMENT

ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

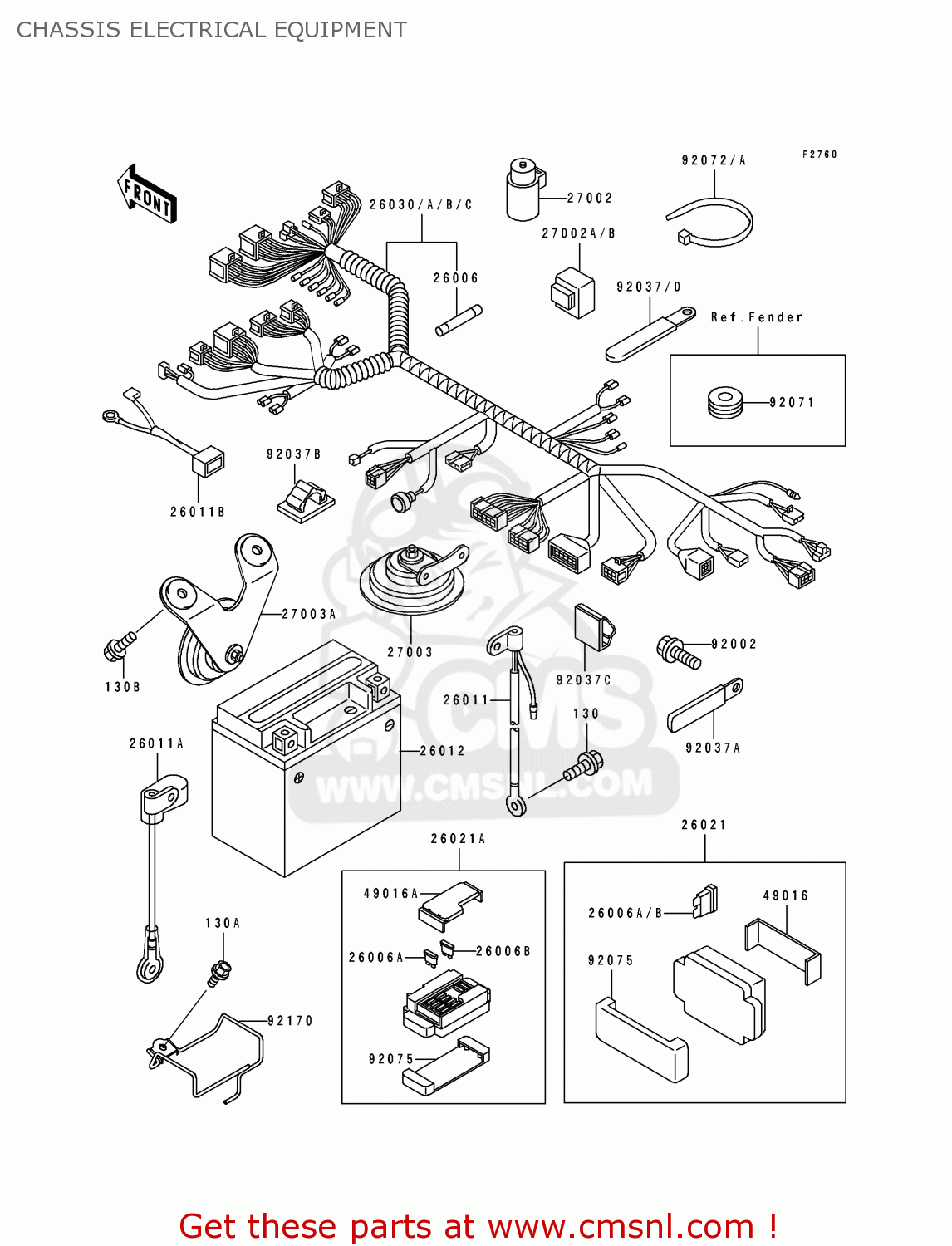

Chassis electrical equipment diagram ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

CHASSIS ELECTRICAL EQUIPMENT ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
CHASSIS ELECTRICAL EQUIPMENT ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
CHASSIS ELECTRICAL EQUIPMENT ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
130
130G0610
ref: 130
BOLT-FLANGED,6X10
130G0610
€ 0.50
26006
260061056
ref: 26006
FUSE,20A,L=30
260061056
€ 3.00
26006A
260061067
ref: 26006A
FUSE, 30A-G
€ 3.00
26006B
260061068
ref: 26006B
FUSE, 10A-R
€ 3.00
26011
260111429
ref: 26011
WIRE-LEAD,BATTERY(-)
260111429
€ 16.50
26011A
260111475
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 16.50
26011B
260111507
ref: 26011B
WIRE-LEAD,THERMO SENS
260111507
€ 18.50
26012
260121281
ref: 26012
BATTERY,YTX12-BS,12V
€ 120.50
26021A
260211090
ref: 26021A
JUNCTION BOX
260211090
€ 140.50
26030B
260301381
ref: 26030B
AREUFGFRGRNLNRSPSTUK
HARNESS,MAIN
€ 246.50
26030C
260301382
ref: 26030C
IT
HARNESS,MAIN
€ 266.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021059
ref: 27002A
AREUFRGRITNLNRSPSTUK
RELAY-ASSY,TURN SIGNA
270021059
€ 43.50
27002B
270021061
ref: 27002B
FG
RELAY-ASSY,TURN SIGNA
270021061
€ 57.00
27003
270031316
ref: 27003
HORN
270031316
€ 55.50
27003A
270031345
ref: 27003A
IT
HORN
€ 47.00
49016A
490161177
ref: 49016A
COVER-SEAL,FUSE
490161177
€ 7.00
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92037A
920371679
ref: 92037A
CLAMP
920371679
€ 3.50
92037B
920371816
ref: 92037B
CLAMP,HARNESS
920371816
€ 5.00
92037C
920371954
ref: 92037C
CLAMP,WIRING HARNESS
€ 4.00
92037D
920371993
ref: 92037D
CLAMP
920371993
€ 3.50
92071
920711058
ref: 92071
GROMMET,SENSOR LEAD
920711058
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701375
ref: 92170
CLAMP,HARNESS
€ 22.00
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130J0616
ref: 130B
IT
BOLT-FLANGED,6X16
130J0616
€ 1.50
