MUFFLER(S)

ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

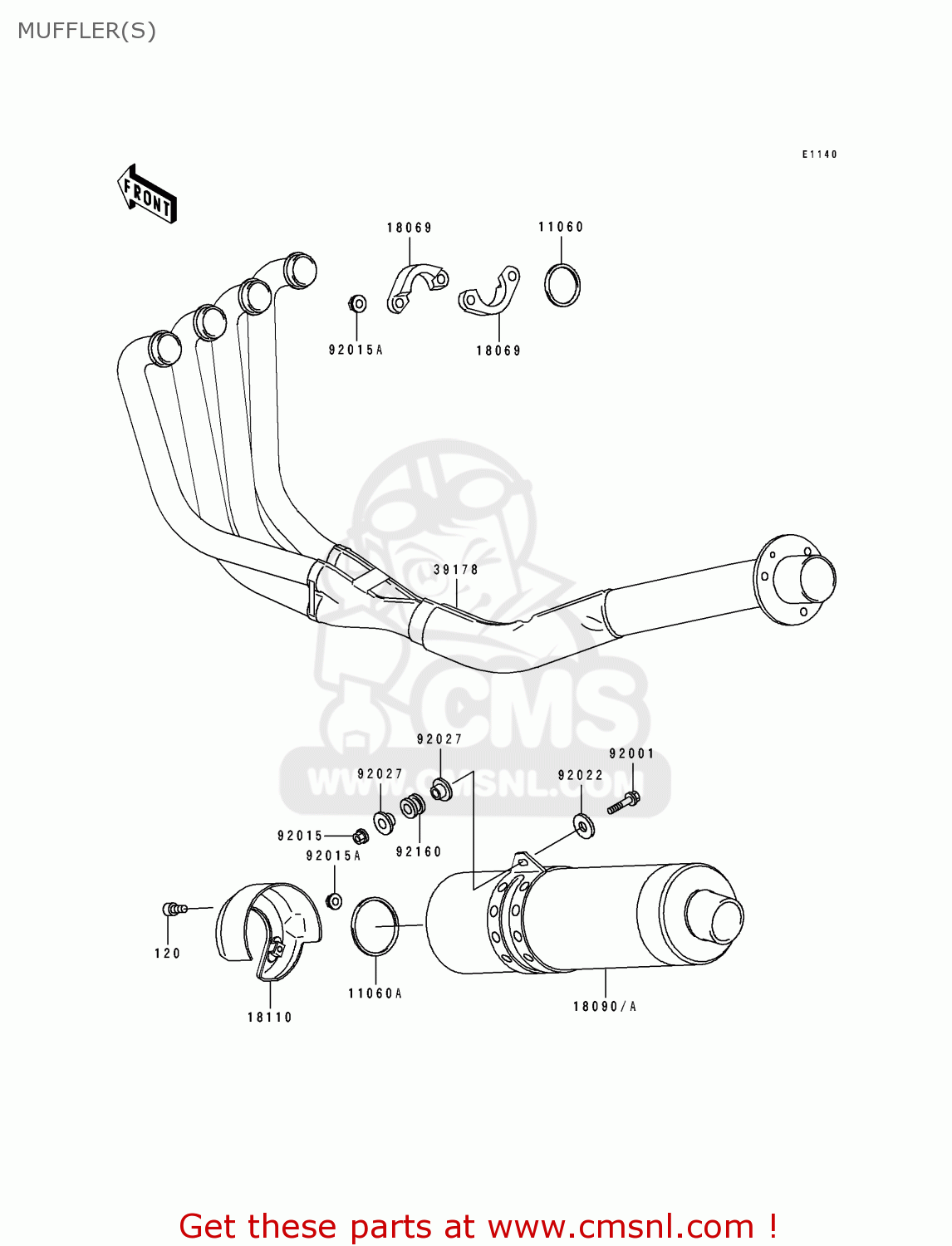

Muffler(s) diagram ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

MUFFLER(S) ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

MUFFLER(S) ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

prices are in EUR

ref

part #

description

quantity

120

120P0610
ref: 120

BOLT-SOCKET,6X10

€ 1.00

11060

110601103
ref: 11060

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

11060A

110601213
ref: 11060A

GASKET,MUFFLER CONNEC (NAS)

€ 14.00

18069

180691072
ref: 18069

HOLDER-EXHAUST PIPE

€ 16.00

18090A

180901399
ref: 18090A

BODY-COMP-MUFFLER

€ 451.00

18110

181101056
ref: 18110

BODY END-MUFFLER

€ 22.50

39178

391781215
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 947.50

92001

920011910
ref: 92001

BOLT,FLANGED,8X35

€ 4.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151380
ref: 92015A

NUT,LOCK,8MM

€ 3.00

92022

920223730
ref: 92022

WASHER,8.5X19X1.2

€ 2.50

92027

920271653
ref: 92027

COLLAR,FLNG,8.8X10.6

€ 7.00

92160

921601116
ref: 92160

DAMPER

€ 3.50
