REAR MASTER CYLINDER

ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

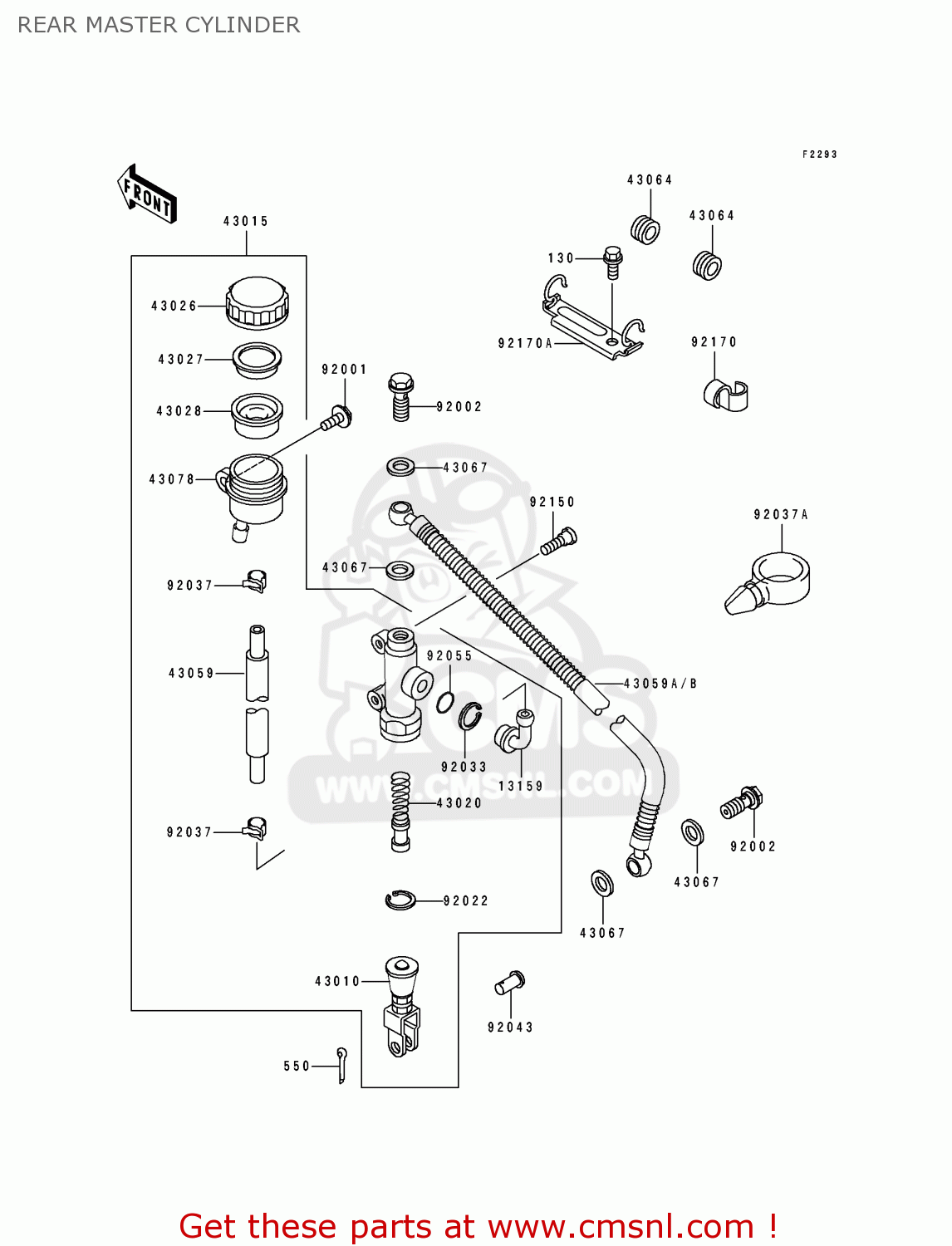

Rear master cylinder diagram ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

REAR MASTER CYLINDER ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
REAR MASTER CYLINDER ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
REAR MASTER CYLINDER ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
130
130H0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101062
ref: 43010
ROD-ASSY-BRAKE
430101062
€ 38.50
43015
430151456
ref: 43015
CYLINDER-ASSY-MASTER,
430151456
€ 272.00
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
430201094
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591313
ref: 43059
HOSE-BRAKE,RR MASTER
€ 22.50
43059B
430591855
ref: 43059B
HOSE-BRAKE,RR
€ 93.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
430781058
€ 20.00
92001
920011460
ref: 92001
BOLT,6X20
920011460
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92037A
920371827
ref: 92037A
CLAMP,HOSE
920371827
€ 5.00
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501837
ref: 92150
BOLT
921501837
€ 3.00
92170
921701097
ref: 92170
CLAMP,HOSE
921701097
€ 4.00
92170A
921701367
ref: 92170A
CLAMP,HOSE
921701367
€ 19.00
