STARTER MOTOR

ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

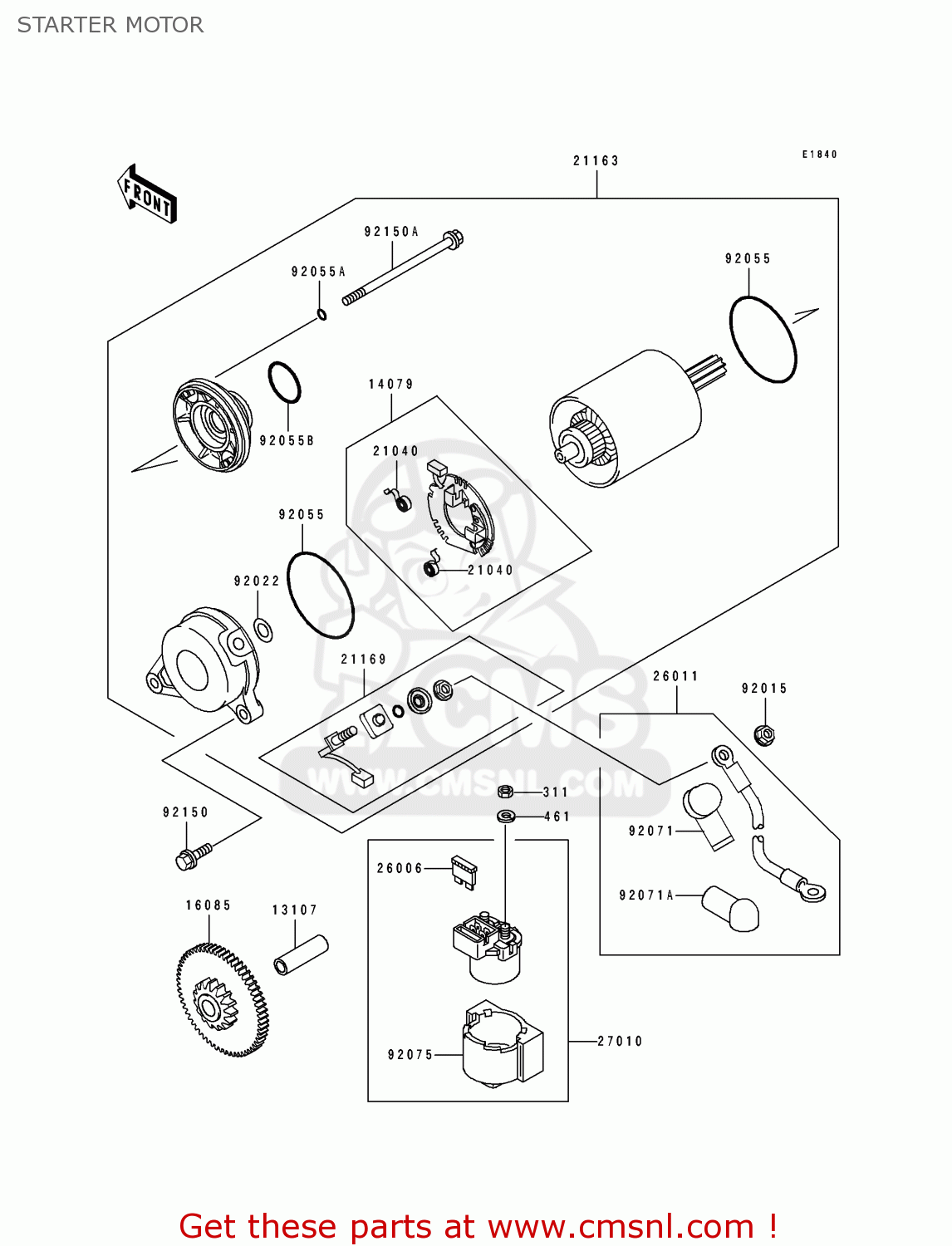

Starter motor diagram ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST

STARTER MOTOR ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
STARTER MOTOR ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
STARTER MOTOR ZX750L3 ZXR750 1995 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
13107
131071112
ref: 13107
SHAFT
€ 17.50
14079
140792055
ref: 14079
HOLDER-ASSY,CARBON BR
140792055
€ 31.50
16085
160851104
ref: 16085
GEAR,IDLE
160851104
€ 90.50
21040
210401051
ref: 21040
SPRING-BRUSH
210401051
€ 1.50
21163
211631193
ref: 21163
STARTER-ELECTRIC
211631193
€ 597.50
21169
211691058
ref: 21169
TERMINAL,STARTER
211691058
€ 44.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260111524
ref: 26011
WIRE-LEAD
260111524
€ 33.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
270101213
€ 111.00
92015
920151623
ref: 92015
NUT
920151623
€ 3.00
92022
920222200
ref: 92022
WASHER
€ 1.00
92055
920551260
ref: 92055
RING-O,62MM
920551260
€ 7.50
92055A
920551261
ref: 92055A
RING-O,4.5MM
920551261
€ 2.00
92055B
920551262
ref: 92055B
RING-O,24.4X3.1
920551262
€ 8.50
92071
920711120
ref: 92071
GROMMET,STARTER TERMI
920711120
€ 8.50
92071A
920711121
ref: 92071A
GROMMET,TERMINAL
€ 8.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92150
921501010
ref: 92150
BOLT,6X20
921501010
€ 2.00
92150A
921501237
ref: 92150A
BOLT
921501237
€ 7.00
