VALVE
ZX750G3 1986 EUROPE UK GR SD ST WG

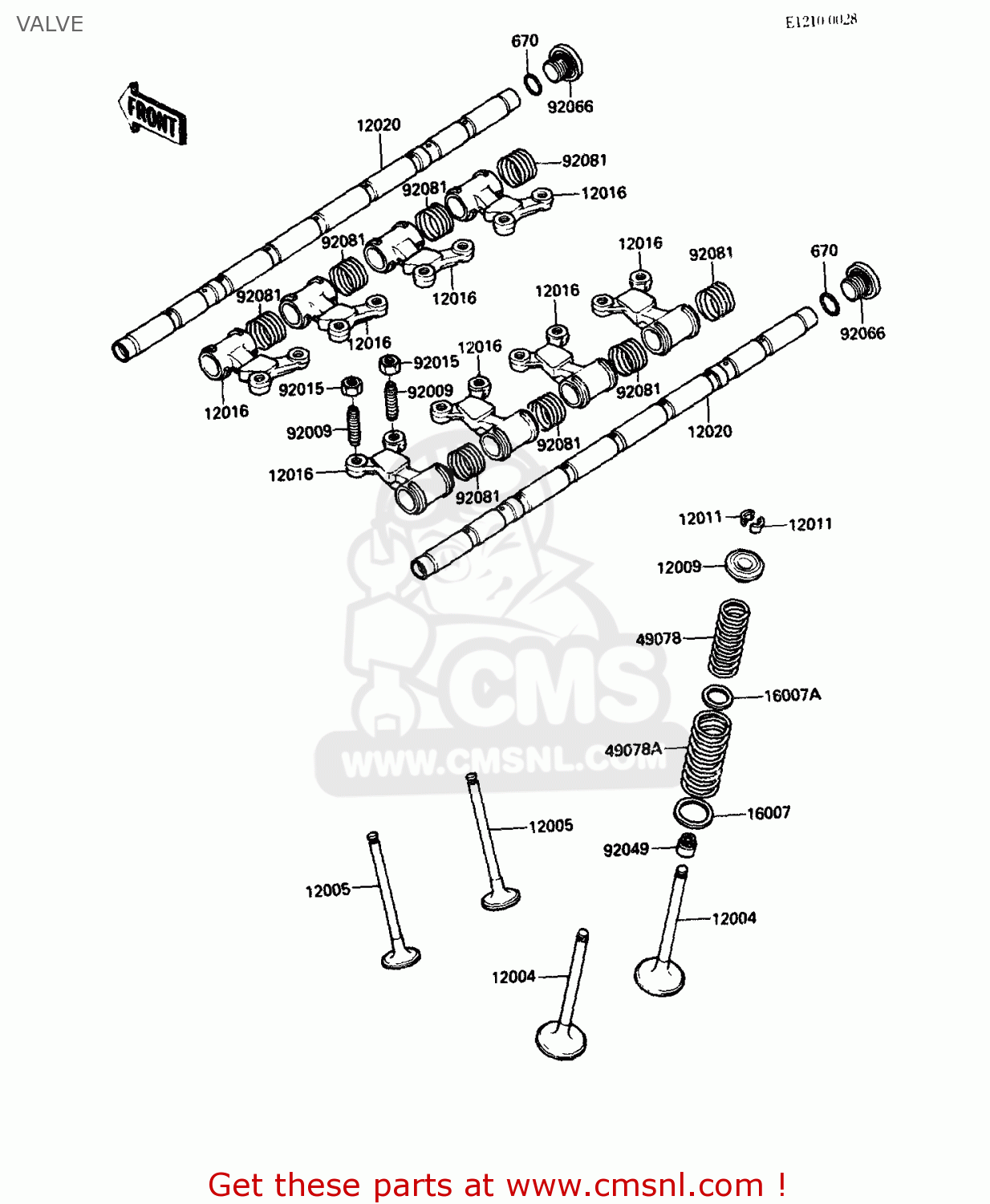

Valve diagram ZX750G3 1986 EUROPE UK GR SD ST WG
VALVE ZX750G3 1986 EUROPE UK GR SD ST WG
×
prices are in EUR
ref
part #
description
quantity
12004
120041053
ref: 12004
VALVE-INTAKE
€ 37.00
12005
120051053
ref: 12005
VALVE-EXHAUST
€ 44.00
12009
120091054
ref: 12009
RETAINER-VALVE SPRING
€ 7.00
12011
120111003
ref: 12011
COLLET
€ 3.00
12016
120161051
ref: 12016
ARM-ROCKER
€ 84.00
12020
120201051
ref: 12020
SHAFT-ROCKER,L=343
€ 65.00
16007
160071104
ref: 16007
SEAT-SPRING,17.5X24.5
€ 4.00
16007A
160071105
ref: 16007A
SEAT-SPRING,12.5X16.7
€ 3.50
49078
490781067
ref: 49078
SPRING-ENGINE, VALVE
€ 11.00
49078A
490781068
ref: 49078A
SPRING-ENGINE VALVE
€ 11.00
92009
920091279
ref: 92009
SCREW,7MM
€ 6.50
92015
920151325
ref: 92015
NUT,7MM
€ 3.00
92049
920491062
ref: 92049
OIL SEAL,RVC2-5.5X8.5
€ 6.50
92066
920661192
ref: 92066
PLUG,14X11.5
€ 16.00
92081
920811636
ref: 92081
SPRING,ROCKER ARM
€ 10.00
670
670B2015
ref: 670
O RING,15MM
€ 1.00
