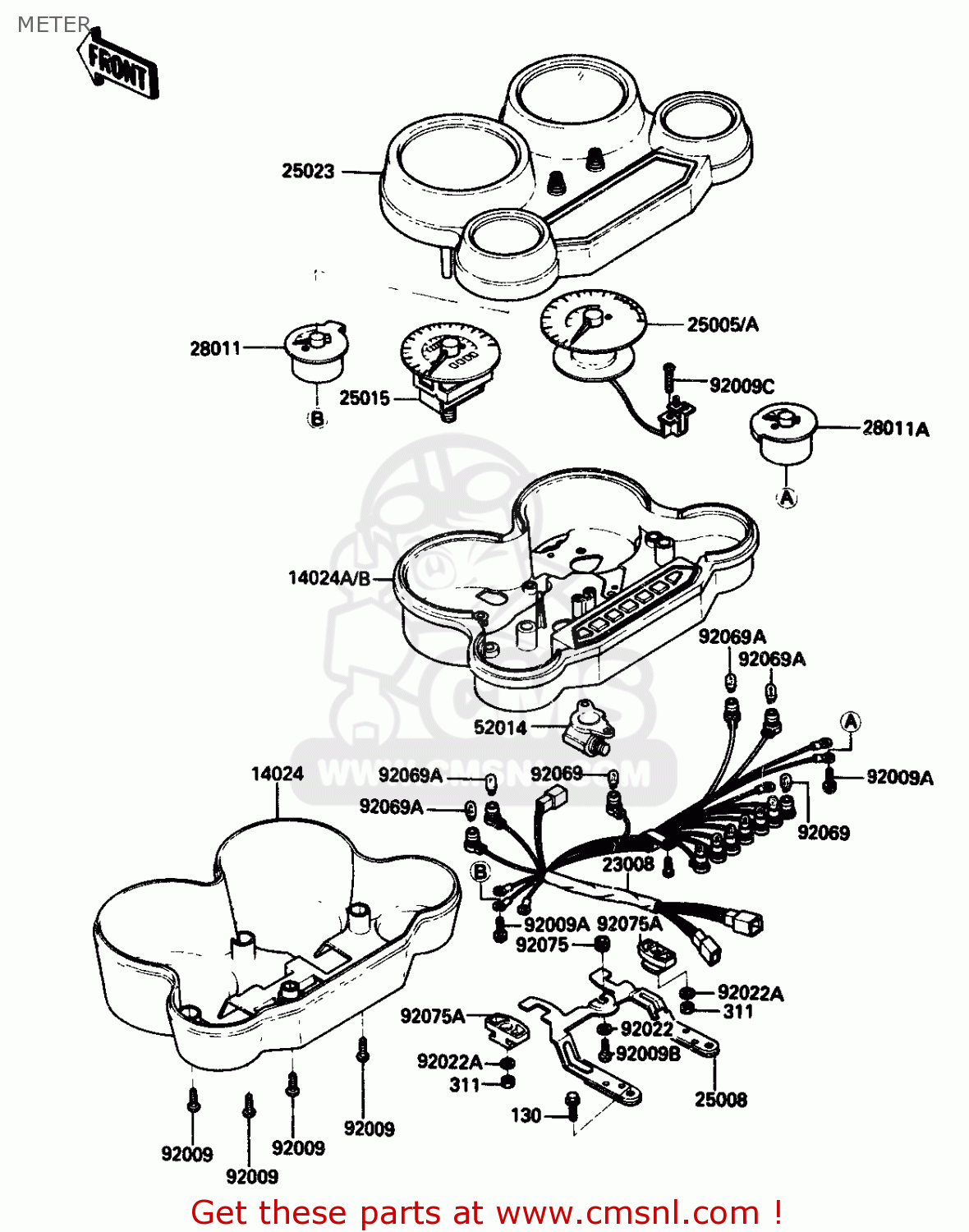

METER

ref

part #

description

quantity

14024

140251878
ref: 14024

COVER,METER CASE,LWR

€ 41.00

14024A

140251879
ref: 14024A
EU, GR, ST, UK, WG

COVER,METER HOUSING

€ 64.50

14024B

140251901
ref: 14024B
SD

COVER,METER HOUSING

€ 70.50

23008

230081230
ref: 23008

SOCKET-ASSY,METER

€ 111.50

25005

250051277
ref: 25005
EU, GR, SD, ST, WG

SPEEDOMETER,KPH

€ 184.50

25005A

250051278
ref: 25005A
UK

SPEEDOMETER,MPH

€ 184.50

25008

250081108
ref: 25008

BRACKET-METER

€ 69.00

25015

250151221
ref: 25015

TACHOMETER,(X1000RPM)

€ 121.50

25023

250231116
ref: 25023

COVER-METER CASE,UPP

€ 116.50

28011

280111062
ref: 28011

METER,FUEL

€ 62.50

28011A

280111070
ref: 28011A

METER,TEMP

€ 86.50

52014

520141006
ref: 52014

ELBOW,SPEEDOMETER GEA

€ 35.00

92009

920091158
ref: 92009

SCREW,4X16,BLACK

€ 2.50

92009A

920091293
ref: 92009A

SCREW,3X22

€ 2.50

92009B

920091326
ref: 92009B

SCREW,3X12

€ 2.50

92009C

920091330
ref: 92009C

SCREW,TAPPING,2.6X12

€ 2.50

92022

920221374
ref: 92022

WASHER,3MM

€ 2.00

92022A

92022263
ref: 92022A

WASHER,PLAIN,6MM

€ 1.50

92069

920691007
ref: 92069

BULB,12V3.4W

€ 2.50

92069A

920691020
ref: 92069A

BULB,12C3W T-7

€ 3.00

92075

920751435
ref: 92075

DAMPER,METER BRACKET

€ 4.00

92075A

920751495
ref: 92075A

DAMPER,METER BRACKET

€ 8.00

130

130C0614
ref: 130

BOLT-FLANGED,6X14

€ 1.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

all assemblies
