CARBURETOR
ZX750G3 1986 EUROPE UK GR SD ST WG

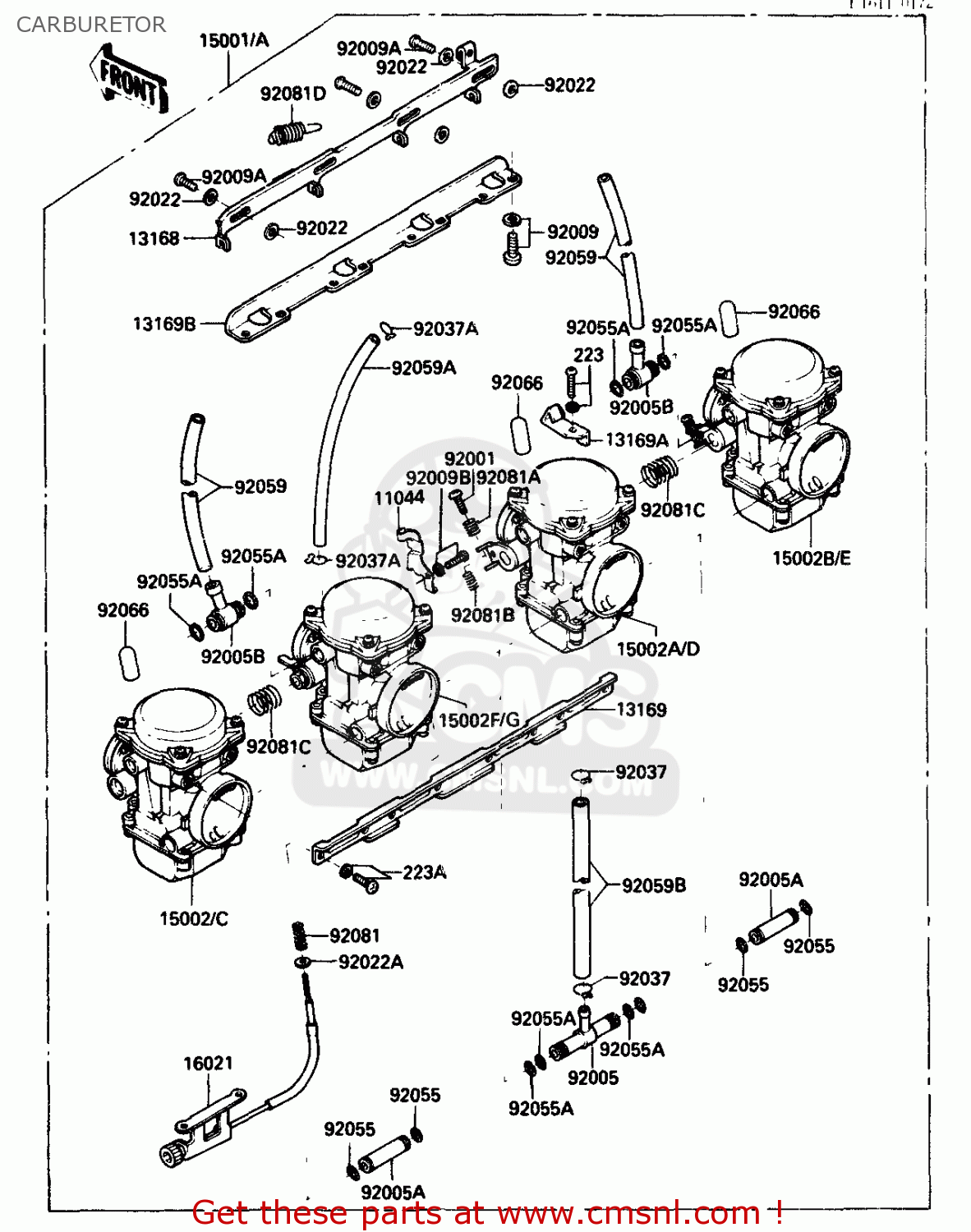

Carburetor diagram ZX750G3 1986 EUROPE UK GR SD ST WG
CARBURETOR ZX750G3 1986 EUROPE UK GR SD ST WG
×
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
€ 41.00
13168
131681246
ref: 13168
LEVER,BRAKE
€ 13.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13169B
131691873
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
15001
150011231
ref: 15001
EU, GR, SD, UK, WG
CARBURETOR-ASSY
€ 1,503.50
15001A
150011232
ref: 15001A
ST
CARBURETOR-ASSY
€ 1,435.50
15002
150021162
ref: 15002
EU, GR, SD, UK, WG
CARBURETOR,LH,OUTSIDE
€ 365.50
15002A
150021164
ref: 15002A
EU, GR, SD, UK, WG
CARBURETOR,RH,INSIDE
€ 365.50
15002B
150021165
ref: 15002B
EU, GR, SD, UK, WG
CARBURETOR,RH,OUTSIDE
€ 365.50
15002C
150021166
ref: 15002C
ST
CARBURETOR,LH,OUTSIDE
€ 365.50
15002D
150021168
ref: 15002D
ST
CARBURETOR,RH,INSIDE
€ 365.50
15002E
150021169
ref: 15002E
ST
CARBURETOR,RH,OUTSIDE
€ 370.00
15002F
150021286
ref: 15002F
EU, GR, SG, UK, WG
CARBURETOR,LH,INSIDE
€ 369.50
15002G
150021287
ref: 15002G
ST
CARBURETOR,LH,INSIDE
€ 369.50
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
€ 25.00
92005B
920051125
ref: 92005B
FITTING,T-TYPE
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091282
ref: 92009A
SCREW
€ 2.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92059
920591376
ref: 92059
TUBE,6.5X9.5X290
€ 20.50
92059A
920591377
ref: 92059A
TUBE,5X9X180
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
€ 14.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
