IGNITION SWITCH
ZX750G3 1986 EUROPE UK GR SD ST WG

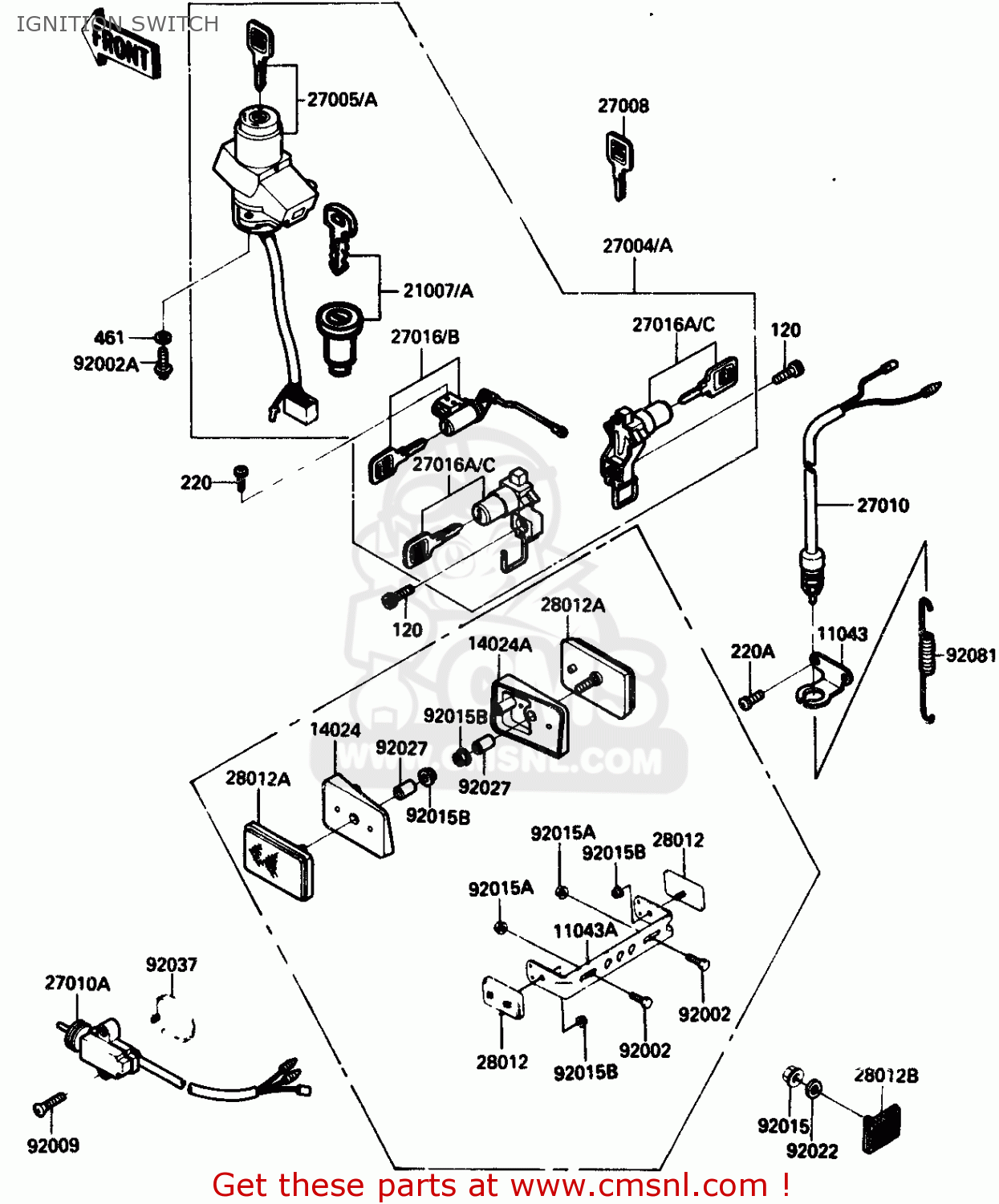

Ignition switch diagram ZX750G3 1986 EUROPE UK GR SD ST WG
IGNITION SWITCH ZX750G3 1986 EUROPE UK GR SD ST WG
×
prices are in EUR
ref
part #
description
quantity
11043
110431451
ref: 11043
BRACKET,RR BRAKE SWIT
€ 7.50
11043A
110431619
ref: 11043A
EU (OPTION)
BRACKET,REFLECTOR,RR
€ 9.00
14024
140251886
ref: 14024
EU (OPTION)
COVER,REFLECTOR,FR
€ 9.50
16024A
140251887
ref: 16024A
EU (OPTION)
COVER,REFLECTOR,FR
€ 9.50
21007
210075008
ref: 21007
EU, GR, ST, UK
ROTOR,TANK CAP
€ 65.50
21007A
210075011
ref: 21007A
SD, WG
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045274
ref: 27004
EU, SR, ST, UR
SWITCH-ASSY
€ 275.50
27004A
270045275
ref: 27004A
SD, WG
SWITCH-ASSY
€ 262.50
27005
270055057
ref: 27005
SG, WG
SWITCH-ASSY-IGNITION
€ 143.00
27005A
270055058
ref: 27005A
EU, GR, ST, UK
SWITCH-ASSY-IGNITION
€ 151.50
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101169
ref: 27010A
SWITCH,SIDE STAND
€ 60.00
27016
270165079
ref: 27016
EU, GR, ST, UK
LOCK-ASSY,SEAT
€ 99.00
27016A
270165080
ref: 27016A
EU, CR, ST, UK
LOCK-ASSY,HELMET
€ 80.50
27018B
270165063
ref: 27018B
GR, WG
LOCK-ASSY,SIDE BAG
€ 82.00
27016C
270165084
ref: 27016C
SD, WG
LOCK-ASSY,HELMET
€ 80.50
28012
280121002
ref: 28012
EU (OPTION)
REFLECTOR,REFLEX
€ 12.50
28012A
280121052
ref: 28012A
EU (OPTION)
REFLECTOR-REFLEX,FR
€ 17.50
28012B
280121055
ref: 28012B
REFLECTOR-REFLEX,RR
€ 12.50
92002
920021132
ref: 92002
EU (OPTION)
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
€ 1.50
92009
920091359
ref: 92009
SCREW
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151193
ref: 92015A
EU (OPTION)
NUT,FLANGED,6MM
€ 0.50
92015B
920151259
ref: 92015B
EU (OPTION)
NUT,FLANGED,5MM
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271789
ref: 92027
EU (OPTION)
COLLAR,5X8X14.5
€ 3.00
92037
920371576
ref: 92037
CLAMP,L=203
€ 8.00
92081
920811663
ref: 92081
SPRING,BRAKE LAMP SWI
€ 7.50
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
220
220D0512
ref: 220
SCREW-PAN-CROS,5X12
€ 0.50
220A
220B0608
ref: 220A
SCREW-PAN HEAD,6X8
€ 0.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
