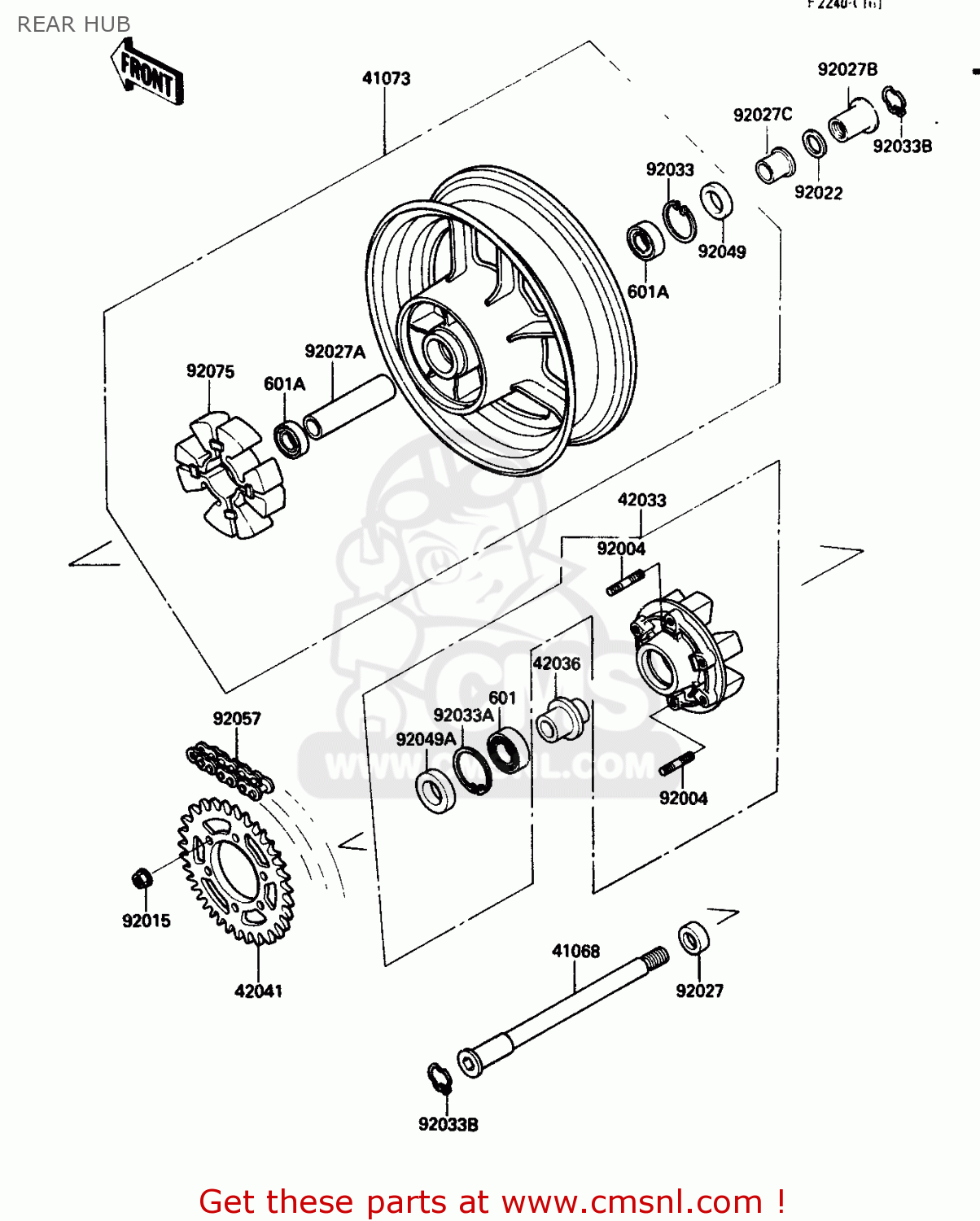

REAR HUB

ref

part #

description

quantity

41068

410681162
ref: 41068

AXLE,RR

€ 75.00

41073

410731283J9
ref: 41073

WHEEL-ASSY,RR,M.GRAY

€ 759.50

42033

420331110
ref: 42033

COUPLING-ASSY,RR HUB

€ 302.00

42036

420361010
ref: 42036

SLEEVE,RR BRAKE PANEL

€ 26.50

42041

420411184
ref: 42041

SPROCKET-HUB,49T

€ 55.00

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

920151502
ref: 92015

NUT,FLANGED,10MM

€ 7.00

92022

920221618
ref: 92022

WASHER,23X32X2.3

€ 4.00

92027

920271715
ref: 92027

COLLAR,40X50X20

€ 19.00

92027A

920271714
ref: 92027A

COLLAR,L=104

€ 14.50

92027B

920271810
ref: 92027B

COLLAR,RR AXLE,L=28

€ 21.00

92027C

920271811
ref: 92027C

COLLAR,RR AXLE,L=33

€ 20.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92033B

920331156
ref: 92033B

RING-SNAP,RR AXLE

€ 3.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92049A

92050027
ref: 92049A

OIL SEAL

€ 13.50

92057

920571163
ref: 92057

CHAIN,DRIVE,EK50KVD0X

€ 129.50

92075

920751593
ref: 92075

DAMPER,SHOCK,RR HUB

€ 59.00

601

601B6206
ref: 601

BEARING-BALL,#6206C3

€ 19.50

601A

601B6303ZZ
ref: 601A

BEARING-BALL,#6303ZZC

€ 32.50

all assemblies
