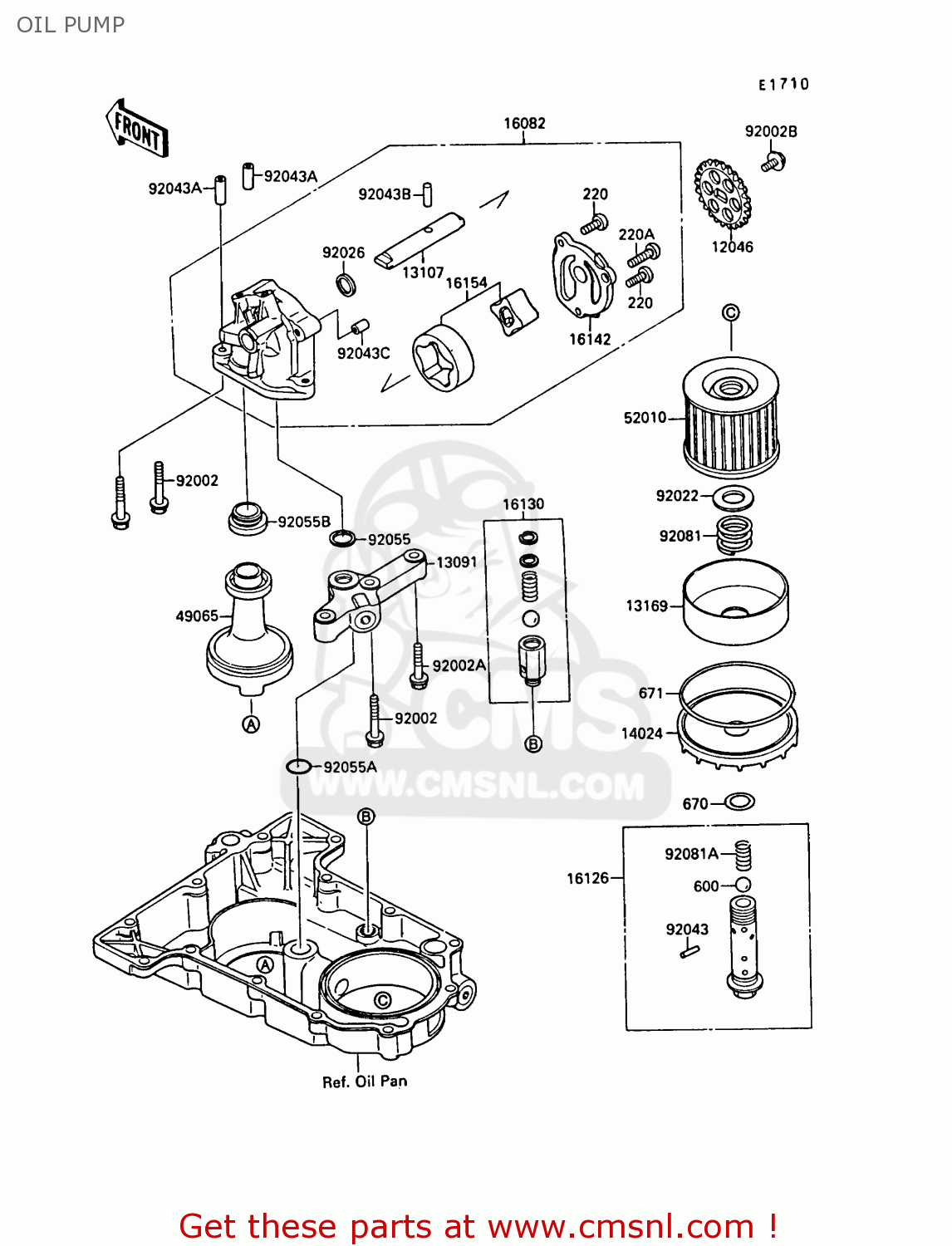

OIL PUMP

ref

part #

description

quantity

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

220A

220B0620
ref: 220A

SCREW-PAN HEAD,6X20

€ 2.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

671

671B2590
ref: 671

O RING,90MM

€ 6.50

12046

120461093
ref: 12046

SPROCKET,25T

€ 12.00

13091

130911439
ref: 13091

HOLDER,OIL PUMP

€ 26.00

13107

131071199
ref: 13107

SHAFT

€ 29.00

13169

131691110
ref: 13169

PLATE,OIL FILTER

€ 4.50

14024

16101004
ref: 14024

COVER,OIL FILTER

€ 31.00

16082

160821083
ref: 16082

PUMP-ASSY-OIL

€ 124.00

16126

161261108
ref: 16126

VALVE,OIL FILTER

€ 29.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

161421075
ref: 16142

COVER-PUMP

€ 25.00

16154

161541063
ref: 16154

ROTOR-PUMP

€ 40.00

49065

490651056
ref: 49065

FILTER-OIL

€ 18.00

52010

16099003
ref: 52010

FILTER,OIL

€ 6.50

92002

920021431
ref: 92002

BOLT,6X38

€ 3.50

92002A

920021797
ref: 92002A

BOLT,6X30

€ 3.50

92002B

920021859
ref: 92002B

BOLT,6X14

€ 3.00

92022

920221012
ref: 92022

WASHER,20.5X30X1

€ 3.00

92026

920261284
ref: 92026

SPACER

€ 3.50

92043

92043111
ref: 92043

SPRING PIN

€ 4.00

92043A

920431335
ref: 92043A

PIN,6.2X8X21

€ 2.00

92043B

920431353
ref: 92043B

PIN

€ 3.00

92043C

920431354
ref: 92043C

PIN

€ 2.50

92055

92055077
ref: 92055

O RING

€ 4.00

92055A

920551353
ref: 92055A

RING-O,16.3X3.5

€ 2.50

92055B

920551354
ref: 92055B

RING-O,OIL FILTER

€ 6.50

92081

920811018
ref: 92081

SPRING,OIL FILTER

€ 3.00

92081A

92081109
ref: 92081A

SPRING

€ 7.50

all assemblies
