GEAR CHANGE DRUM/SHIFT FORK(S)

ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST

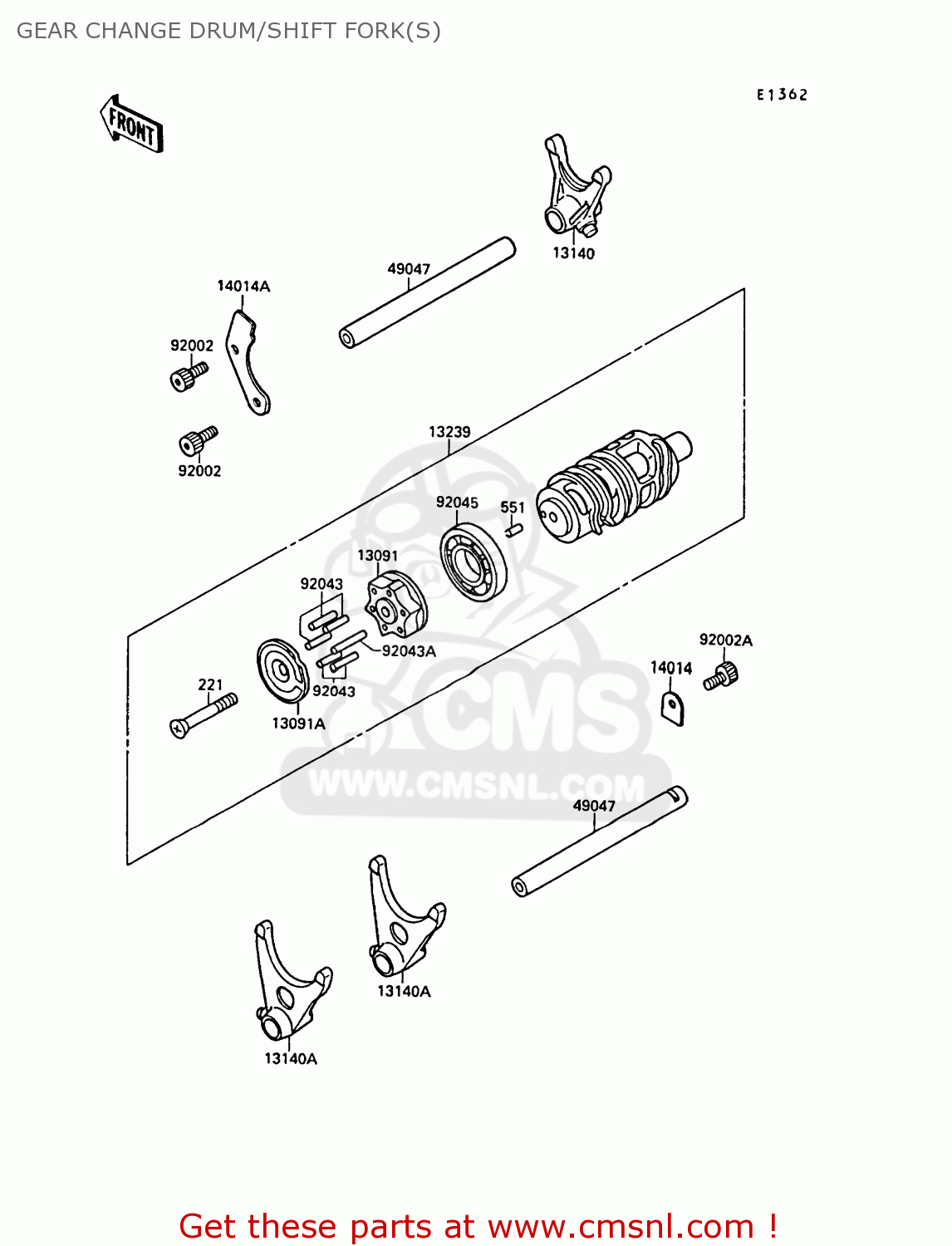

Gear change drum/shift fork(s) diagram ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

221

221B0640
ref: 221

SCREW-CSK-CROS

€ 2.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13091

130911275
ref: 13091

HOLDER,CHANGE DRUM

€ 26.50

13091A

130911334
ref: 13091A

HOLDER,NEUTRAL

€ 14.50

13140

131401153
ref: 13140

FORK-SHIFT,INPUT

€ 63.00

13140A

131401154
ref: 13140A

FORK-SHIFT,OUTPUT

€ 73.00

13239

132391134
ref: 13239

DRUM-ASSY-CHANGE

€ 153.00

14014

140141080
ref: 14014

PLATE-POSITION,ROD

€ 3.00

14014A

140141081
ref: 14014A

PLATE-POSITION,DRUM

€ 4.00

49047

490471070
ref: 49047

ROD-SHIFT

€ 18.00

92002

920021192
ref: 92002

BOLT,SOCKET,6X14

€ 3.00

92002A

920021796
ref: 92002A

BOLT,SOCKET,6X12

€ 3.00

92043

92042014
ref: 92043

PIN-GEAR CHANGE DRUM

€ 0.50

92043A

92042020
ref: 92043A

PIN-GEAR CHANGE DRUM

€ 3.00

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
