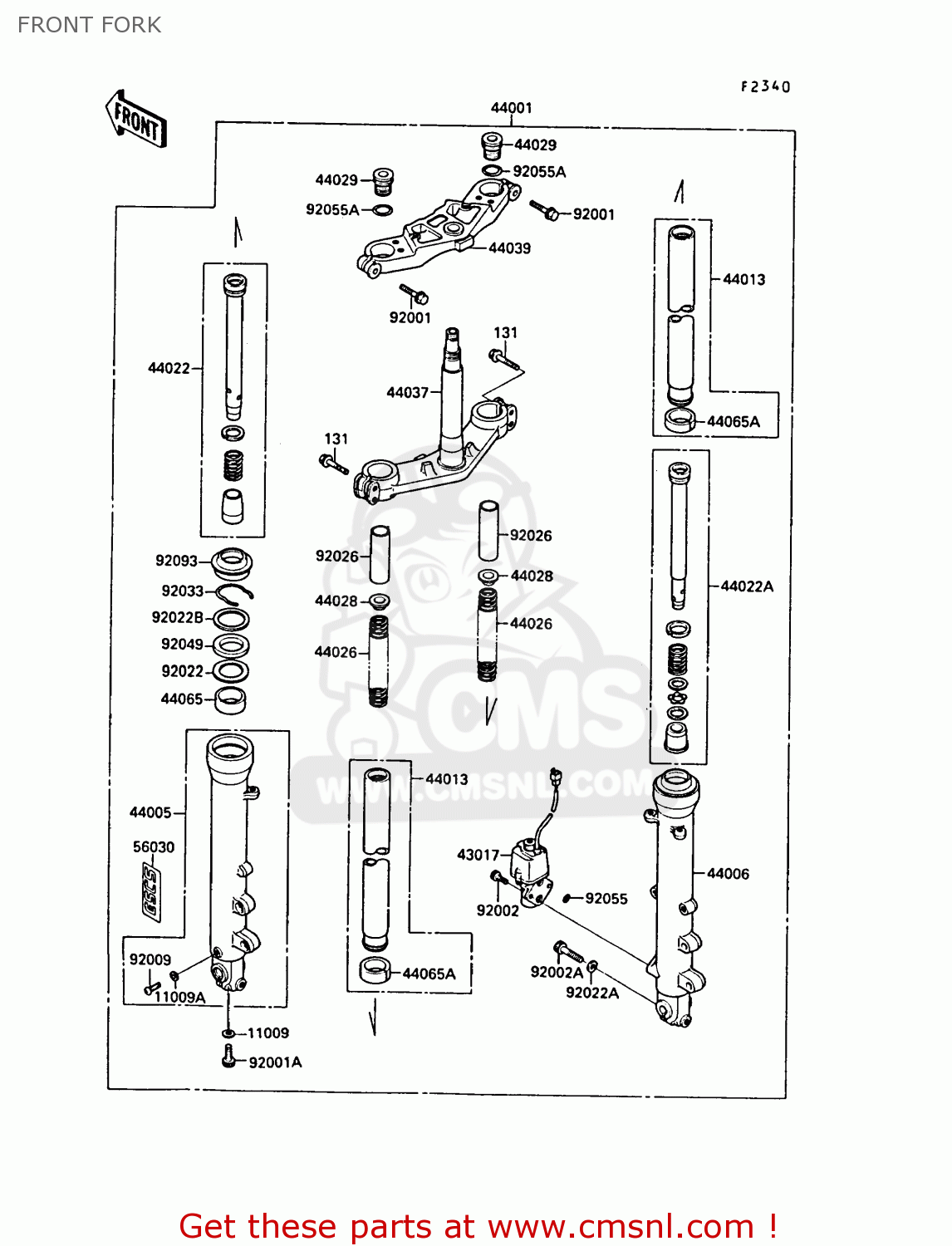

FRONT FORK

ref

part #

description

quantity

131

130G0845
ref: 131

BOLT,FLANGET,8X45

€ 1.00

11009

110091127
ref: 11009

GASKET,FORK CYLID BOL (NAS)

€ 3.00

11009A

44045002
ref: 11009A

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

43017

430171066
ref: 43017

VALVE-COMP-BRAKE

€ 308.00

44001

440011639
ref: 44001

FORK-FRONT

€ 1,313.50

44005

440051256
ref: 44005

PIPE-LEFT FORK OUTER

€ 156.00

44006

440061253
ref: 44006

PIPE-RIGHT FORK OUTER

€ 277.00

44013

440131258
ref: 44013

PIPE-FORK INNER

€ 150.00

44022

440221202
ref: 44022

CYLINDER-FORK,LH

€ 74.00

44022A

440221203
ref: 44022A

CYLINDER-FORK,RH

€ 85.00

44026

440261358
ref: 44026

SPRING-FRONT FORK

€ 52.00

44028

440281003
ref: 44028

GUIDE-FORK SPRING

€ 7.50

44029

440291126
ref: 44029

SEAT-FORK SPRING

€ 22.00

44037

440371206
ref: 44037

HOLDER-FORK UNDER

€ 221.00

44039

440391144
ref: 44039

HOLDER-FORK UPPER

€ 78.00

44065

440651012
ref: 44065

BUSHING,FORK OUT PIPE

€ 17.00

44065A

440651057
ref: 44065A

BUSHING,FRON.PIPE

€ 31.50

56030

560301095
ref: 56030

LABEL,ESCS MARK

€ 3.00

92001

920011188
ref: 92001

BOLT,8X40

€ 5.50

92001A

920011309
ref: 92001A

BOLT,FORK CYLINDER

€ 4.50

92002

920021166
ref: 92002

BOLT,SOCKET,6X16

€ 4.50

92002A

920021316
ref: 92002A

BOLT

€ 3.50

92009

920091324
ref: 92009

SCREW,4X8

€ 2.50

92022

920221262
ref: 92022

WASHER,FORK OUTER PIP

€ 5.50

92022A

920221598
ref: 92022A

WASHER

€ 4.50

92022B

920221599
ref: 92022B

WASHER,FORK OUTER PIP

€ 4.50

92026

920261288
ref: 92026

SPACER,FORK,L=100

€ 11.50

92033

920331047
ref: 92033

SNAP RING,FORK OUTER

€ 4.00

92049

920491178
ref: 92049

SEAL-OIL,FORK

€ 18.50

92055

920551379
ref: 92055

RING-O

€ 1.00

92055A

920551380
ref: 92055A

RING-O,FORK TOP

€ 2.50

92093

920931162
ref: 92093

SEAL,FORK

€ 18.00
