Genuine ZX Kawasaki Parts delivered quickly!


AIR CLEANER

ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST

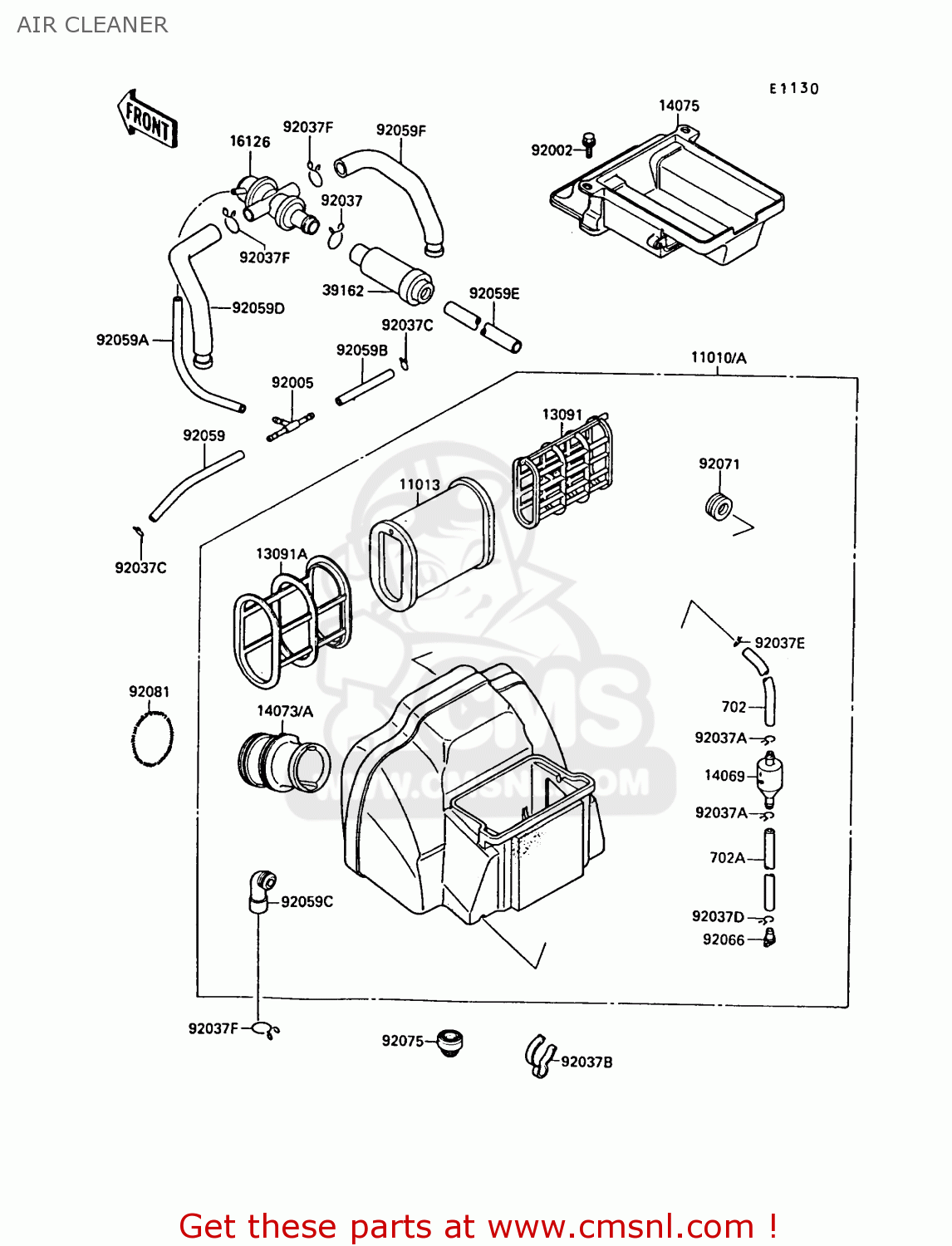

Air cleaner diagram ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST

AIR CLEANER ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST
AIR CLEANER ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST
AIR CLEANER ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11010
110101306
ref: 11010
ST
FILTER-ASSY-AIR
€ 264.00
11010A
110101307
ref: 11010A
AREUFGFRGRITNRSDSPUK
FILTER-ASSY-AIR
€ 264.00
11013
110131154
ref: 11013
ELEMENT-AIR FILTER
110131154
€ 17.00
13091
130911467
ref: 13091
HOLDER,ELEMENT
130911467
€ 11.00
13091A
130911468
ref: 13091A
HOLDER,ELEMENT
130911468
€ 10.00
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
14073
140731277
ref: 14073
DUCT,#1,#4
140731277
€ 46.00
14073A
140731278
ref: 14073A
DUCT,#2,#3
140731278
€ 45.50
14075
140751070
ref: 14075
CAP-ASSY,AIR FILTER
140751070
€ 46.50
16126
161261104
ref: 16126
ST
VALVE,AIR SWITCH
161261104
€ 176.00
39162
391621003
ref: 39162
ST
SILENCER-INTAKE
391621003
€ 59.00
92002
920021720
ref: 92002
BOLT,6X16
920021720
€ 2.50
92005
920051017
ref: 92005
ST
FITTING,TUBE
920051017
€ 6.50
92037
920371076
ref: 92037
ST
CLAMP,TUBE
920371076
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371552
ref: 92037B
CLAMP
920371552
€ 6.50
92037C
920371610
ref: 92037C
ST
CLAMP
920371610
€ 1.50
92037D
920371712
ref: 92037D
CLAMP
920371712
€ 3.00
92037E
920371972
ref: 92037E
CLAMP,TUBE
920371972
€ 2.50
92037F
92037213
ref: 92037F
AREUFGFRGRITNRSDSPUK
CLAMP, BREATHER TUBE
92037213
€ 2.50
92037F
92037213
ref: 92037F
ST
CLAMP, BREATHER TUBE
92037213
€ 2.50
92059
920591032
ref: 92059
ST
TUBE,4X9X190M/M
€ 12.50
92059A
920591043
ref: 92059A
ST
TUBE,TUBE 4X9X290
€ 7.00
92059B
920591058
ref: 92059B
ST
TUBE,4X9X100
€ 12.50
92059C
920591716
ref: 92059C
TUBE,BREATHER
920591716
€ 9.00
92059D
920591717
ref: 92059D
ST
TUBE,AIR SWITH-HEAD
€ 13.50
92059E
920591718
ref: 92059E
ST
TUBE,AIR SWITCH-AIR F
€ 9.50
92059F
920591765
ref: 92059F
ST
TUBE
920591765
€ 11.50
702
702A07200
ref: 702
TUBE-RUBBER
702A07200
€ 9.50
702A
702A07240
ref: 702A
TUBE-RUBBER
€ 9.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711028
ref: 92071
ST
GROMMET AIR FILTER
€ 4.50
92075
920751045
ref: 92075
DAMPER,STAND STOPPER
920751045
€ 5.00
92081
920811422
ref: 92081
SPRING,AIR FILTER DUC
920811422
€ 8.00
