Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR

ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST

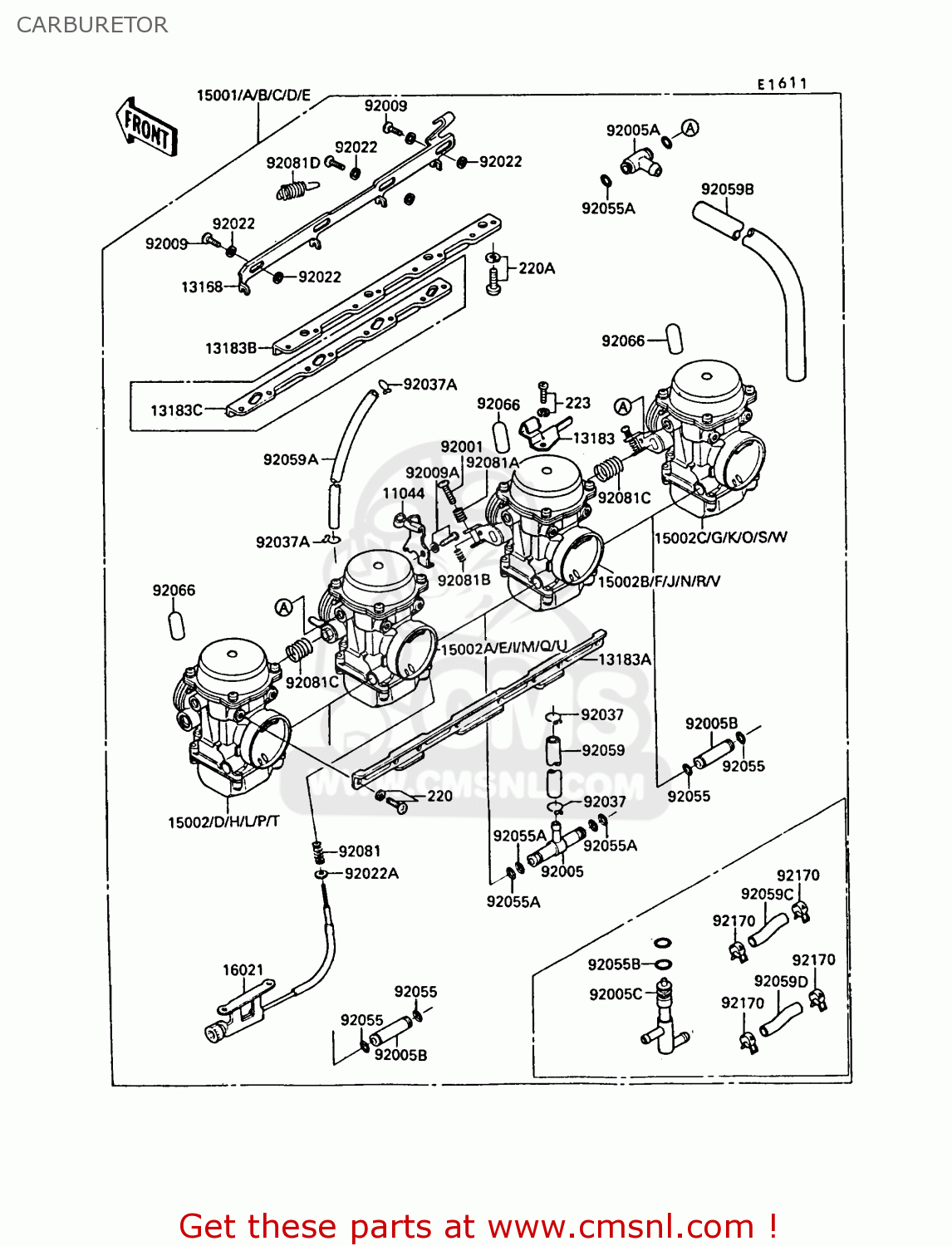

Carburetor diagram ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST

CARBURETOR ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST
CARBURETOR ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST
CARBURETOR ZX750F2 GPX750R 1988 EUROPE FR UK AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
110441546
€ 41.00
13168
131681349
ref: 13168
LEVER,STARTER
€ 78.00
13183
131831033
ref: 13183
PLATE,STARTER CABLE
131831033
€ 26.00
13183A
131831109
ref: 13183A
PLATE,CARBURETOR STAY
€ 33.00
13183B
131831110
ref: 13183B
PLATE,CARBURETOR STAY
€ 32.50
15001
150011321
ref: 15001
EUFRGRITNRSPUK
CARBURETOR-ASSY
€ 1,833.00
15001A
150011323
ref: 15001A
FGSD
CARBURETOR-ASSY
€ 1,434.50
15001C
150011337
ref: 15001C
AR
CARBURETOR-ASSY
€ 1,659.00
15001D
150011427
ref: 15001D
ST
CARBURETOR-ASSY
€ 1,443.50
15002
150021444
ref: 15002
EUFRGRITNRSPUK
CARBURETOR,LH,OUTSIDE
€ 559.50
15002A
150021445
ref: 15002A
EUFRGRITNRSPUK
CARBURETOR,LH,INSIDE
€ 443.00
15002B
150021446
ref: 15002B
EUFRGRITNRSPUK
CARBURETOR,RH,INSIDE
€ 443.00
15002C
150021447
ref: 15002C
EUFRGRITNRSPUK
CARBURETOR,RH,OUTSIDE
€ 443.00
15002D
150021456
ref: 15002D
FGSD
CARBURETOR,LH,OUTSIDE
€ 548.00
15002E
150021457
ref: 15002E
FGSD
CARBURETOR,LH,INSIDE
€ 443.00
15002F
150021458
ref: 15002F
FGSD
CARBURETOR,RH,INSIDE
€ 443.00
15002G
150021459
ref: 15002G
FGSD
CARBURETOR,RH,OUTSIDE
€ 443.00
15002L
150021464
ref: 15002L
AR
CARBURETOR,LH,OUTSIDE
€ 443.00
15002M
150021465
ref: 15002M
AR
CARBURETOR,LH,INSIDE
€ 443.00
15002N
150021466
ref: 15002N
AR
CARBURETOR,RH,INSIDE
€ 443.00
15002O
150021467
ref: 15002O
AR
CARBURETOR,RH,OUTSIDE
€ 443.00
15002P
150021606
ref: 15002P
ST
CARBURETOR,LH,OUTSIDE
€ 440.50
15002Q
150021607
ref: 15002Q
ST
CARBURETOR,LH,INSIDE
€ 440.50
15002R
150021608
ref: 15002R
ST
CARBURETOR,RH,INSIDE
€ 440.50
15002S
150021609
ref: 15002S
ST
CARBURETOR,RH,OUTSIDE
€ 440.50
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
160211101
€ 83.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051125
ref: 92005A
FITTING,T-TYPE
920051125
€ 18.00
92005B
920051157
ref: 92005B
FITTING
€ 25.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
220
220D0508
ref: 220
SCREW-PAN-CROS
220D0508
€ 0.50
220A
220D0514
ref: 220A
SCREW-PAN-CROS
€ 2.50
223
223D0410
ref: 223
SCREW-PAN-WS-CROS
223D0410
€ 2.50
92037A
920371194
ref: 92037A
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92059
920591492
ref: 92059
TUBE,7.3X12.5X260
€ 25.00
92059A
920591813
ref: 92059A
TUBE,5.3X10.5X150
€ 17.50
92059B
920591815
ref: 92059B
TUBE,AIR VENT
€ 19.00
92066
92068006
ref: 92066
ST
RUBBER PLUG
92068006
€ 2.50
92066
92068006
ref: 92066
AREUFGFRGRITNRSDSPUK
RUBBER PLUG
92068006
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
920811762
€ 14.00
