ZX750A3 1985 EUROPE UK FR GR IT NR SD

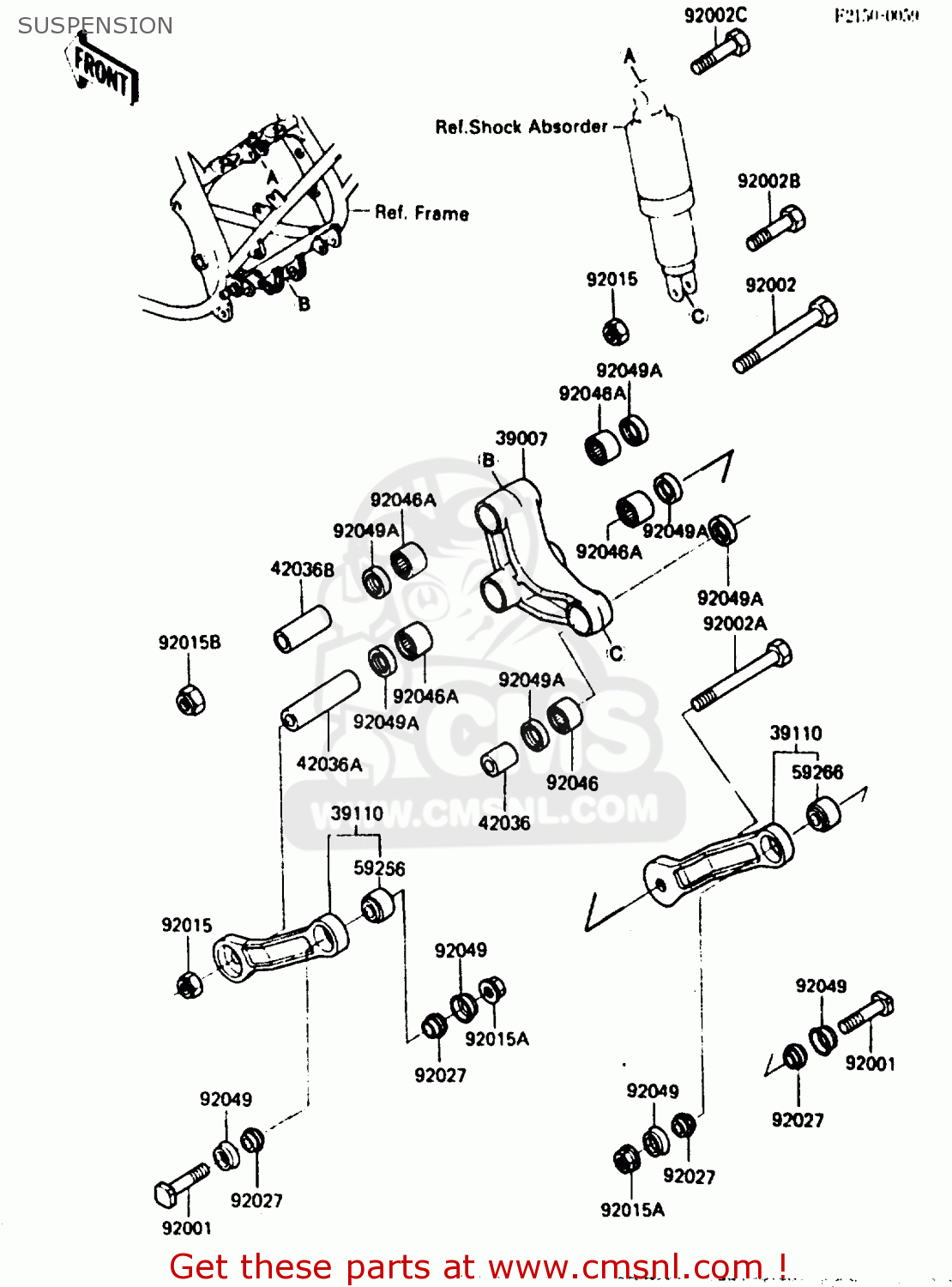

Suspension diagram ZX750A3 1985 EUROPE UK FR GR IT NR SD
SUSPENSION ZX750A3 1985 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
39007
390071026
ref: 39007
ARM-SUSP,UNI TRAK
€ 76.00
39110
391101017
ref: 39110
ROD-ASSY-TIE
€ 128.50
42036
420361072
ref: 42036
SLEEVE,12.1X20X26
€ 9.50
42036A
420361075
ref: 42036A
SLEEVE,12.1X20X84
€ 17.00
42036B
420361084
ref: 42036B
SLEEVE,14.1X20X55
€ 15.50
59266
592661051
ref: 59266
JOINT-BALL
€ 67.50
92001
920011908
ref: 92001
BOLT,10X45
€ 8.50
92002
920021128
ref: 92002
BOLT,14X108
€ 11.50
92002A
920021129
ref: 92002A
BOLT,12X106
€ 7.50
92002B
920021130
ref: 92002B
BOLT,12X55
€ 7.00
92002C
920021131
ref: 92002C
BOLT,10X50
€ 5.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
€ 4.50
92015A
920151392
ref: 92015A
NUT,10MM
€ 2.50
92015B
92019011
ref: 92015B
NUT,LOCK,14MM
€ 6.00
92027
920271392
ref: 92027
COLLAR,L=5.5
€ 3.50
92046
920461054
ref: 92046
BEARING-NEEDLE,HK2016
€ 20.00
92046A
920461061
ref: 92046A
BEARING-NEEDLE,FJ-202
€ 22.50
92049
920491083
ref: 92049
SEAL-OIL
€ 14.00
92049A
920491108
ref: 92049A
SEAL-OIL,GD20X26X4
€ 7.50
