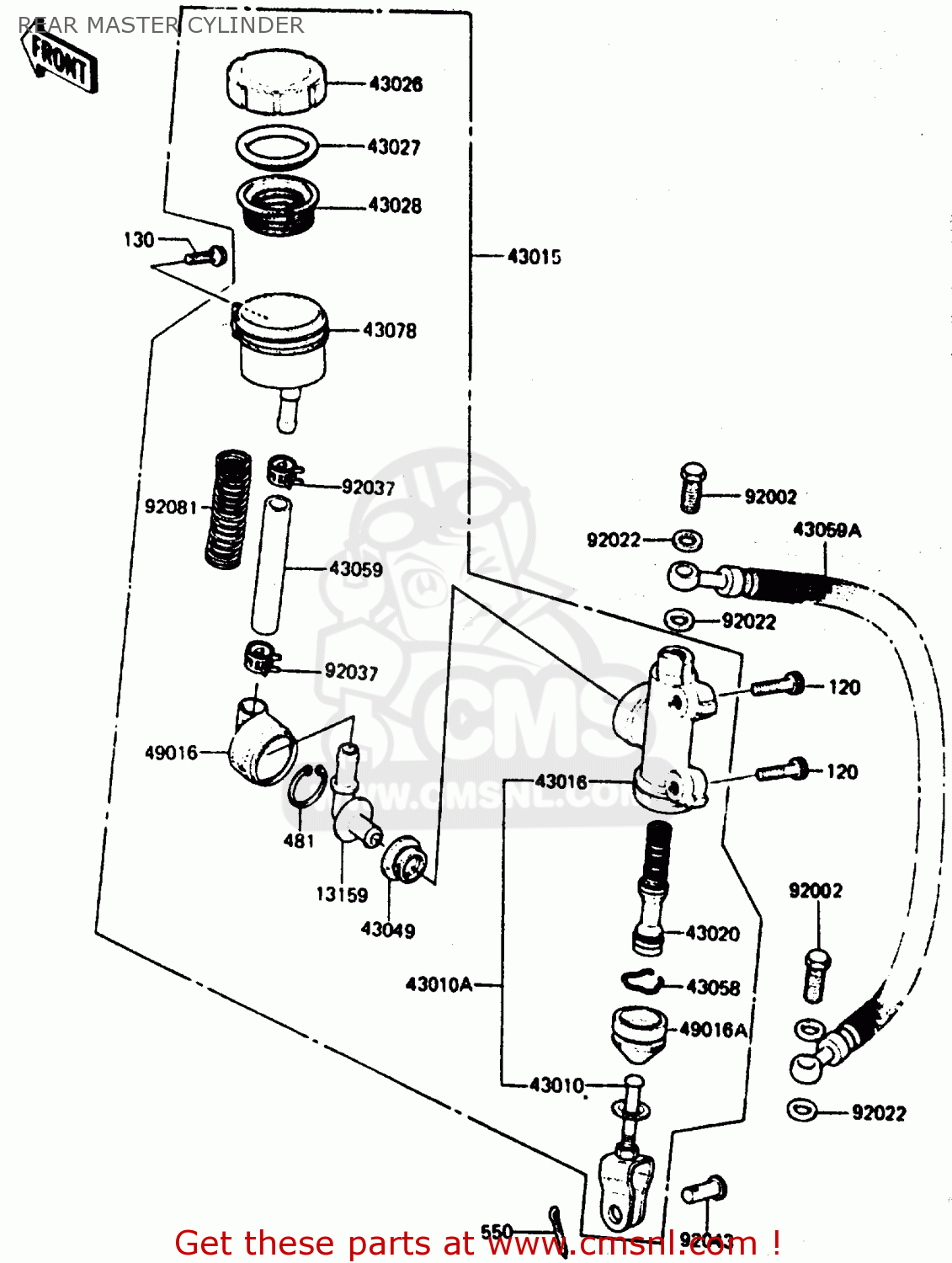

REAR MASTER CYLINDER

ref

part #

description

quantity

13159

131591009
ref: 13159

CONNECTOR

€ 10.00

43010

430101051
ref: 43010

ROD-ASSY-BRAKE,RR

€ 55.00

43010A

430105006
ref: 43010A

ROD-ASSY-BRAKE,RR

€ 163.00

43015

430151252
ref: 43015

CYLINDER-ASSY-MASTER,

€ 386.50

43016

430161101
ref: 43016

CYLINDER-MASTER,RR

€ 108.00

43020

430201036
ref: 43020

PISTON-COMP-BRAKE

€ 54.00

43026

430261010
ref: 43026

CAP,OIL CUP

€ 22.50

43027

430271005
ref: 43027

PLATE-DIAPHRAGM

€ 4.50

43028

430281016
ref: 43028

DIAPHRAGM

€ 15.00

43049

430491008
ref: 43049

PACKING (NAS)

€ 9.00

43058

43058004
ref: 43058

RING,ROD STOPPER

€ 4.50

43059

430591140
ref: 43059

HOSE-BRAKE,L=116

€ 8.00

43059A

430591165
ref: 43059A

HOSE-BRAKE,L=630

€ 72.50

43078

430781009
ref: 43078

RESERVOIR

€ 20.50

49016

490161034
ref: 49016

COVER-SEAL,MASTER CYL

€ 12.50

49016A

490161048
ref: 49016A

COVER-SEAL,BRAKE PIST

€ 9.50

92002

920021888
ref: 92002

BOLT,OIL,L=23

€ 3.50

92022

43067001
ref: 92022

WASHER,10.5X15X1.5

€ 1.50

92037

920371391
ref: 92037

CLAMP,BRAKE HOSE

€ 6.50

92043

920431013
ref: 92043

PIN

€ 6.50

92081

920811335
ref: 92081

SPRING,HOSE PROTECTER

€ 9.50

120

120P0835
ref: 120

BOLT-SOCKET,8X35

€ 2.00

130

130B0620
ref: 130

BOLT,HEX HEAD,6X20

€ 2.50

481

481J2500
ref: 481

CIRCLIP-TYPE-C,25MM

€ 3.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

all assemblies
