IGNITION SWITCH
ZX750A3 1985 EUROPE UK FR GR IT NR SD

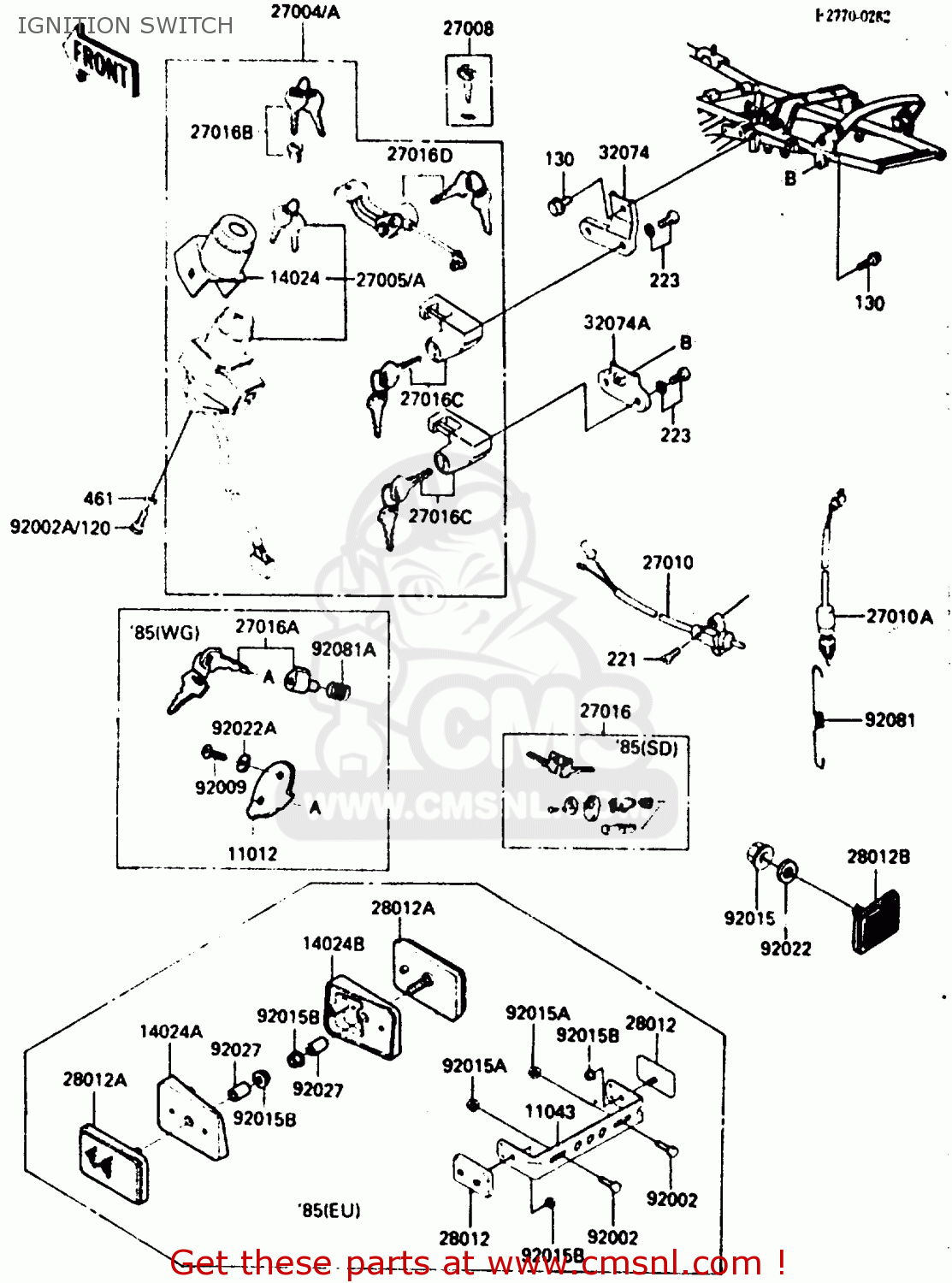

Ignition switch diagram ZX750A3 1985 EUROPE UK FR GR IT NR SD
IGNITION SWITCH ZX750A3 1985 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
WG
CAP,STEERING LOCK
€ 4.50
11043
110431619
ref: 11043
EU, (OPTION)
BRACKET,REFLECTOR,RR
€ 9.00
14024
140241332
ref: 14024
EU, FR, GR, IT, NR,
COVER,IGNITION SWITCH
€ 9.00
14024A
140251886
ref: 14024A
EU, (OPTION)
COVER,REFLECTOR,FR
€ 9.50
14024B
140251887
ref: 14024B
EU, (OPTION)
COVER,REFLECTOR,FR
€ 9.50
27004
270045212
ref: 27004
EU, FR, GR, IT, NR,
SWITCH-ASSY
€ 222.50
27004A
270045213
ref: 27004A
SD, WG
SWITCH-ASSY
€ 223.50
27005
270055036
ref: 27005
EU, FR, GR, IT, NR,
SWITCH-ASSY-IGNITION
€ 235.50
27005A
270055037
ref: 27005A
SD, WG
SWITCH-ASSY-IGNITION
€ 154.00
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 13.50
27010
270101065
ref: 27010
SWITCH,SIDE STAND
€ 53.00
27010A
270101093
ref: 27010A
SWITCH,BRAKE LAMP
€ 20.00
27016
ref: 27016
SD, (LOCAL PROCUREME
27016A
ref: 27016A
WG, (LOCAL PROCUREME
27016B
270165068
ref: 27016B
LOCK-ASSY,FUEL TANK
€ 71.00
27016C
270165070
ref: 27016C
LOCK-ASSY,HELMET
€ 43.00
27016D
270165071
ref: 27016D
LOCK-ASSY,SEAT
€ 66.50
28012
280121003
ref: 28012
EU, (OPTION)
REFLECTOR,REFLEX
€ 15.00
28012A
280121052
ref: 28012A
EU, (OPTION)
REFLECTOR-REFLEX,FR
€ 17.50
28012B
280121055
ref: 28012B
REFLECTOR-REFLEX,RR
€ 12.50
32074
320741058
ref: 32074
BRACKET-LOCK,HELMET,F
€ 7.50
32074A
320741059
ref: 32074A
BRACKET-LOCK,HELMET,R
€ 7.50
92002
920021132
ref: 92002
EU, (OPTION)
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
NR
BOLT
€ 1.50
92009
92008007
ref: 92009
WG
SCREW-TAPPING
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151193
ref: 92015A
EU, (OPTION)
NUT,FLANGED,6MM
€ 0.50
92015B
920151259
ref: 92015B
EU, (OPTION)
NUT,FLANGED,5MM
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
92097003
ref: 92022A
WG
WASHER
€ 2.50
92027
920271789
ref: 92027
EU, (OPTION)
COLLAR,5X8X14.5
€ 3.00
92081
27011021
ref: 92081
SPRING,BRAKE LAMP SW
€ 15.50
92081A
27032001
ref: 92081A
WG
SPRING-STEERING LOCK
€ 3.50
120
120T0616
ref: 120
EU, FR, GR, IT, SD,
BOLT-SOCKET
€ 1.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
221
221C0520
ref: 221
SCREW-CSK-CROS
€ 2.50
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
