FRAME FITTING
ZX750A3 1985 EUROPE UK FR GR IT NR SD

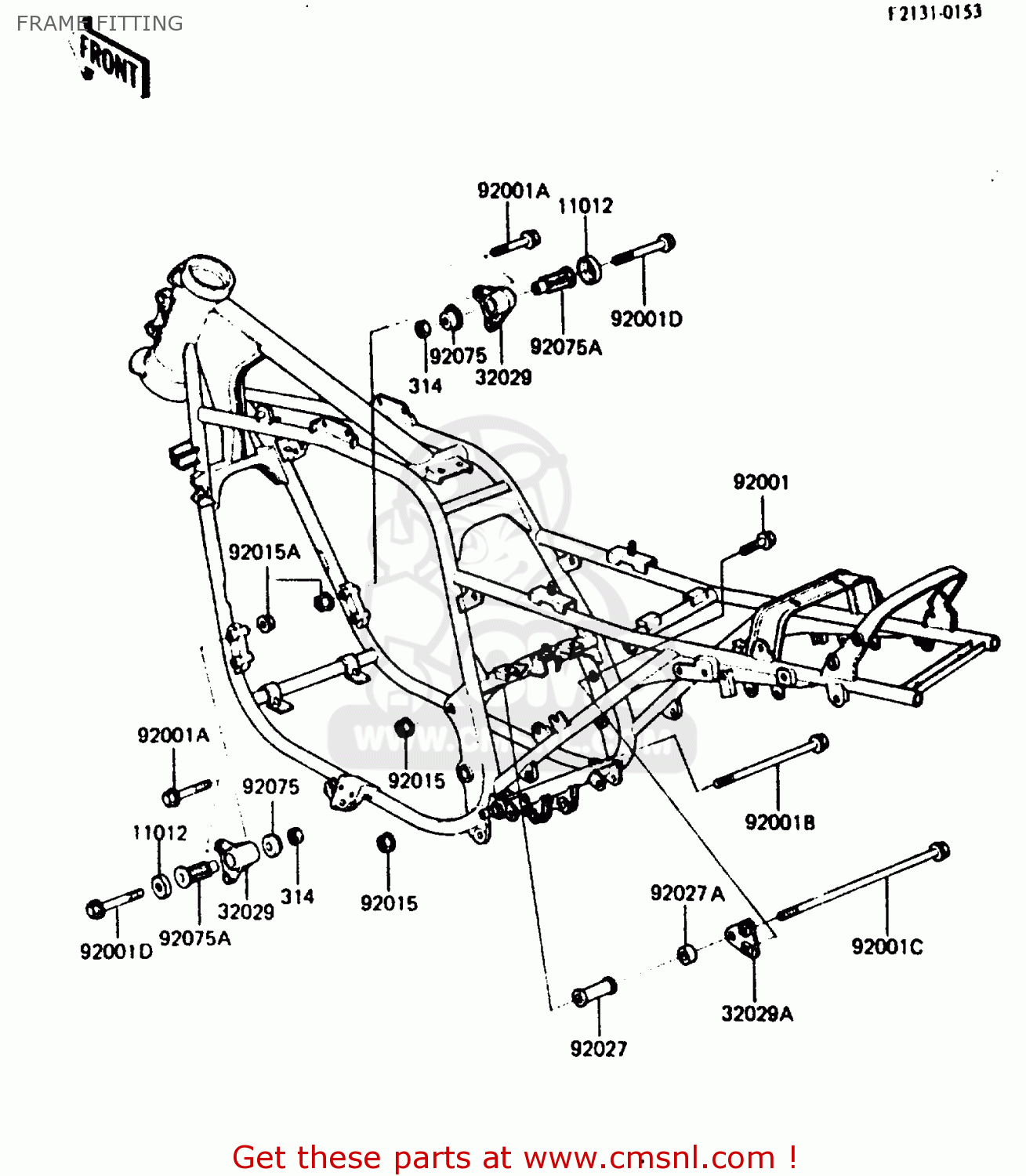

Frame fitting diagram ZX750A3 1985 EUROPE UK FR GR IT NR SD
FRAME FITTING ZX750A3 1985 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11012
110121228
ref: 11012
CAP,ENGINE BRACKET
€ 4.50
32029
320291254
ref: 32029
BRACKET-ENGINE,FR
€ 23.50
32029A
320291345
ref: 32029A
BRACKET-ENGINE,RR
€ 9.50
92001
920011613
ref: 92001
BOLT,FLANGED,8X45
€ 3.00
92001A
920011615
ref: 92001A
BOLT,FLANGED,8X60
€ 4.00
92001B
920011621
ref: 92001B
BOLT,FLANGED,10X180
€ 15.00
92001C
920011749
ref: 92001C
BOLT,FLANGED,10X125,B
€ 13.50
92001D
920011780
ref: 92001D
BOLT,FLANGED,10X115,B
€ 10.00
92015
920151180
ref: 92015
NUT,FLANGED,10MM,BLAC
€ 2.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92027
920271570
ref: 92027
COLLAR,L=56.8
€ 12.50
92027A
920271571
ref: 92027A
COLLAR,11X26X12.3
€ 6.00
92075
920751274
ref: 92075
DAMPER,ENG MOUNT,SIDE
€ 11.00
92075A
920751377
ref: 92075A
DAMPER,ENGINE BRACKET
€ 19.50
314
314C1000
ref: 314
NUT-HEX-FINE,10MM,BLA
€ 2.50
