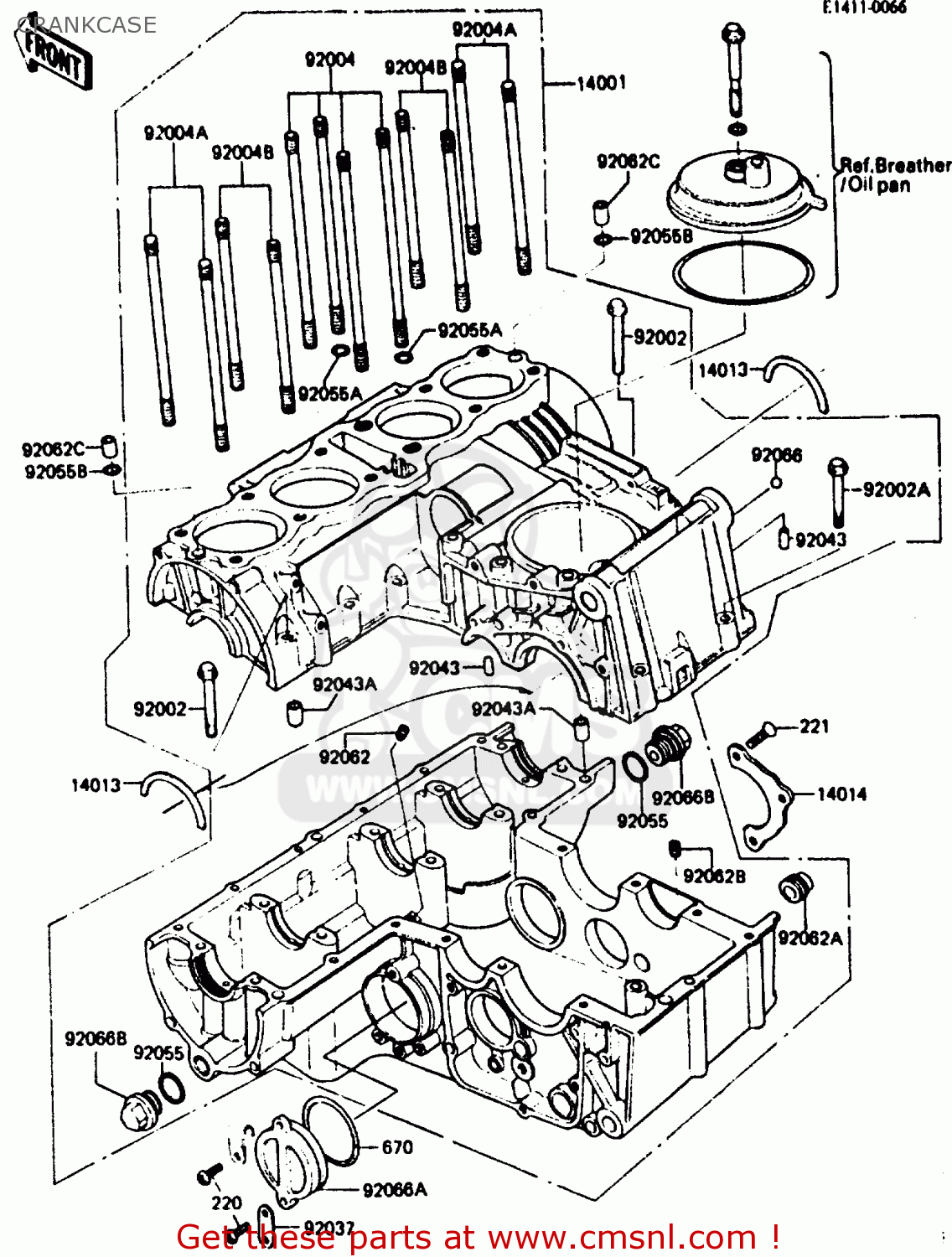

CRANKCASE

ref

part #

description

quantity

14001

140015120
ref: 14001

SET-CRANKCASE,F.BLACK

€ 1,946.50

14013

14013004
ref: 14013

RING-BEARING SETTING

€ 7.00

14014

140141007
ref: 14014

PLATE-POSITION,SECOND

€ 7.00

92002

920021079
ref: 92002

BOLT,6X50

€ 4.00

92002A

920021080
ref: 92002A

BOLT,6X40

€ 3.50

92004

92004062
ref: 92004

STUD, 10X153

€ 13.50

92004A

920041004
ref: 92004A

STUD, 10X133

€ 11.50

92004B

920041007
ref: 92004B

STUD, 10X116

€ 6.00

92037

920371575
ref: 92037

CLAMP

€ 2.00

92043

92042016
ref: 92043

PIN,DOWEL,6X16

€ 3.50

92043A

920431037
ref: 92043A

PIN,DOWEL,10X8.2X14

€ 0.50

92055

92055097
ref: 92055

'O' RING,PLUG

€ 5.50

92055A

92055099
ref: 92055A

O RING, 8.8MM

€ 3.00

92055B

92055101
ref: 92055B

O RING, 9.8MM

€ 1.00

92062

92062011
ref: 92062

NOZZLE,OIL

€ 5.50

92062A

92062014
ref: 92062A

NOZZLE

€ 6.00

92062B

92062015
ref: 92062B

NOZZLE

€ 4.00

92062C

92062016
ref: 92062C

NOZZLE

€ 3.50

92066

92066057
ref: 92066

PLUG,RUBBER BALL,6.7

€ 3.00

92066A

920661019
ref: 92066A

PLUG,SECONDARY SHAFT,

€ 12.50

92066B

920661096
ref: 92066B

PLUG,MAIN GALLARY,18X

€ 7.50

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

221

221B0620
ref: 221

SCREW-CNTSNK HD,6X20

€ 0.50

670

670B3046
ref: 670

O RING,46MM

€ 3.50

all assemblies
