FUEL TANK
ZX750A1 1983 EUROPE UK FR IT NR SD ST

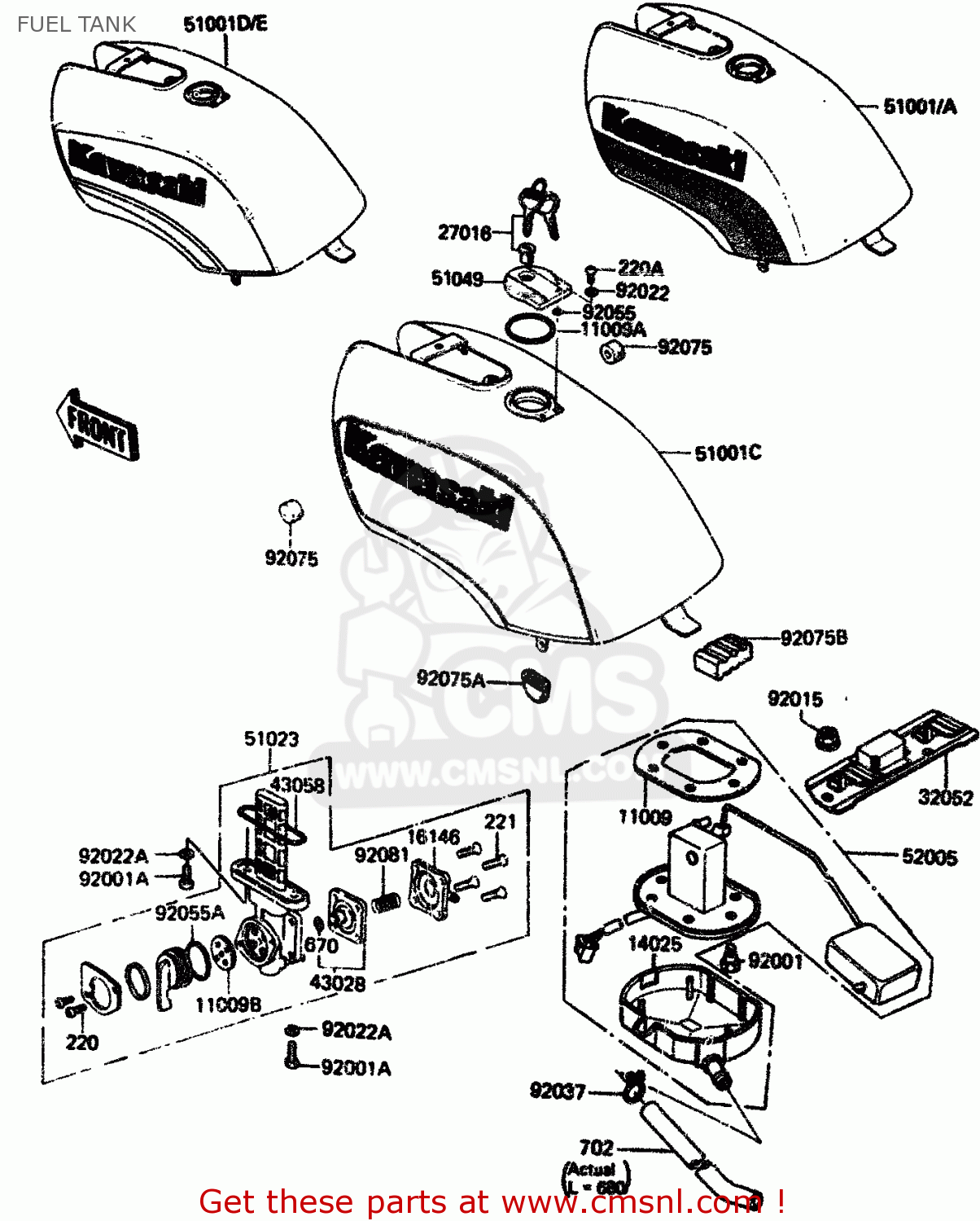

Fuel tank diagram ZX750A1 1983 EUROPE UK FR IT NR SD ST
FUEL TANK ZX750A1 1983 EUROPE UK FR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091037
ref: 11009
GASKET (NAS)
€ 14.00
11009A
110091051
ref: 11009A
GASKET,FUEL TANK CAP (NAS)
€ 7.00
11009B
110091194
ref: 11009B
GASKET,TAP VALVE (NAS)
€ 6.50
14025
140251400
ref: 14025
COVER,FUEL GAUGE
€ 22.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 14.00
27016
270165068
ref: 27016
LOCK-ASSY,FUEL TANK
€ 71.00
32052
320521103
ref: 32052
BRACKET-TANK,RR
€ 54.50
43028
430281015
ref: 43028
DIAPHRAGM,TAP
€ 14.50
43053
51039010
ref: 43053
RING,TAP FLANGED
€ 4.50
51001
510015314B1
ref: 51001
TANK-COMP-FUEL,F.RED
€ 657.00
51001A
510015321F1
ref: 51001A
EU, FR, IT, NR, ED,
TANK-COMP-FUEL,P.WHIT
€ 776.50
51023
510231031
ref: 51023
TAP ASSY,FUEL
€ 107.00
51049
510491009
ref: 51049
CAP-TANK,FUEL
€ 120.00
52005
520051036
ref: 52005
GAUGE,FUEL
€ 72.50
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92001A
920011091
ref: 92001A
BOLT,6X20,FUEL TAP
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221038
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551027
ref: 92055A
RING-O,TAP LEVER
€ 3.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751445
ref: 92075A
DAMPER
€ 5.00
92075B
920751447
ref: 92075B
DAMPER,FUEL TANK,RR
€ 6.00
92081
920811171
ref: 92081
SPRING,TAP
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07680
ref: 702
TUBE-RUBBER
€ 9.50
