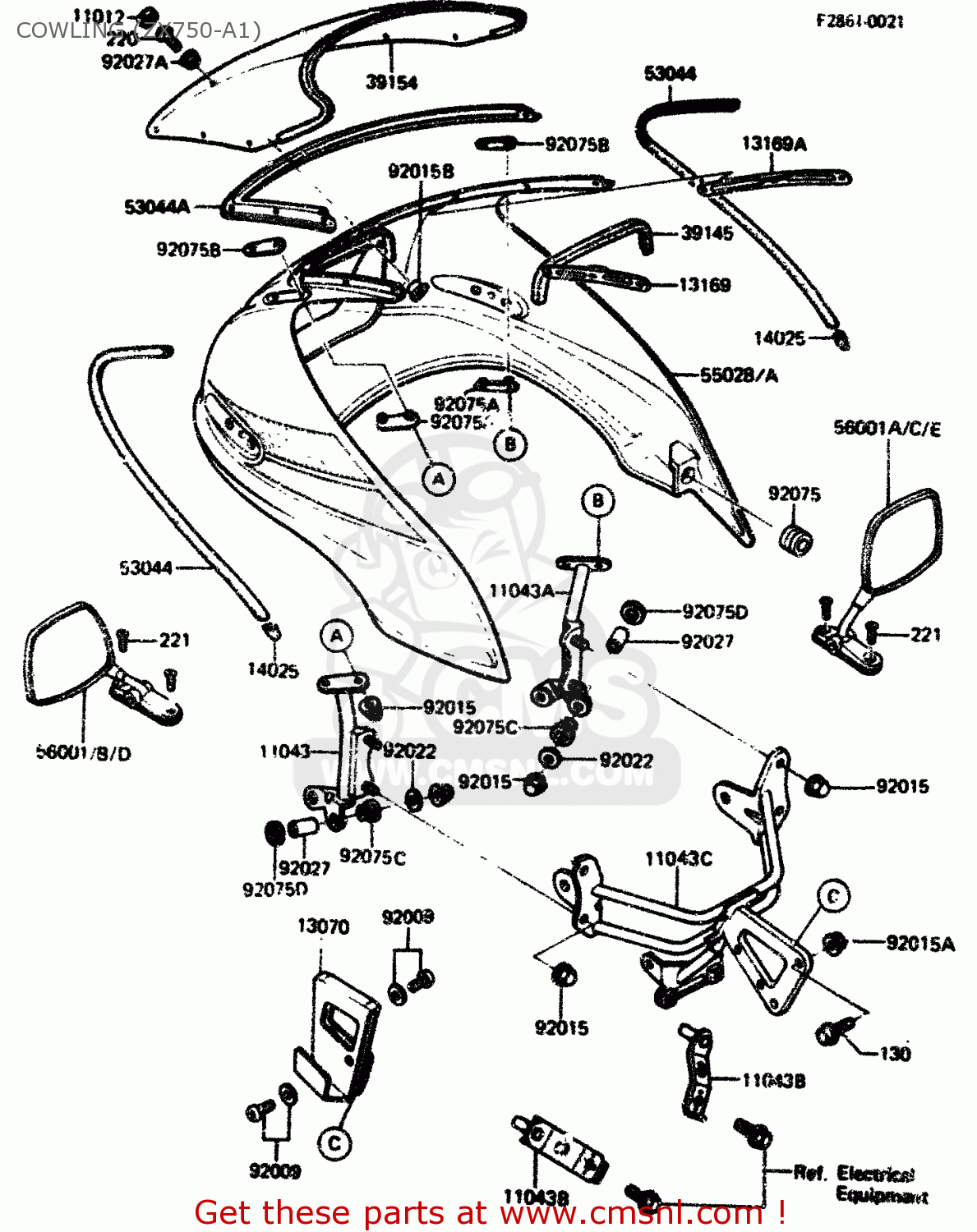

COWLING (ZX750-A1)

ref

part #

description

quantity

11012

110121309
ref: 11012

CAP,COWLING

€ 4.00

11043

110431069
ref: 11043

BRACKET-B,MIRROR,LH

€ 58.50

11043A

110431070
ref: 11043A

BRACKET-B,MIRROR,RH

€ 58.50

11043B

110431071
ref: 11043B

BRACKET-B,COWLING,RR

€ 26.50

11043C

110431252
ref: 11043C

BRACKET-B,COWLING BOD

€ 212.50

13070

130701101
ref: 13070

GUIDE,HARNESS&CABLE

€ 30.50

13169

131691711
ref: 13169

PLATE,COWLING,LH

€ 12.50

13169A

131691712
ref: 13169A

PLATE,COWLING,RH

€ 12.50

14025

140251756
ref: 14025

COVER,TRIM END

€ 4.50

39145

391451051
ref: 39145

TRIM-SEAL,HEAD LAMP

€ 15.50

39154

391541014
ref: 39154

WINDSHIELD

€ 484.50

53044

530441110
ref: 53044

TRIM,COWLING

€ 49.00

53044A

530441122
ref: 53044A

TRIM,WINDSHIELD

€ 35.50

55028

550285017B1
ref: 55028

COWLING,F.RED

€ 601.50

55028A

550285018F1
ref: 55028A
EU, FR, IT, NR, SD,

COWLING,P.WHITE

€ 699.50

56001

560011142
ref: 56001
FR, UK

MIRROR-ASSY,LH

€ 58.50

56001A

560011143
ref: 56001A
FR, UK

MIRROR-ASSY,RH

€ 61.50

56001B

560011144
ref: 56001B
EU, NR, SD, ST, WG

MIRROR-ASSY,LH

€ 58.50

56001C

560011143
ref: 56001C
EU, NR, SD, ST, WG

MIRROR-ASSY,RH

€ 61.50

56001D

560011146
ref: 56001D
IT

MIRROR-ASSY,LH

€ 61.50

56001E

560011147
ref: 56001E
IT

MIRROR-ASSY,RH

€ 58.50

92009

920091270
ref: 92009

SCREW,6X10

€ 2.00

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

92015B

920151306
ref: 92015B

NUT,FLANGED,5MM,BLACK

€ 2.50

92022

92022228
ref: 92022

WASHER-PLAIN,7MM

€ 2.50

92027

920271400
ref: 92027

COLLAR,6.8X10X21

€ 3.50

92027A

920271596
ref: 92027A

COLLAR,COWLING,ID=5.5

€ 5.50

92075

920751057
ref: 92075

DAMPER

€ 3.00

92075A

920751492
ref: 92075A

DAMPER,MIRROR

€ 5.00

92075B

920751500
ref: 92075B

DAMPER,MIRROR

€ 5.50

92075C

92075174
ref: 92075C

DAMPER,MALE

€ 3.00

92075D

92075175
ref: 92075D

DAMPER,FEMALE

€ 2.50

130

130C0825
ref: 130

BOLT-FLANGED,8X25

€ 2.00

220

220C0514A
ref: 220

SCREW-PAN-CROS,5X14

€ 1.00

221

221C0625
ref: 221

SCREW-CSK-CROS,6X25,B

€ 3.00

all assemblies
