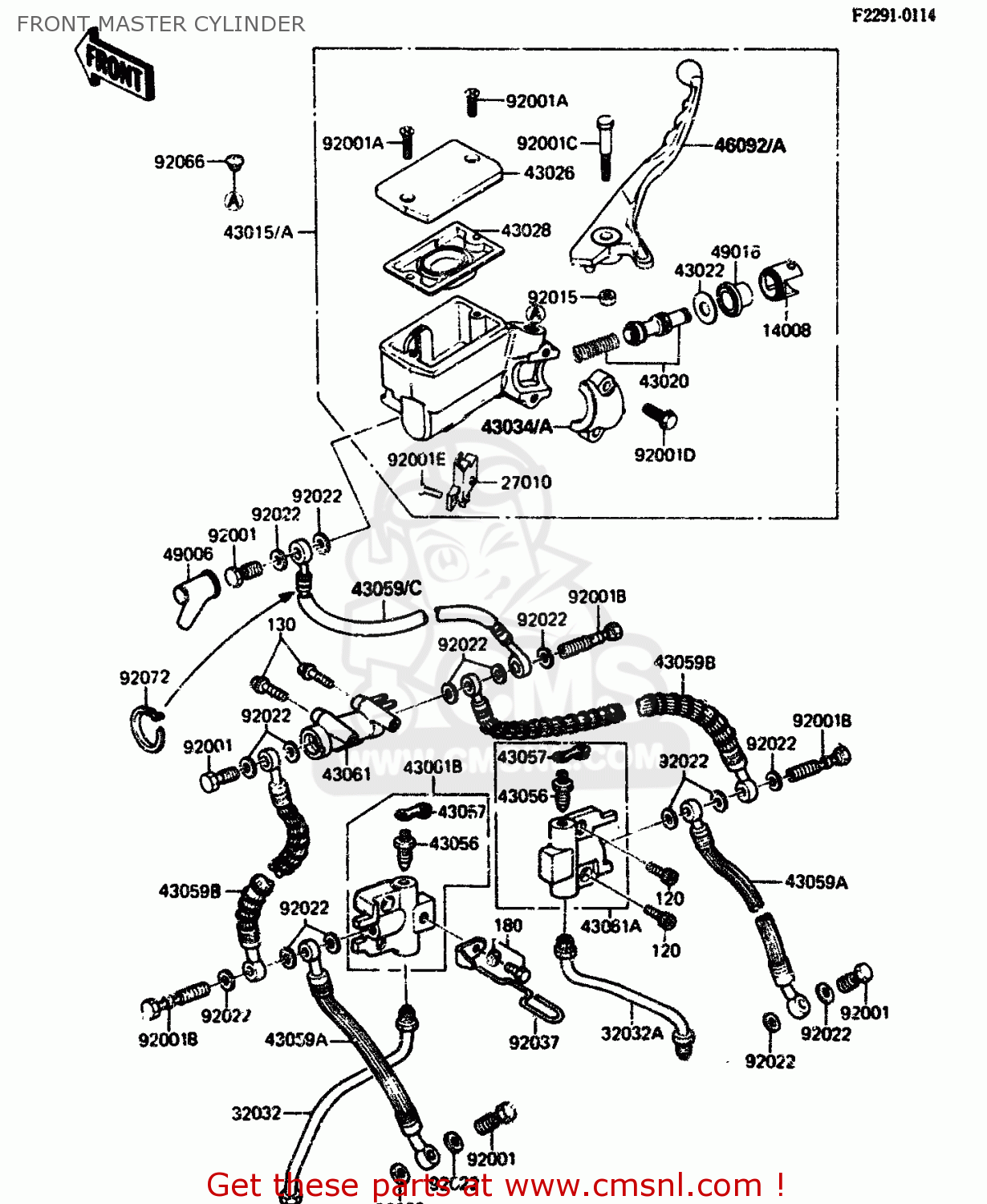

FRONT MASTER CYLINDER

ref

part #

description

quantity

14008

140081035
ref: 14008

LINER,PISTON

€ 8.00

27010

270101056
ref: 27010

SWITCH,BRAKE

€ 24.50

32032

320331061
ref: 32032

PIPE,BRAKE,FR,LH

€ 15.00

32032A

320331062
ref: 32032A

PIPE,BRAKE,FR,RH

€ 15.00

43015A

430151090
ref: 43015A

CYLINDER-ASSY-MASTER

€ 277.00

43020

430201028
ref: 43020

PISTON-COMP-BRAKE,FR

€ 59.00

43022

430221009
ref: 43022

STOPPER-BRAKE,PISTON

€ 3.50

43026

430261018
ref: 43026

CAP-BRAKE,FR

€ 26.50

43028

430281029
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 17.50

43034

430341001
ref: 43034

HOLDER-BRAKE,MASTER C

€ 20.50

43056

430561051
ref: 43056

BREATHER-BRAKE

€ 10.00

43057

430571001
ref: 43057

CAP-BREATHER

€ 3.00

43059

430591163
ref: 43059

HOSE-BRAKE,FR,L=310,W

€ 62.00

43059A

430591164
ref: 43059A

HOSE-BRAKE,FR,L=186

€ 61.50

43059B

430591167
ref: 43059B

HOSE-BRAKE,L=325

€ 62.00

43061

430611004
ref: 43061

JOINT-BRAKE

€ 51.50

43061A

430611005
ref: 43061A

JOINT-BRAKE,FR,RH

€ 36.50

43061B

430611006
ref: 43061B

JOINT-BRAKE,FR,LH

€ 38.00

46092A

460921027
ref: 46092A

LEVER-GRIP,FRONT BRAK

€ 22.00

49006

490061041
ref: 49006

BOOT,DUST

€ 7.50

49016

490161041
ref: 49016

COVER-SEAL,BRAKE PIST

€ 8.50

92001

43066001
ref: 92001

BOLT-BRAKE HOSE OIL

€ 3.50

92001A

920011055
ref: 92001A

SCREW,COUNTERSUNK HED

€ 3.50

92001B

920011203
ref: 92001B

BOLT,OIL

€ 8.50

92001C

920011512
ref: 92001C

BOLT,6X37.3,BLACK

€ 5.50

92001D

920011513
ref: 92001D

BOLT,BOLT,6X25,W/WASH

€ 3.00

92001E

920011532
ref: 92001E

SCREW-COUNTERSUNK

€ 2.50

92015

920151171
ref: 92015

NUT,LOCK,6MM,BLACK

€ 2.00

92022

43067001
ref: 92022

WASHER,10.5X15X1.5

€ 1.50

92037

920371393
ref: 92037

CLAMP,BRAKE HOSE,LH,B

€ 10.00

92066

920661077
ref: 92066

CAP,REAR VIEW MIRROR

€ 3.00

92072

92072056
ref: 92072

BAND,RUBBER

€ 3.00

120

120S0614
ref: 120

BOLT-SOCKET,6X14,BLAC

€ 2.50

130

130G0660
ref: 130

BOLT-FLANGED,6X60

€ 3.00

180

180C0612
ref: 180

BOLT-UPSET-WS

€ 2.50
