FRONT FORK
ZX750A1 1983 EUROPE UK FR IT NR SD ST

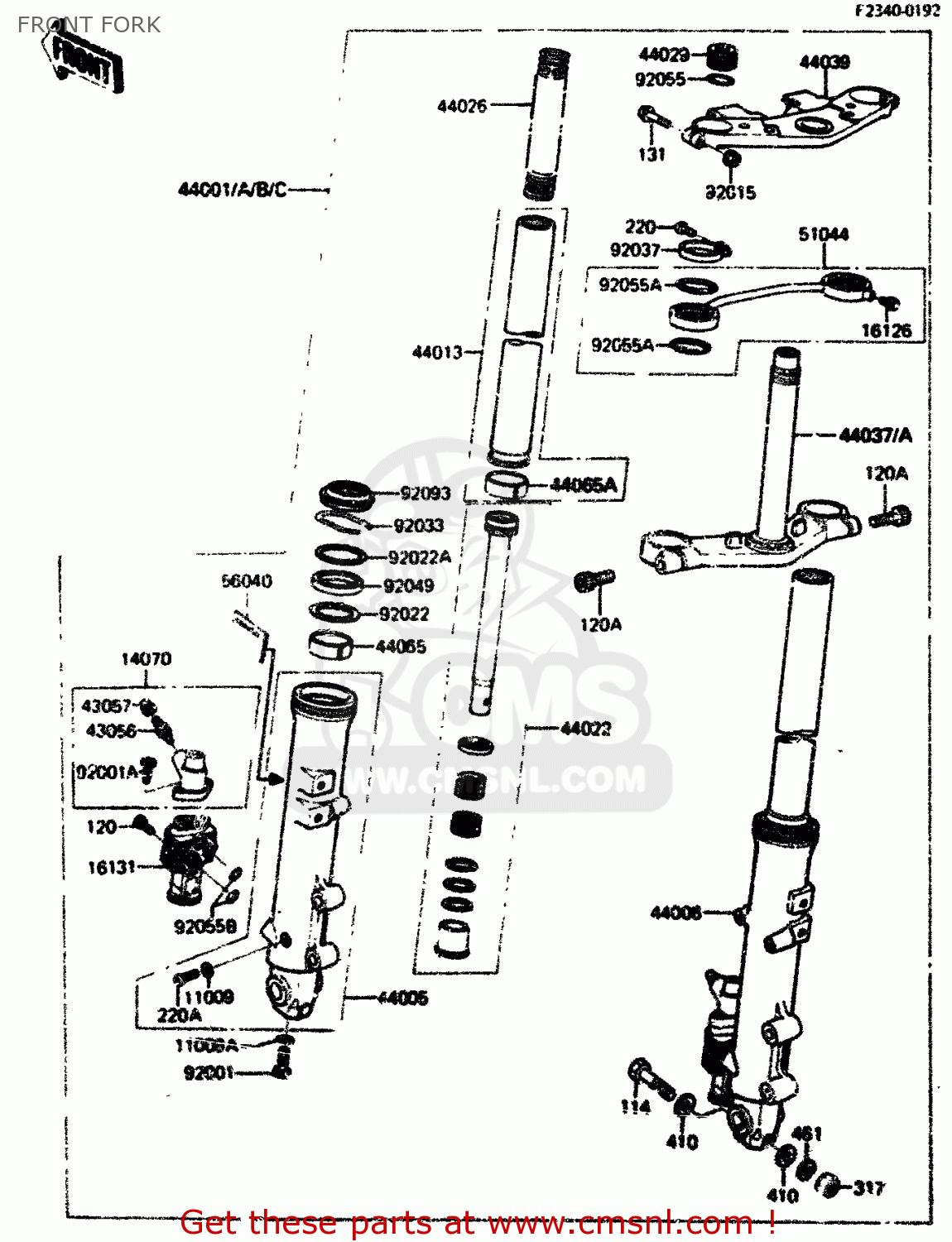

Front fork diagram ZX750A1 1983 EUROPE UK FR IT NR SD ST
FRONT FORK ZX750A1 1983 EUROPE UK FR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
14070
140701051
ref: 14070
BODY-BREATHER,FORK,AN
€ 157.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16131
161311051
ref: 16131
BODY-VALVE,FORK,ANTI-
€ 161.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
44001
440011460
ref: 44001
EU, FR, IT, NR, ST,
FORK-FRONT
€ 1,702.50
44001A
440011462
ref: 44001A
SD, WG
FORK-FRONT
€ 925.00
44005
440051131
ref: 44005
PIPE-LEFT FORK OUTER
€ 285.00
44006
440061131
ref: 44006
PIPE-RIGHT FORK OUTER
€ 230.00
44013
440131202
ref: 44013
PIPE-FORK INNER
€ 178.50
44022
440221153
ref: 44022
CYLINDER-FORK
€ 62.50
44026
440261253
ref: 44026
SPRING-FRONT FORK
€ 51.00
44029
440291035
ref: 44029
SEAT-FORK SPRING
€ 16.50
44037
440371111
ref: 44037
EU, FR, IT, NR, ST,
HOLDER-FORK UNDER
€ 175.50
44037A
440371116
ref: 44037A
ID, WG
HOLDER-FORK UNDER
€ 206.00
44039
440391073
ref: 44039
HOLDER-FORK UPPER
€ 197.50
44065
440651051
ref: 44065
BUSHING-FRONT FORK
€ 15.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
€ 20.00
51044
510441027
ref: 51044
TUBE-ASSY
€ 94.00
56040
560401030
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011957
ref: 92001A
BOLT,SOCKET,5X12,BLAC
€ 2.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221456
ref: 92022A
WASHER,FORK OUTER PIP
€ 3.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371454
ref: 92037
CLAMP,FRONT FORK
€ 8.50
92049
920491151
ref: 92049
SEAL-OIL,FORK
€ 15.00
92055
920551132
ref: 92055
RING-O,FORK SPRING SE
€ 4.00
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
€ 5.50
92055B
920551201
ref: 92055B
RING-O,AND
€ 1.00
92093
920931151
ref: 92093
SEAL,FORK
€ 16.50
114
114J0860
ref: 114
BOLT-SMALL,8X60,BLACK
€ 2.50
120
120S0616
ref: 120
BOLT-SOCKET,6X16
€ 1.00
120A
120S1230
ref: 120A
BOLT-SOCKET,12X30
€ 3.50
131
131J0855
ref: 131
BOLT-FLANGED,8X55,BLA
€ 2.50
220
220B0414
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220C0408
ref: 220A
SCREW-PAN-CROS
€ 2.50
317
317J0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
€ 2.50
410
410C0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
