FENDER

ZX750A1 1983 EUROPE UK FR IT NR SD ST

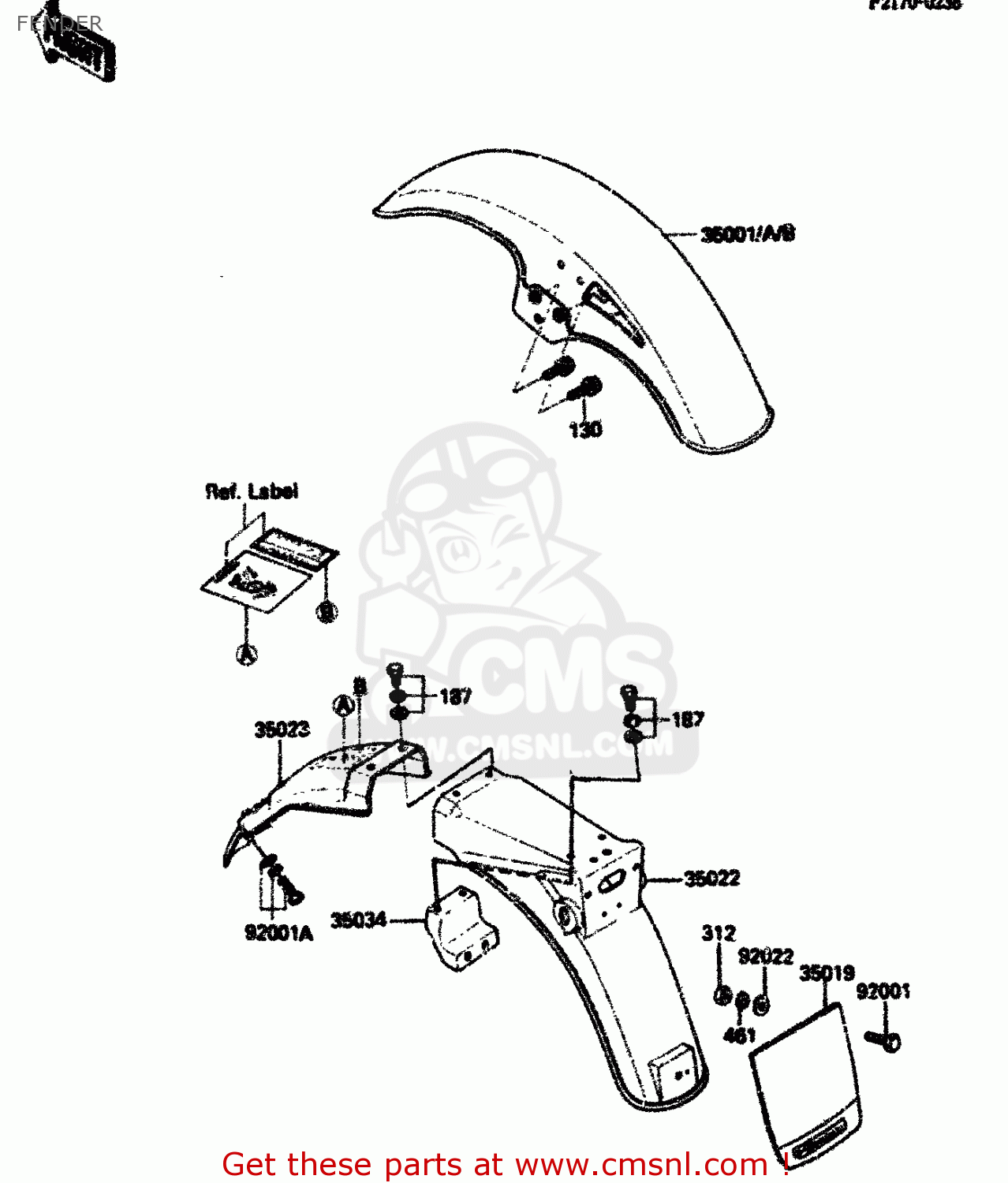

Fender diagram ZX750A1 1983 EUROPE UK FR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

35001

350011046B1
ref: 35001

FENDER-ASSY-FRONT,F.R

€ 183.00

35001A

350011046F1
ref: 35001A
EU, FR, IT, NR, SD,

FENDER-ASSY-FRONT,P.W

€ 165.50

35019

350191005
ref: 35019
ST (OPTION)

FLAP,FENDER,RR

€ 15.50

35022

3502211186Z
ref: 35022

FENDER-COMP-REAR,RR

€ 62.00

35023

350231106
ref: 35023

FENDER-REAR,FR

€ 33.50

35034

350341091
ref: 35034

REINFORCE,FENDER,RR

€ 17.00

92001

92001134
ref: 92001
ST (OPTION)

BOLT,5X12

€ 3.00

92001A

920011763
ref: 92001A

BOLT,W/SP,6X16

€ 3.00

92022

92022104
ref: 92022
ST (OPTION)

WASHER-SPEEDMETR FIT

€ 2.50

130

130B0820
ref: 130

BOLT-FLANGED,8X20

€ 0.50

187

187B0620
ref: 187

BOLT-UPSET-WSP

€ 0.50

312

312B0500
ref: 312
ST (OPTION)

NUT-HEX,5MM

€ 0.50

461

461F0500
ref: 461
ST (OPTION)

WASHER-SPRING,5MM

€ 0.50

FENDER

all assemblies
