Genuine ZX Kawasaki Parts delivered quickly!


REAR HUB

ZX600H1 NINJA ZX6R 1998 FG ST

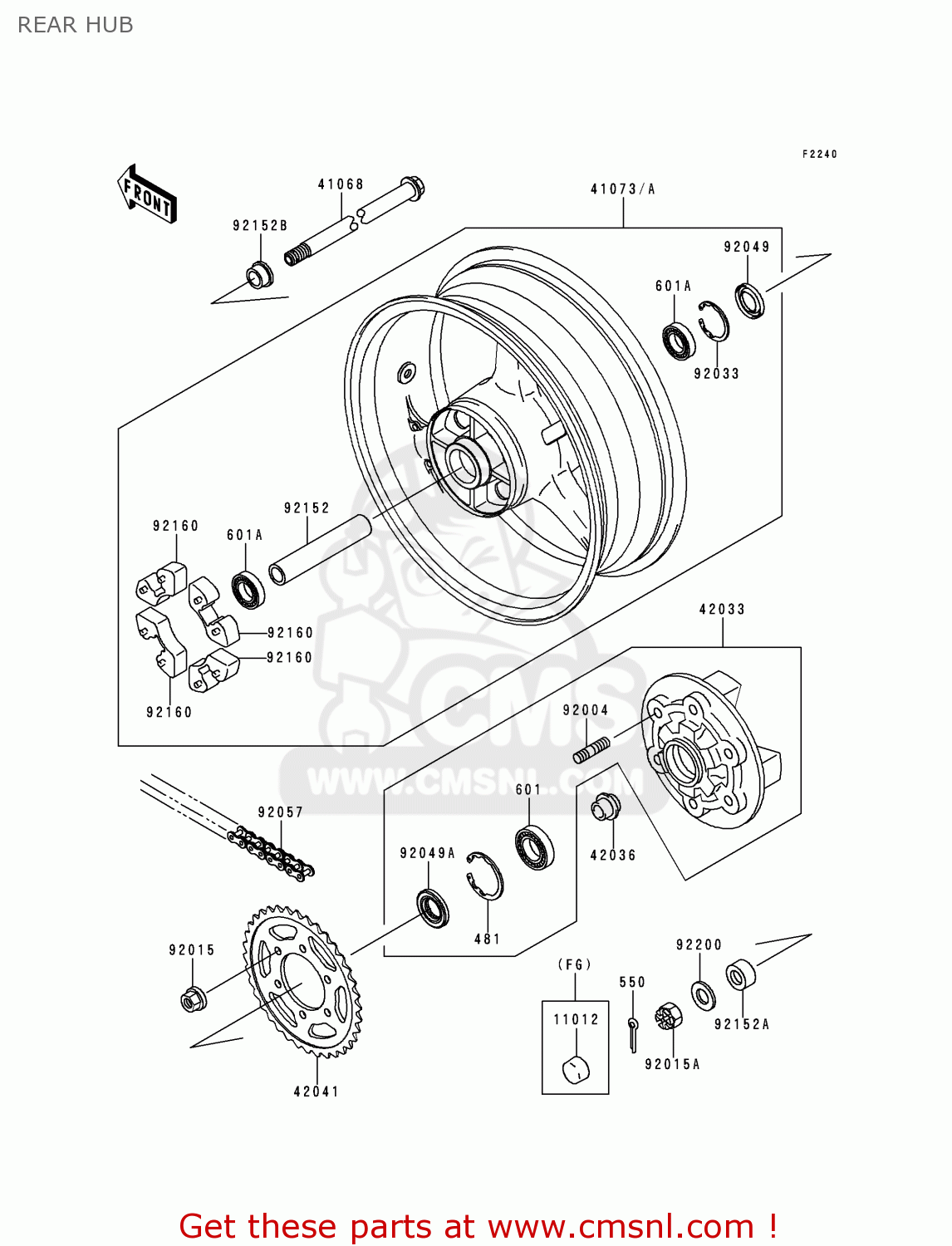

Rear hub diagram ZX600H1 NINJA ZX6R 1998 FG ST

REAR HUB ZX600H1 NINJA ZX6R 1998 FG ST
REAR HUB ZX600H1 NINJA ZX6R 1998 FG ST
REAR HUB ZX600H1 NINJA ZX6R 1998 FG ST
prices are in EUR
ref
part #
description
quantity
481
481J5500
ref: 481
CIRCLIP
€ 6.50
550
550D4040
ref: 550
PIN-COTTER,4.0X40
550D4040
€ 1.00
601
601B6006G
ref: 601
BEARING-BALL,#6006G
601B6006G
€ 27.50
601A
601B6205UU
ref: 601A
BEARING-BALL
601B6205UU
€ 27.50
11012
110121785
ref: 11012
FG
CAP,AXLE NUT
110121785
€ 6.00
41068
410681326
ref: 41068
AXLE,RR
410681326
€ 73.00
41073
410731634CJ
ref: 41073
WHEEL-ASSY,RR,L.GREEN
€ 880.00
41073A
410731634DH
ref: 41073A
WHEEL-ASSY,RR,C.GRAY
€ 838.00
42033
420331144
ref: 42033
COUPLING-ASSY,RR HUB
420331144
€ 208.50
42036
420361279
ref: 42036
SLEEVE,RR HUB,L=22
420361279
€ 21.50
42041
420411503
ref: 42041
SPROCKET-HUB,40T
€ 53.00
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92015A
920151844
ref: 92015A
NUT,CASTLE,24MM
920151844
€ 10.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491375
ref: 92049
SEAL-OIL,RR HUB
920491375
€ 13.00
92049A
920491376
ref: 92049A
SEAL-OIL,PJN 40 55 8
920491376
€ 12.50
92057
920571462
ref: 92057
CHAIN,DRIVE,EK525MVXL
€ 155.50
92152
921521080
ref: 92152
COLLAR,RR HUB,L=152.5
921521080
€ 25.50
92152A
921521081
ref: 92152A
COLLAR,RR AXLE,LH,L=2
921521081
€ 22.00
92152B
921521082
ref: 92152B
COLLAR,RR AXLE,RH,L=1
921521082
€ 14.00
92160
921601485
ref: 92160
DAMPER,SHOCK,RR HUB
921601485
€ 16.00
92200
922001081
ref: 92200
WASHER,25.5X38X4.5
922001081
€ 3.50
