OIL PUMP

ZX600H1 NINJA ZX6R 1998 FG ST

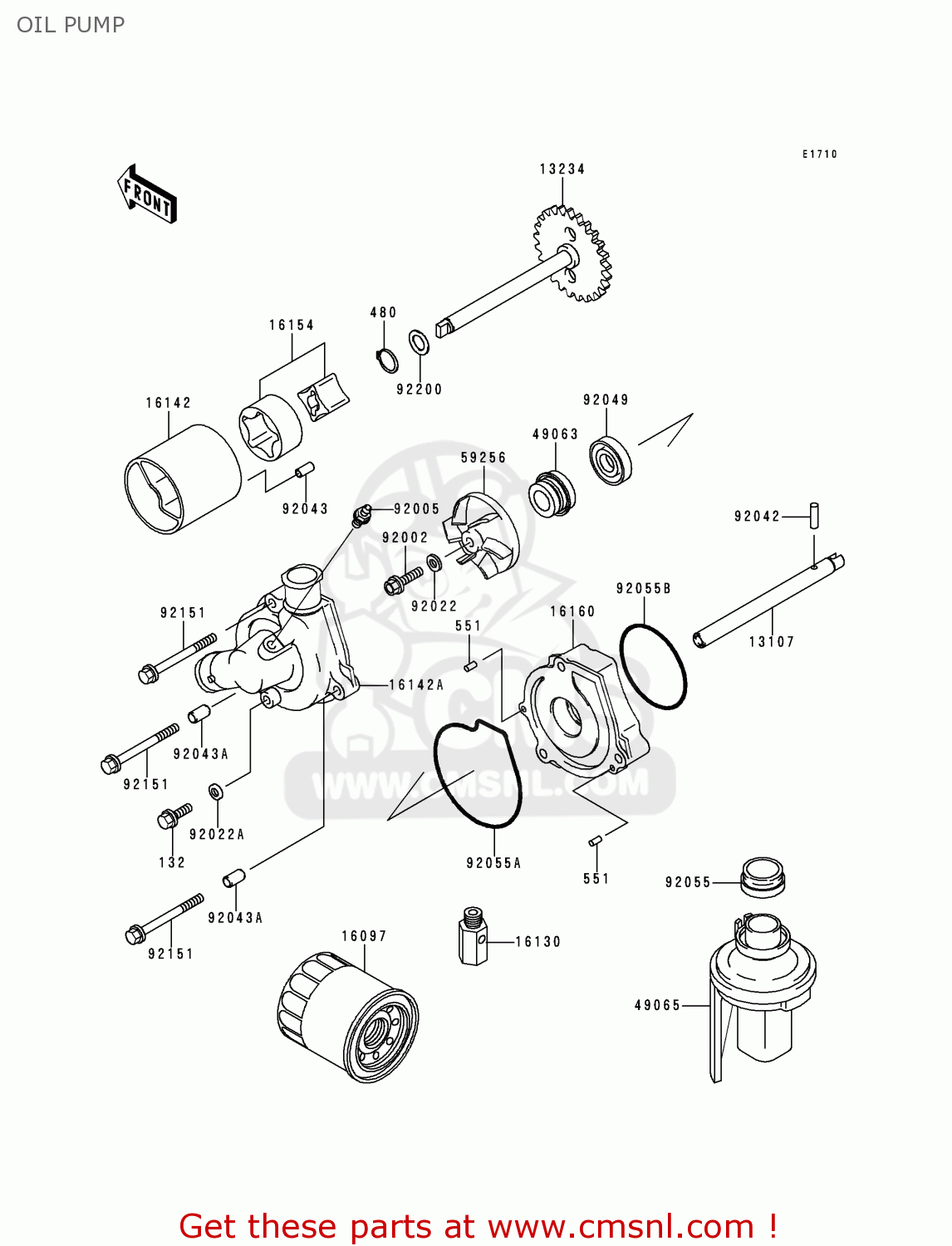

Oil pump diagram ZX600H1 NINJA ZX6R 1998 FG ST

OIL PUMP ZX600H1 NINJA ZX6R 1998 FG ST
OIL PUMP ZX600H1 NINJA ZX6R 1998 FG ST
OIL PUMP ZX600H1 NINJA ZX6R 1998 FG ST
prices are in EUR
ref
part #
description
quantity
132
132Y0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
551
551A0408
ref: 551
PIN-DOWEL,4X8
551A0408
€ 0.50
13107
131071398
ref: 13107
SHAFT,PUMP,LH
131071398
€ 42.50
13234
132341106
ref: 13234
SHAFT-COMP,PUMP,RH
132341106
€ 65.00
16097
160971067
ref: 16097
FILTER-ASSY-OIL
160971067
€ 10.50
16130
161301058
ref: 16130
VALVE-ASSY-RELIEF
161301058
€ 30.00
16142
161421133
ref: 16142
COVER-PUMP,OIL
161421133
€ 28.00
16142A
161421152
ref: 16142A
COVER-PUMP,WATER
€ 124.50
16154
161541115
ref: 16154
ROTOR-PUMP
161541115
€ 51.00
16160
161601288
ref: 16160
BODY
€ 115.50
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
490631002
€ 17.00
49065
490651073
ref: 49065
FILTER-OIL
490651073
€ 22.50
59256
592561073
ref: 59256
IMPELLER
592561073
€ 25.50
92002
920021154
ref: 92002
BOLT,6X22
920021154
€ 3.00
92005
920051273
ref: 92005
FITTING
920051273
€ 17.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
920431262
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491336
ref: 92049
SEAL-OIL,OIL PUMP
920491336
€ 20.50
92055
920551503
ref: 92055
RING-O,OIL FILTER
920551503
€ 6.50
92055A
920551532
ref: 92055A
RING-O,WATER PUMP COV
920551532
€ 10.50
92055B
920553018
ref: 92055B
RING-O,59.6X2.4
920553018
€ 4.00
92151
921511307
ref: 92151
BOLT,6X60
€ 2.00
92200
922001009
ref: 92200
WASHER
922001009
€ 3.00
