BATTERY CASE

ZX600H1 NINJA ZX6R 1998 FG ST

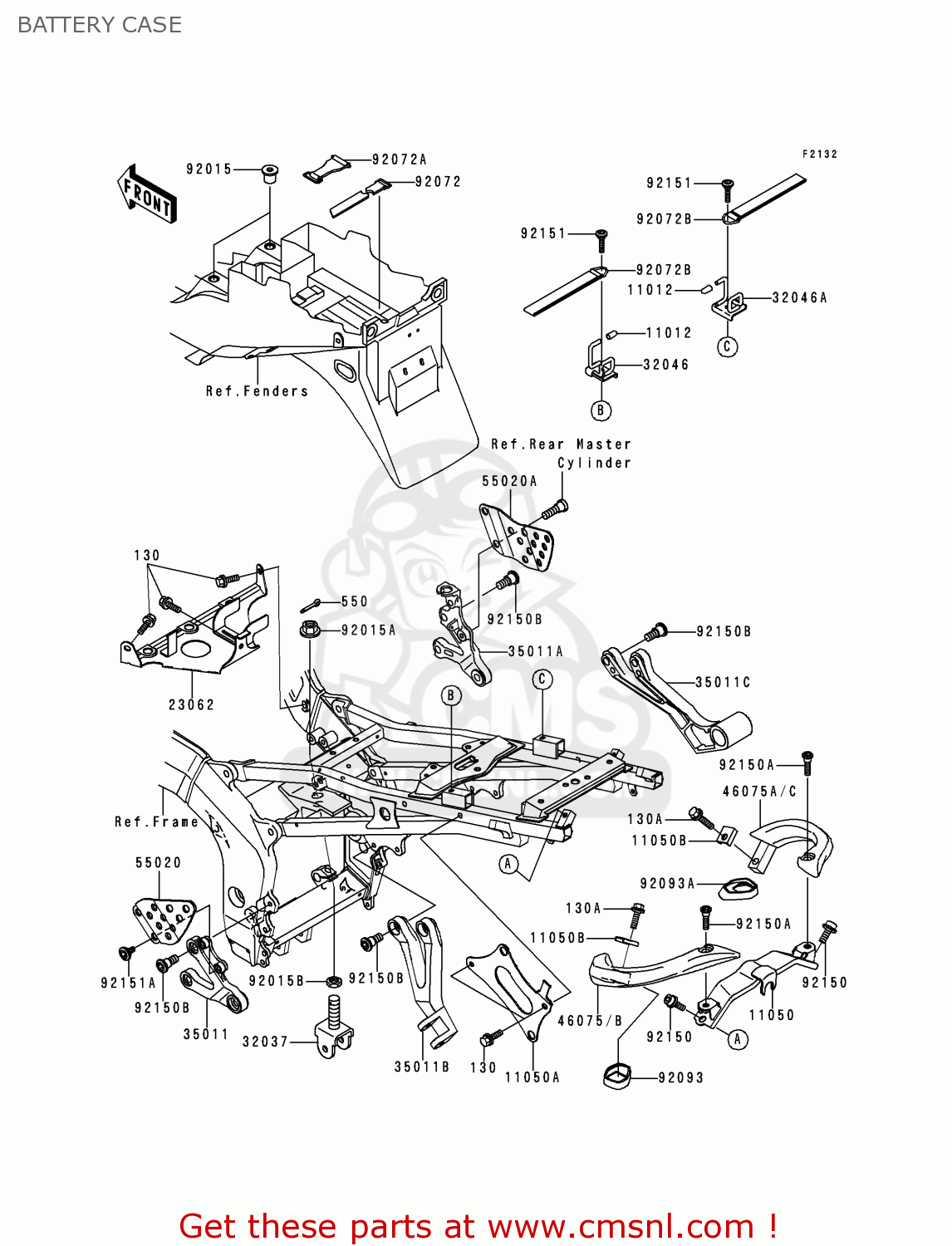

Battery case diagram ZX600H1 NINJA ZX6R 1998 FG ST

BATTERY CASE ZX600H1 NINJA ZX6R 1998 FG ST
BATTERY CASE ZX600H1 NINJA ZX6R 1998 FG ST
BATTERY CASE ZX600H1 NINJA ZX6R 1998 FG ST
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130J0830
ref: 130A
BOLT-FLANGED,8X30
130J0830
€ 2.50
550
550D4025
ref: 550
PIN,COTTER,4X25
550D4025
€ 0.50
11012
110121589
ref: 11012
CAP,BUNGEE CORD HOOK
110121589
€ 5.00
11050
110501645
ref: 11050
BRACKET,TAIL GRIP
110501645
€ 46.00
11050A
110501649
ref: 11050A
BRACKET,IGNITER
110501649
€ 16.00
11050B
110501797
ref: 11050B
BRACKET,TAIL GRIP
110501797
€ 2.00
23062
230621127
ref: 23062
BRACKET-COMP,FUEL PUM
€ 34.00
32037
320371767
ref: 32037
BRACKET-SHOCKABSORBER
€ 17.00
32046
320461453
ref: 32046
BRACKET-SEAT,RR,LH
€ 17.00
32046A
320461454
ref: 32046A
BRACKET-SEAT,RR,RH
€ 17.00
35011
350111874
ref: 35011
STAY,FR STEP,LH
350111874
€ 109.50
35011A
350111875
ref: 35011A
STAY,FR STEP,RH
350111875
€ 109.50
35011B
350111878TX
ref: 35011B
STAY,RR STEP,LH,SILVE
350111878TX
€ 35.50
35011C
350111879TX
ref: 35011C
STAY,RR STEP,RH,SILVE
350111879TX
€ 37.50
46075
46075114721
ref: 46075
GRIP,RR,LH,F.BLACK
€ 73.00
46075A
46075114821
ref: 46075A
GRIP,RR,RH,F.BLACK
€ 68.50
55020
550201627
ref: 55020
GUARD,FR STEP STAY,LH
550201627
€ 18.50
55020A
550201628
ref: 55020A
GUARD,FR STEP STAY,RH
550201628
€ 15.50
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92015A
920151881
ref: 92015A
NUT,FLANGED,16MM
920151881
€ 16.50
92015B
920151953
ref: 92015B
NUT,16MM
920151953
€ 3.00
92072
920721331
ref: 92072
BAND,L=470
920721331
€ 16.50
92072A
920721355
ref: 92072A
BAND,U LOCK
920721355
€ 9.50
92072B
920721363
ref: 92072B
BAND,L=122
920721363
€ 14.50
92093
920931476
ref: 92093
SEAL,REAR GRIP,LH
920931476
€ 3.50
92093A
920931477
ref: 92093A
SEAL,REAR GRIP,RH
920931477
€ 3.00
92150
921501155
ref: 92150
BOLT,SOCKET,8X20
921501155
€ 3.50
92150A
921501735
ref: 92150A
BOLT
921501735
€ 8.00
92150B
921501839
ref: 92150B
BOLT
921501839
€ 1.50
92151
921511276
ref: 92151
BOLT,6X28
921511276
€ 5.00
92151A
921511334
ref: 92151A
BOLT,6MM
921511334
€ 2.00
