CARBURETOR PARTS
ZX600H1 NINJA ZX6R 1998 FG ST

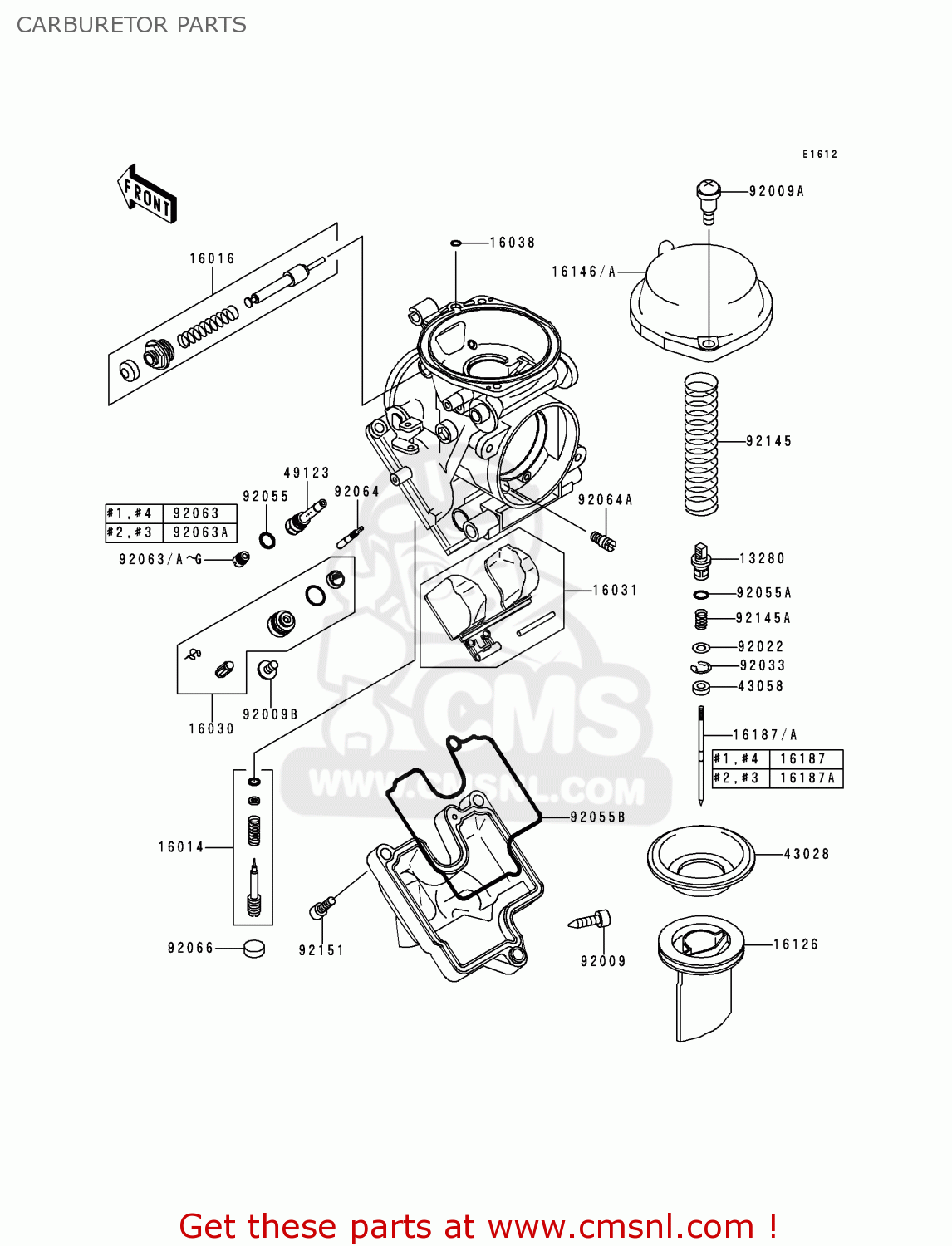

Carburetor parts diagram ZX600H1 NINJA ZX6R 1998 FG ST
CARBURETOR PARTS ZX600H1 NINJA ZX6R 1998 FG ST
×
prices are in EUR
ref
part #
description
quantity
13280
132801095
ref: 13280
HOLDER
€ 22.00
16014
160141100
ref: 16014
SCREW-PILOT AIR
€ 18.00
16016
160161107
ref: 16016
PLUNGER,STARTER
€ 31.50
16030
160301088
ref: 16030
VALVE-FLOAT,#1.5
€ 41.50
16031
160311096
ref: 16031
FLOAT
€ 42.00
16038
16038022
ref: 16038
GASKET,O-RING
€ 4.50
16126
161261363
ref: 16126
VALVE,VACUUM
€ 55.00
16146
161461197
ref: 16146
ST
COVER-ASSY,MIXING
€ 48.00
16146A
161461199
ref: 16146A
FG
COVER-ASSY,MIXING
€ 48.00
16187
161871058
ref: 16187
NEEDLE-JET,5EI1
€ 20.50
16187A
161871059
ref: 16187A
NEEDLE-JET,5EI2
€ 20.50
43028
430281086
ref: 43028
DIAPHRAGM,VACUUM VALV
€ 44.00
43058
430581094
ref: 43058
RING
€ 2.50
49123
491231052
ref: 49123
HOLDER-MAIN JET
€ 18.00
92009
920091826
ref: 92009
SCREW,DRAIN
€ 6.00
92009A
920091850
ref: 92009A
SCREW,MIXING COVER
€ 2.50
92009B
920091853
ref: 92009B
SCREW,FLOAT VALVE
€ 3.00
92022
920221123
ref: 92022
WASHER,JET NEEDLE
€ 5.50
92033
920331299
ref: 92033
RING-SNAP
€ 1.50
92055
920551084
ref: 92055
RING-O
€ 1.50
92055A
920551093
ref: 92055A
RING-O,DRAIN PLUG
€ 4.50
92055B
920551588
ref: 92055B
RING-O,FLOAT CHAMBER
€ 11.00
92063
920631431
ref: 92063
JET-MAIN,#A137.5
€ 10.50
92063A
920631432
ref: 92063A
JET-MAIN,#A140
€ 8.50
92063B
920631433
ref: 92063B
JET-MAIN,#A130
€ 10.50
92063C
920631434
ref: 92063C
JET-MAIN,#A132.5
€ 10.50
92063D
920631435
ref: 92063D
JET-MAIN,#A135
€ 8.00
92063E
920631436
ref: 92063E
JET-MAIN,#A142.5
€ 8.50
92063F
920631437
ref: 92063F
JET-MAIN,#A145
€ 9.00
92063G
920631438
ref: 92063G
JET-MAIN,#A147.5
€ 11.00
92064
920641195
ref: 92064
JET-PILOT,#12.5
€ 13.00
92064A
920641196
ref: 92064A
JET-PILOT,#A120
€ 9.50
92066
920661501
ref: 92066
ST
PLUG,PILOT AIR SCREW
€ 2.50
92145
921451182
ref: 92145
SPRING,VACUUM VALVE
€ 7.00
92145A
921451183
ref: 92145A
SPRING
€ 1.50
92151
921511406
ref: 92151
BOLT,SOCKET,FLOAT CHA
€ 2.50
