Genuine ZX Kawasaki Parts delivered quickly!


CHASSIS ELECTRICAL EQUIPMENT

ZX600H1 NINJA ZX6R 1998 FG ST

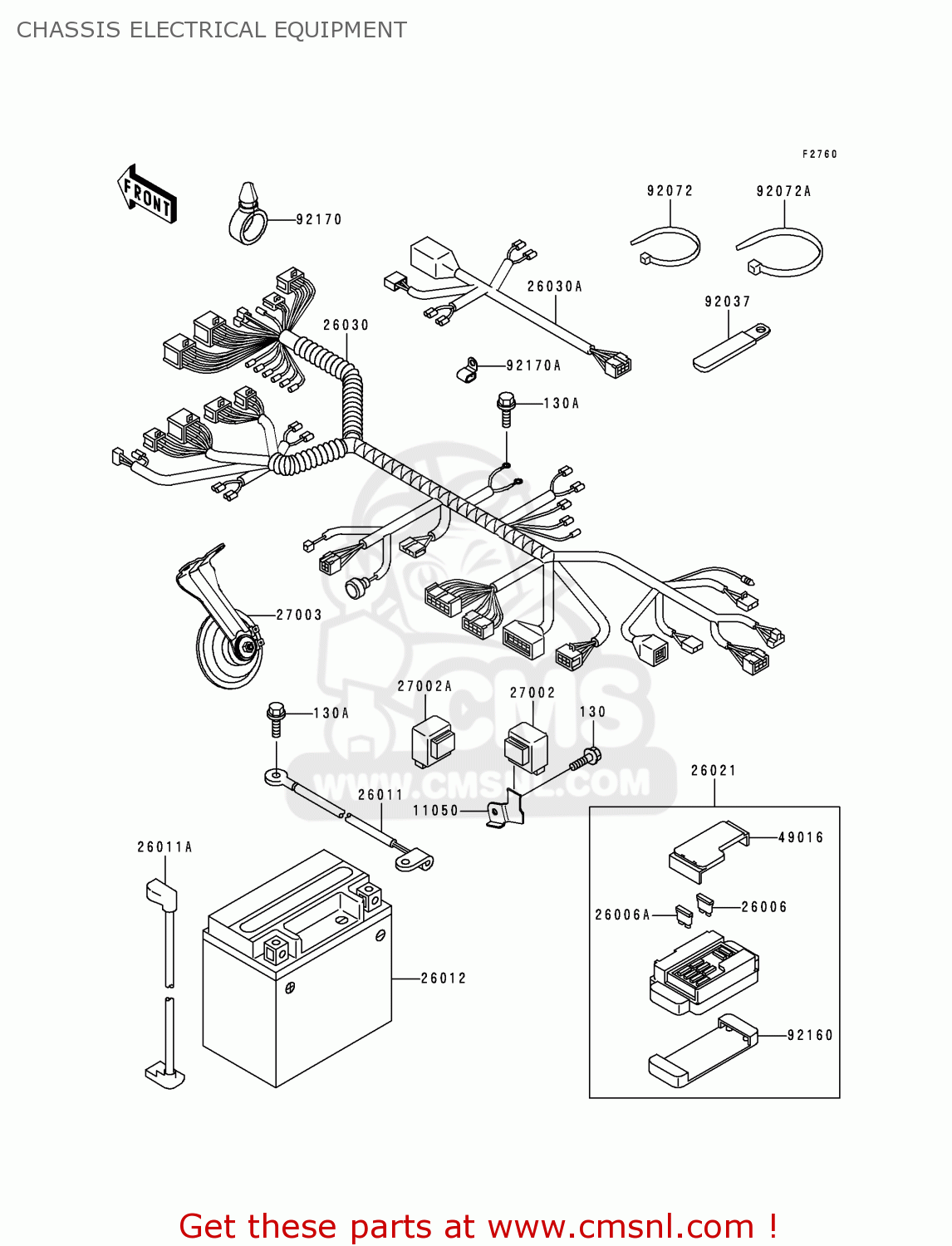

Chassis electrical equipment diagram ZX600H1 NINJA ZX6R 1998 FG ST

CHASSIS ELECTRICAL EQUIPMENT ZX600H1 NINJA ZX6R 1998 FG ST
CHASSIS ELECTRICAL EQUIPMENT ZX600H1 NINJA ZX6R 1998 FG ST
CHASSIS ELECTRICAL EQUIPMENT ZX600H1 NINJA ZX6R 1998 FG ST
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
11050
110501863
ref: 11050
BRACKET,HEAD LAMP REL
€ 7.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111692
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 20.00
26011A
260111693
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 24.00
26012
260121326
ref: 26012
BATTERY,YTX9BS,12V8AH
€ 100.00
26021
260211095
ref: 26021
JUNCTION BOX
260211095
€ 135.50
26030
260301555
ref: 26030
HARNESS,MAIN
€ 256.50
26030A
260301568
ref: 26030A
HARNESS,FR
€ 39.00
27002
270021062
ref: 27002
RELAY-ASSY
270021062
€ 27.00
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031409
ref: 27003
HORN
€ 48.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92160
921601650
ref: 92160
DAMPER,JUNCTION BOX
921601650
€ 9.50
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701577
ref: 92170A
CLAMP
921701577
€ 3.00
