Genuine ZX Kawasaki Parts delivered quickly!


FRONT MASTER CYLINDER

ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

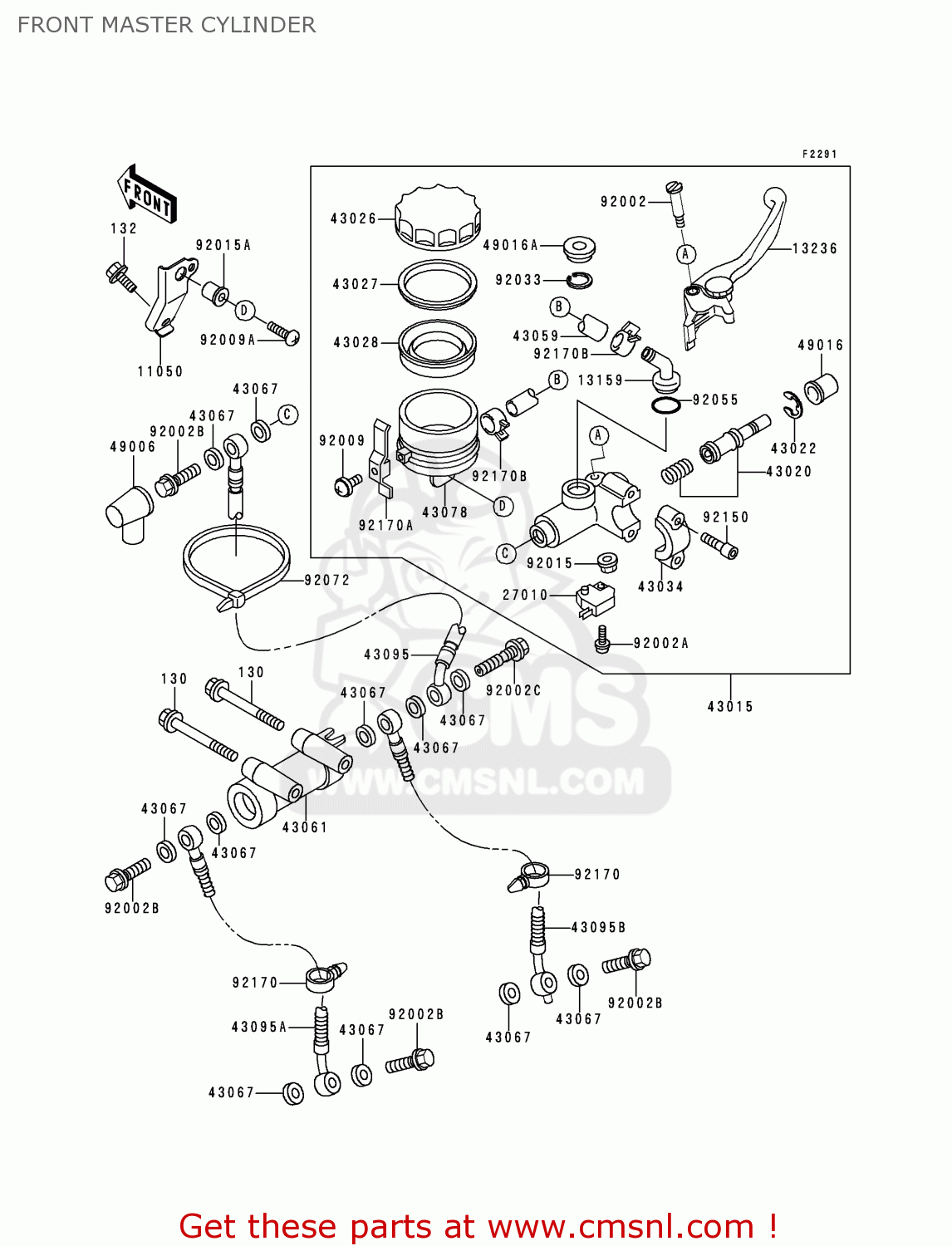

Front master cylinder diagram ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

FRONT MASTER CYLINDER ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
FRONT MASTER CYLINDER ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
FRONT MASTER CYLINDER ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
130
130J0660
ref: 130
BOLT-FLANGED,6X60
€ 2.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
11050
110501767
ref: 11050
BRACKET,RESERVE TANK
110501767
€ 6.00
13159
131591061
ref: 13159
CONNECTOR
131591061
€ 9.00
13236
132361326
ref: 13236
LEVER-COMP,FRONT BRAK
132361326
€ 48.50
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015
430151633
ref: 43015
CYLINDER-ASSY-MASTER,
430151633
€ 338.00
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
430201054
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43034
430341016
ref: 43034
HOLDER-BRAKE,MASTER C
430341016
€ 13.50
43059
430591696
ref: 43059
HOSE-BRAKE,FR MASTER
430591696
€ 17.00
43061
430611004
ref: 43061
JOINT-BRAKE
430611004
€ 51.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781099
ref: 43078
RESERVOIR
430781099
€ 23.50
43095
430951092
ref: 43095
HOSE-BRAKE,FR,UPP
€ 63.00
43095A
430951093
ref: 43095A
HOSE-BRAKE,FR,LWR,LH
€ 66.00
43095B
430951094
ref: 43095B
HOSE-BRAKE,FR,LWR,RH
€ 66.00
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
49016A
490161147
ref: 49016A
COVER-SEAL
490161147
€ 5.00
92002
920021322
ref: 92002
BOLT,LEVER SET
920021322
€ 8.00
92002A
920021323
ref: 92002A
BOLT
920021323
€ 2.50
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
920021888
€ 3.50
92002C
920021909
ref: 92002C
BOLT
920021909
€ 8.50
92009
920091570
ref: 92009
SCREW
920091570
€ 2.00
92009A
920091655
ref: 92009A
SCREW, 5X18 BLACK
920091655
€ 2.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92015A
920151757A
ref: 92015A
NUT,5MM
920151757A
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92150
921501328
ref: 92150
BOLT
921501328
€ 3.00
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701090
ref: 92170A
CLAMP
921701090
€ 10.00
92170B
921701091
ref: 92170B
CLAMP,HOSE
921701091
€ 3.00
