CARBURETOR

ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

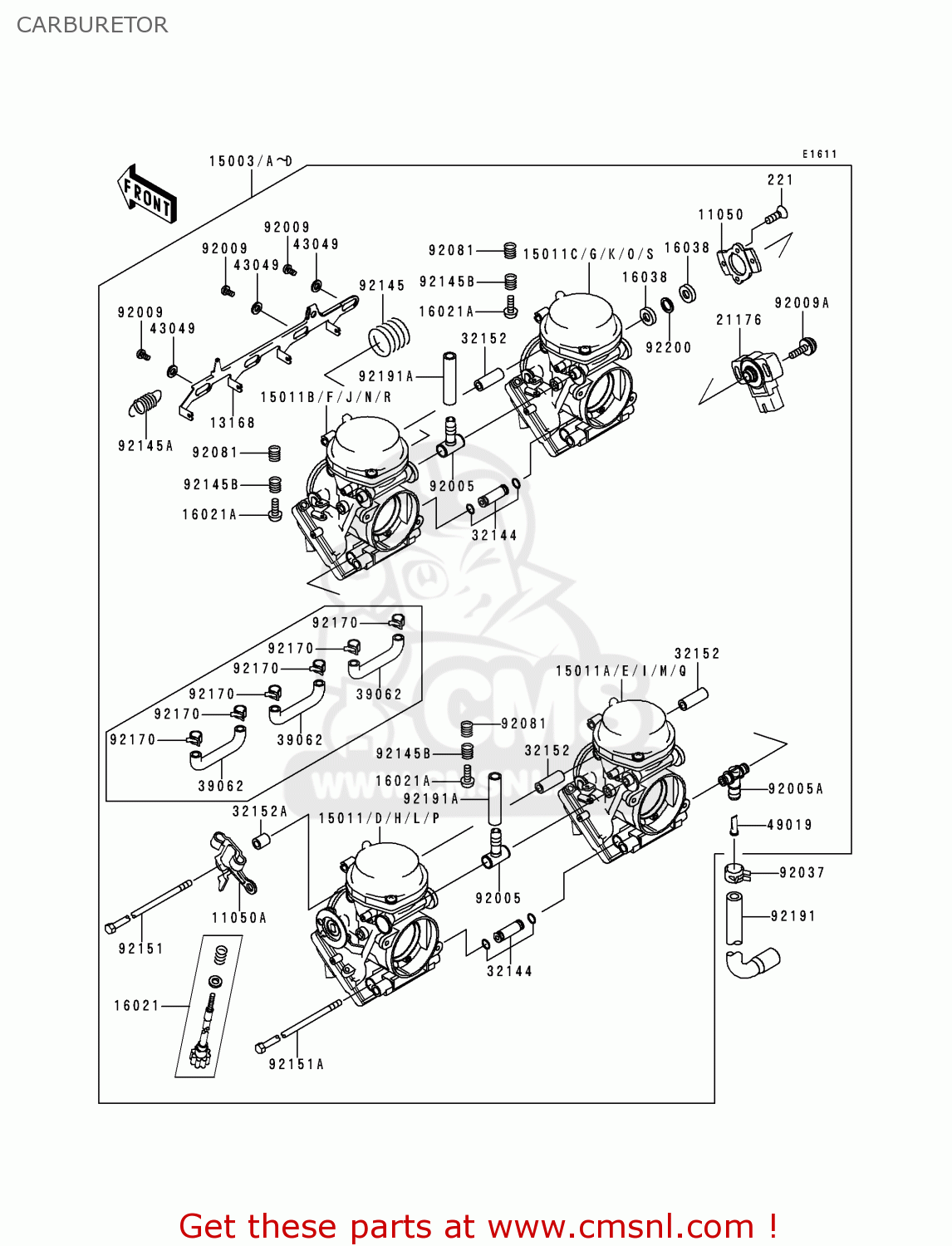

Carburetor diagram ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

CARBURETOR ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
CARBURETOR ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
CARBURETOR ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
11050
110501919
ref: 11050
BRACKET,SENSOR
€ 14.50
11050A
110501920
ref: 11050A
BRACKET,THROTTLE CABL
€ 26.50
13168
131681653
ref: 13168
LEVER,STARTER
€ 90.00
15003A
150031405
ref: 15003A
SD
CARBURETOR-ASSY
€ 1,675.00
15003B
150031406
ref: 15003B
EUGRNRSP
CARBURETOR-ASSY
€ 1,675.00
15003C
150031412
ref: 15003C
ARFGITNLUK
CARBURETOR-ASSY
€ 1,675.00
15003D
150031438
ref: 15003D
FR
CARBURETOR-ASSY
€ 1,675.00
15011
150111494
ref: 15011
EUGRNRSP
CARBURETOR,LH,OUTSIDE
€ 553.00
15011A
150111495
ref: 15011A
EUGRNRSP
CARBURETOR,LH,INSIDE
€ 553.00
15011B
150111496
ref: 15011B
EUGRNRSP
CARBURETOR,RH,INSIDE
€ 553.00
15011C
150111497
ref: 15011C
EUGRNRSP
CARBURETOR,RH,OUTSIDE
€ 553.00
15011H
150111518
ref: 15011H
SD
CARBURETOR,LH,OUTSIDE
€ 553.00
15011I
150111519
ref: 15011I
SD
CARBURETOR,LH,INSIDE
€ 553.00
15011J
150111520
ref: 15011J
SD
CARBURETOR,RH,INSIDE
€ 553.00
15011K
150111521
ref: 15011K
SD
CARBURETOR,RH,OUTSIDE
€ 553.00
15011L
150111526
ref: 15011L
ARFGITNLUK
CARBURETOR,LH,OUTSIDE
€ 553.00
15011M
150111527
ref: 15011M
ARFGITNLUK
CARBURETOR,LH,INSIDE
€ 553.00
15011N
150111528
ref: 15011N
ARFGITNLUK
CARBURETOR,RH,INSIDE
€ 553.00
15011O
150111529
ref: 15011O
ARFGITNLUK
CARBURETOR,RH,OUTSIDE
€ 553.00
15011P
150111530
ref: 15011P
FR
CARBURETOR,LH,OUTSIDE
€ 553.00
15011Q
150111531
ref: 15011Q
FR
CARBURETOR,LH,INSIDE
€ 553.00
15011R
150111532
ref: 15011R
FR
CARBURETOR,RH,INSIDE
€ 553.00
15011S
150111533
ref: 15011S
FR
CARBURETOR,RH,OUTSIDE
€ 553.00
16021
160211222
ref: 16021
SCREW-THROTTLE STOP
160211222
€ 56.50
16021A
160212060
ref: 16021A
SCREW,THROTTLE ADJUST
€ 3.00
16038
16038020
ref: 16038
GASKET,8MM (NAS)
16038020
€ 4.50
21176
211761083
ref: 21176
SENSOR
211761083
€ 187.00
32144
321441007
ref: 32144
PIPE-ASSY
321441007
€ 20.50
32152
321521793
ref: 32152
PIPE
€ 18.50
32152A
321521794
ref: 32152A
PIPE
€ 23.00
39062
390621781
ref: 39062
ARFGFRITNLUK
HOSE-COOLING
390621781
€ 14.50
43049
430491085
ref: 43049
PACKING,STARTER LEVER (NAS)
€ 1.50
49019
490191085
ref: 49019
FILTER-FUEL
490191085
€ 6.50
92005
920051353
ref: 92005
FITTING
920051353
€ 19.00
92005A
920051354
ref: 92005A
FITTING
920051354
€ 18.00
92009
920091851
ref: 92009
SCREW,STARTER LEVER
€ 2.00
92009A
920091855
ref: 92009A
SCREW,SENSOR
€ 1.50
92037
920371181
ref: 92037
CLAMP
920371181
€ 1.00
92081
920812008
ref: 92081
SPRING
€ 2.00
92145
921451179
ref: 92145
SPRING,THROTTLE ADJUS
921451179
€ 4.00
92145A
921451180
ref: 92145A
SPRING,TENSION
€ 10.00
92145B
921451184
ref: 92145B
SPRING,THROTTLE ADJUS
921451184
€ 2.50
92151
921511404
ref: 92151
BOLT,CARBURETOR,UPP
€ 2.50
92151A
921511405
ref: 92151A
BOLT,CARBURETOR,LWR
€ 2.50
221
221B0408
ref: 221
SCREW-CSK-CROS
€ 0.50
92170
921701939
ref: 92170
ARFGFRITNLUK
CLAMP
921701939
€ 5.50
92191
921911253
ref: 92191
TUBE,FUEL
921911253
€ 8.50
92191A
921911277
ref: 92191A
TUBE
€ 3.50
92200
922001435
ref: 92200
WASHER,SENSOR
€ 2.50
