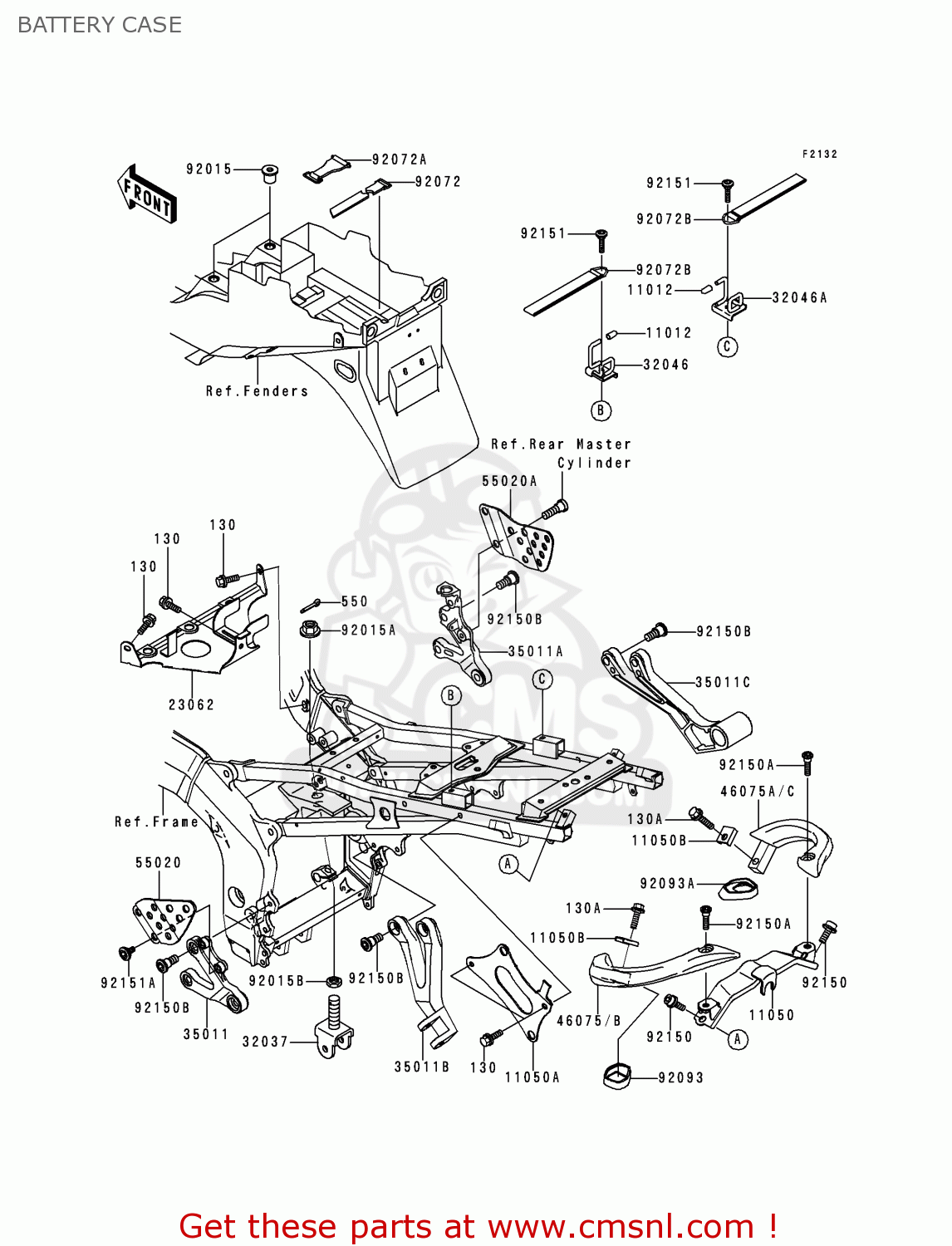

BATTERY CASE

ref

part #

description

quantity

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

130A

130J0830
ref: 130A

BOLT-FLANGED,8X30

€ 2.50

550

550D4025
ref: 550

PIN,COTTER,4X25

€ 0.50

11012

110121589
ref: 11012

CAP,BUNGEE CORD HOOK

€ 5.00

11050

110501645
ref: 11050

BRACKET,TAIL GRIP

€ 46.00

11050A

110501649
ref: 11050A

BRACKET,IGNITER

€ 16.00

11050B

110501797
ref: 11050B

BRACKET,TAIL GRIP

€ 2.00

23062

230621127
ref: 23062

BRACKET-COMP,FUEL PUM

€ 34.00

32037

320371767
ref: 32037

BRACKET-SHOCKABSORBER

€ 17.00

32046

320461453
ref: 32046

BRACKET-SEAT,RR,LH

€ 17.00

32046A

320461454
ref: 32046A

BRACKET-SEAT,RR,RH

€ 17.00

35011

350111874
ref: 35011

STAY,FR STEP,LH

€ 109.50

35011A

350111875
ref: 35011A

STAY,FR STEP,RH

€ 109.50

35011B

350111878TX
ref: 35011B

STAY,RR STEP,LH,SILVE

€ 35.50

35011C

350111879TX
ref: 35011C

STAY,RR STEP,RH,SILVE

€ 37.50

46075B

46075117121
ref: 46075B

GRIP,RR,LH,F.BLACK

€ 73.00

46075C

46075117221
ref: 46075C

GRIP,RR,RH,F.BLACK

€ 68.50

55020

550201627
ref: 55020

GUARD,FR STEP STAY,LH

€ 18.50

55020A

550201628
ref: 55020A

GUARD,FR STEP STAY,RH

€ 15.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92015A

920151881
ref: 92015A

NUT,FLANGED,16MM

€ 16.50

92015B

920151953
ref: 92015B

NUT,16MM

€ 3.00

92072

920721331
ref: 92072

BAND,L=470

€ 16.50

92072A

920721355
ref: 92072A

BAND,U LOCK

€ 9.50

92072B

920721363
ref: 92072B

BAND,L=122

€ 14.50

92093

920931476
ref: 92093

SEAL,REAR GRIP,LH

€ 3.50

92093A

920931477
ref: 92093A

SEAL,REAR GRIP,RH

€ 3.00

92150

921501155
ref: 92150

BOLT,SOCKET,8X20

€ 3.50

92150A

921501735
ref: 92150A

BOLT

€ 8.00

92150B

921501839
ref: 92150B

BOLT

€ 1.50

92151

921511276
ref: 92151

BOLT,6X28

€ 5.00

92151A

921511334
ref: 92151A

BOLT,6MM

€ 2.00
