CYLINDER/PISTON(S)

ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

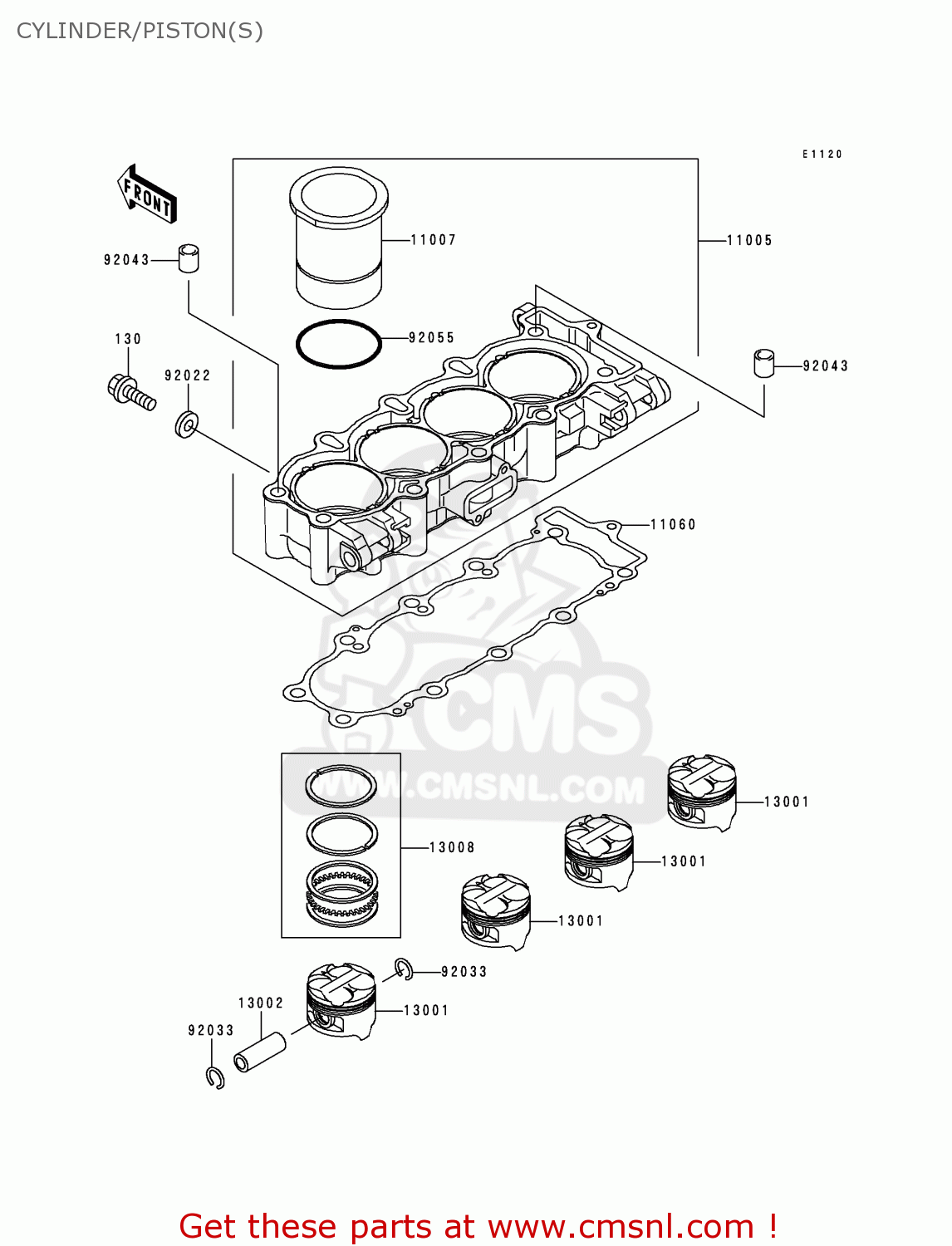

Cylinder/piston(s) diagram ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

11005

110051798
ref: 11005

CYLINDER-ENGINE

€ 1,230.50

11007

110071142
ref: 11007

LINER-CYLINDER

€ 82.50

11060

110601844
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 28.00

13001

130011546
ref: 13001

PISTON-ENGINE

€ 30.00

13002

130021115
ref: 13002

PIN-PISTON

€ 18.50

13008

130081161
ref: 13008

RING-SET-PISTON,STD

€ 56.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331161
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92043

920434009
ref: 92043

PIN,10.1X12X14

€ 4.00

92055

920551534
ref: 92055

RING-O,72X2.0

€ 2.00
