Genuine ZX Kawasaki Parts delivered quickly!


CYLINDER HEAD

ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

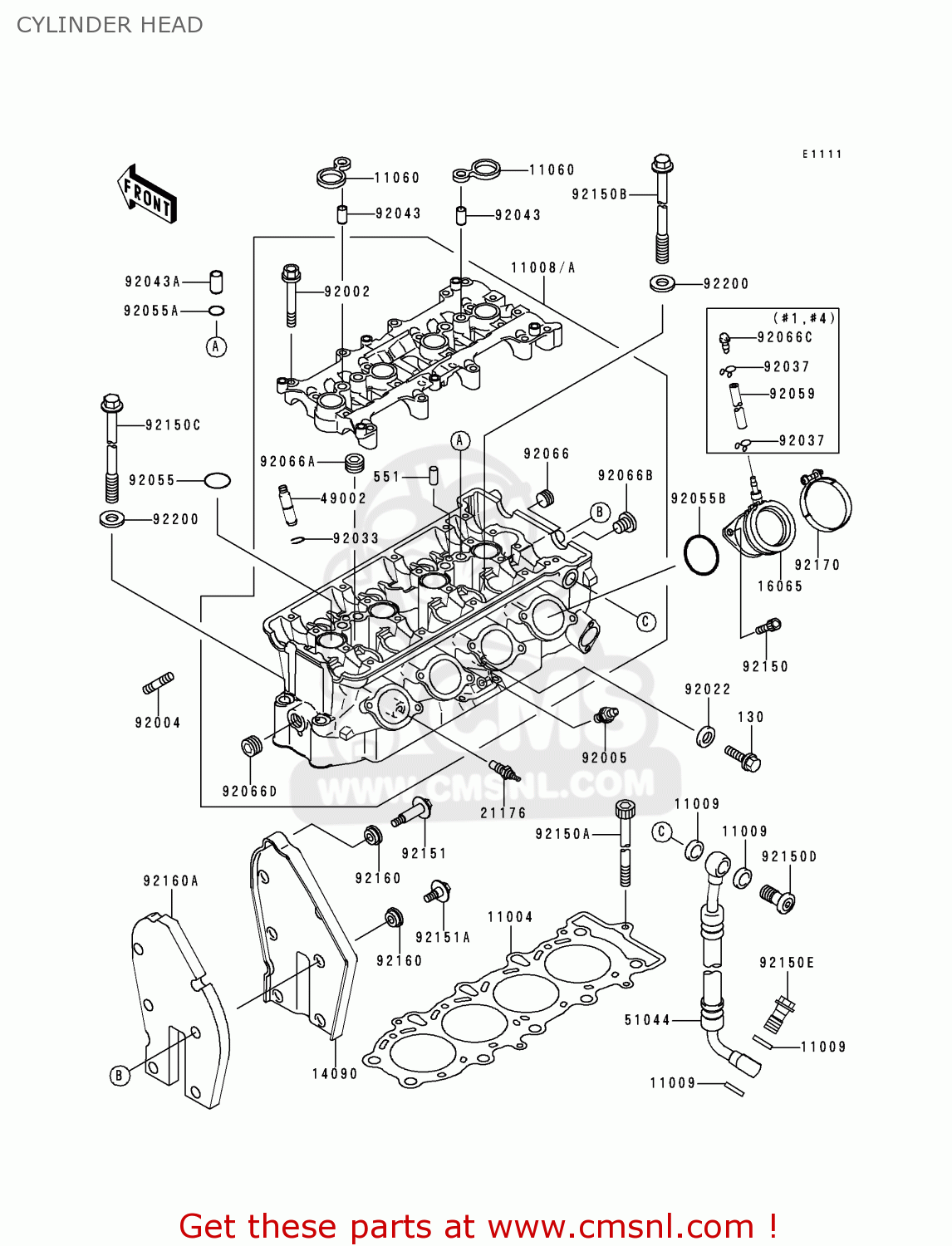

Cylinder head diagram ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

CYLINDER HEAD ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
CYLINDER HEAD ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
CYLINDER HEAD ZX600G2 NINJA ZX6R 1999 EUROPE UK FR NL AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
11004
110041303
ref: 11004
GASKET-HEAD (NAS)
110041303
€ 69.50
11008
110081349
ref: 11008
ARFGFRITNLUK
HEAD-COMP-CYLINDER
€ 1,557.00
11008A
110081350
ref: 11008A
EUGRNRSDSP
HEAD-COMP-CYLINDER
€ 1,557.00
11009
110091461
ref: 11009
GASKET,14X19.5X1.4 (NAS)
110091461
€ 3.50
11060
110601861
ref: 11060
GASKET,BEARING CAP (NAS)
110601861
€ 7.50
14090
140901900
ref: 14090
COVER
€ 56.00
16065
160651354
ref: 16065
HOLDER-CARBURETOR
160651354
€ 22.50
21176
211761075
ref: 21176
SENSOR
211761075
€ 34.50
49002
490021128
ref: 49002
GUIDE-VALVE
490021128
€ 27.50
51044
510441179
ref: 51044
TUBE-ASSY,OIL
€ 115.00
92002
920021756
ref: 92002
BOLT,6X40
920021756
€ 3.00
92004
920041249
ref: 92004
STUD,8X22
920041249
€ 2.50
92005
920051273
ref: 92005
FITTING
920051273
€ 17.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92033
920331247
ref: 92033
RING-SNAP
920331247
€ 2.00
92037
920371712
ref: 92037
CLAMP
920371712
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92055
920551403
ref: 92055
RING-O,25.5X2
920551403
€ 2.50
92055A
920551469
ref: 92055A
RING-O,11.5X1.5
920551469
€ 2.00
92055B
920551536
ref: 92055B
RING-O,42X1.9
920551536
€ 1.50
92059
920591058
ref: 92059
TUBE,4X9X100
€ 12.50
92066
920661227
ref: 92066
PLUG,OIL LINE,1/8X7
920661227
€ 4.00
92066A
920661253
ref: 92066A
PLUG,PT1/2X12.5
920661253
€ 6.50
92066B
920661260
ref: 92066B
PLUG
920661260
€ 2.50
92066C
920661347
ref: 92066C
PLUG
920661347
€ 4.50
92066D
920661420
ref: 92066D
EUGRNRSDSP
PLUG,PT3/8X10
920661420
€ 4.50
92150
921501818
ref: 92150
BOLT,SOCKET,6X14
921501818
€ 3.00
92150A
921501928
ref: 92150A
BOLT
921501928
€ 6.00
92150B
921501934
ref: 92150B
BOLT
921501934
€ 12.00
92150C
921501935
ref: 92150C
BOLT
921501935
€ 11.50
92150D
921501944
ref: 92150D
BOLT
921501944
€ 12.50
92150E
921501945
ref: 92150E
BOLT
921501945
€ 9.50
92151
921511298
ref: 92151
BOLT,L=34
€ 3.50
92151A
921511299
ref: 92151A
BOLT,L=17
€ 3.50
92160
921601681
ref: 92160
DAMPER
921601681
€ 2.50
92160A
921601894
ref: 92160A
DAMPER
€ 23.00
130
130Y0610
ref: 130
BOLT-FLANGED
130Y0610
€ 2.50
551
551A0612
ref: 551
PIN-DOWEL,6X12
551A0612
€ 0.50
92170
921701908
ref: 92170
CLAMP
921701908
€ 6.50
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
922001042
€ 2.50
