TURN SIGNALS

ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

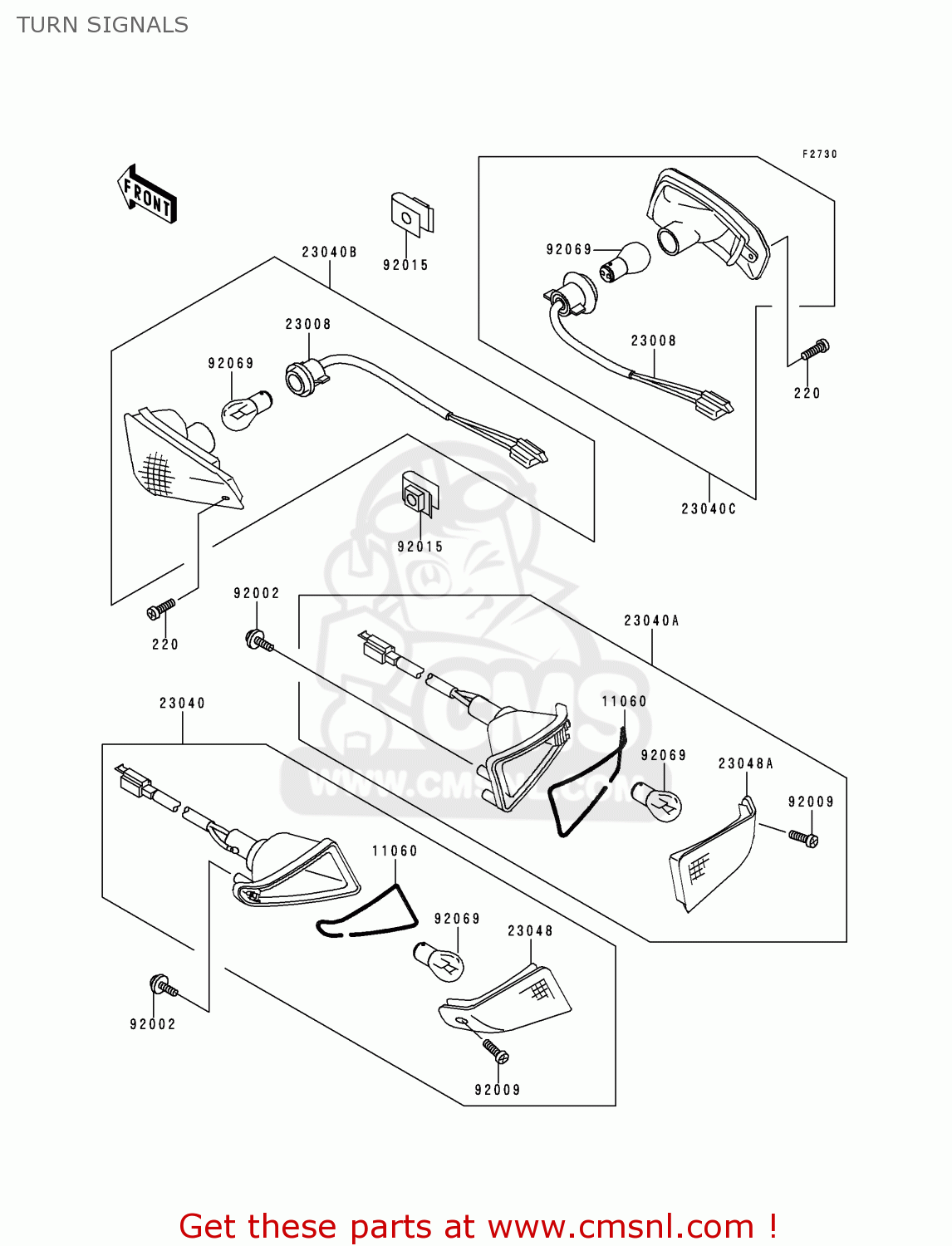

Turn signals diagram ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

220

220D0425
ref: 220

SCREW-PAN-CROS,4X25

€ 0.50

11060

110601322
ref: 11060

GASKET,SIGNAL LAMP LE (NAS)

€ 7.00

23008

230081549
ref: 23008

SOCKET-ASSY,SIGNAL LA

€ 15.00

23040

230401241
ref: 23040

LAMP-SIGNAL,RR,LH

€ 44.00

23040A

230401242
ref: 23040A

LAMP-SIGNAL,RR,RH

€ 18.50

23040B

230401260
ref: 23040B

LAMP-SIGNAL,FR,LH

€ 38.50

23040C

230401261
ref: 23040C

LAMP-SIGNAL,FR,RH

€ 19.00

23048

230481144
ref: 23048

LENS-SIGNAL LAMP,RR,L

€ 13.50

23048A

230481145
ref: 23048A

LENS-SIGNAL LAMP,RR,R

€ 14.50

92002

920021472
ref: 92002

BOLT,TAPPING,5X16

€ 2.00

92009

920091140
ref: 92009

SCREW,TAPPING,4X14

€ 2.50

92015

920151834
ref: 92015

NUT,4MM

€ 4.50

92069

ref: 92069

TURN SIGNALS

all assemblies
