FRAME

ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

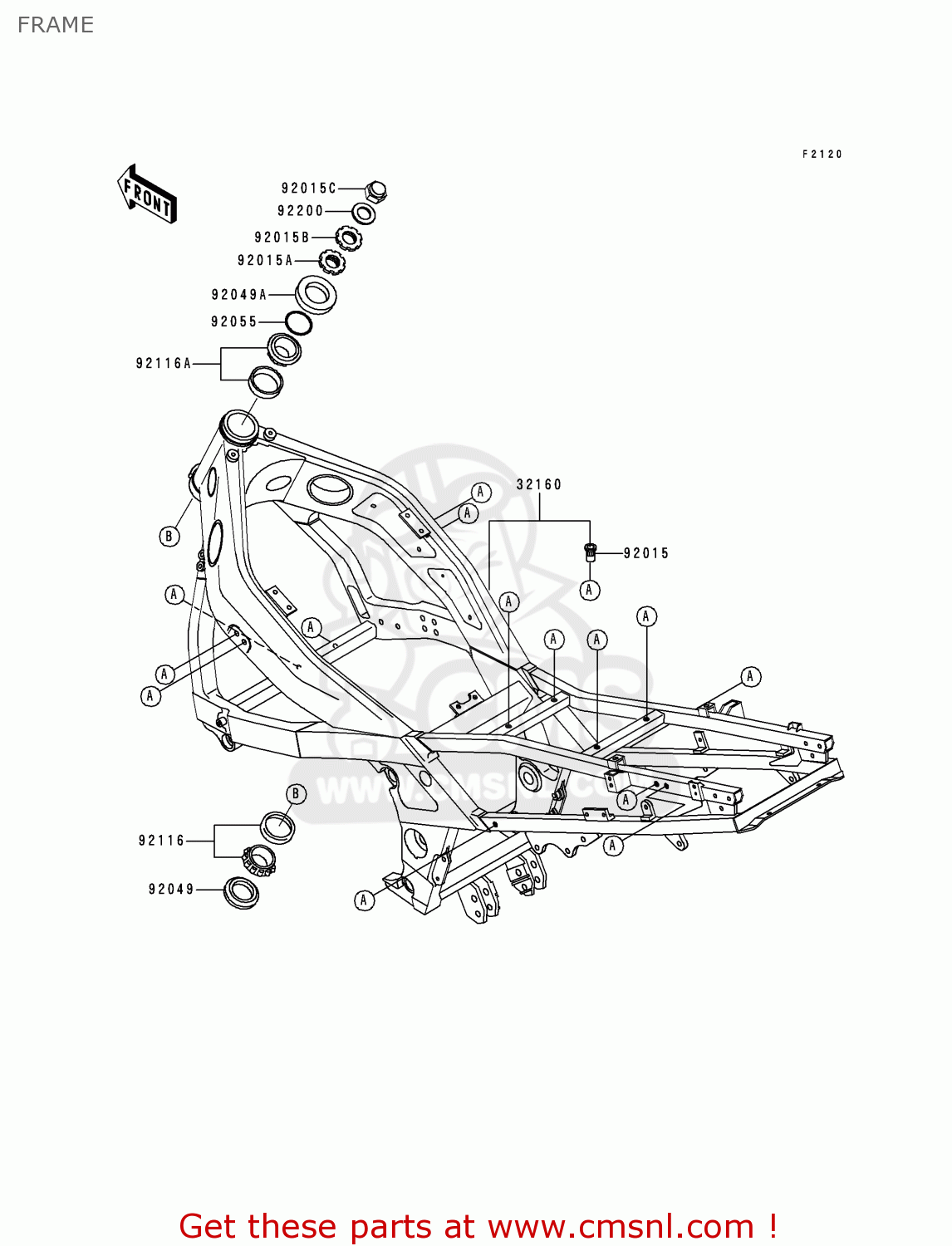

Frame diagram ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

32160

321601387TX
ref: 32160

FRAME-COMP AL SIL NO3

€ 1,967.00

92015

920151791
ref: 92015

NUT,POP,6MM

€ 3.00

92015A

920151803
ref: 92015A

NUT,25MM

€ 18.50

92015B

920151810
ref: 92015B

NUT,25MM

€ 14.50

92015C

920151873
ref: 92015C

NUT,CAP,22MM

€ 19.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491313
ref: 92049A

SEAL-OIL,XMH33 70 6.4

€ 14.50

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92200

922001126
ref: 92200

WASHER,22.5X36X3.2

€ 6.00
