IGNITION SYSTEM

ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

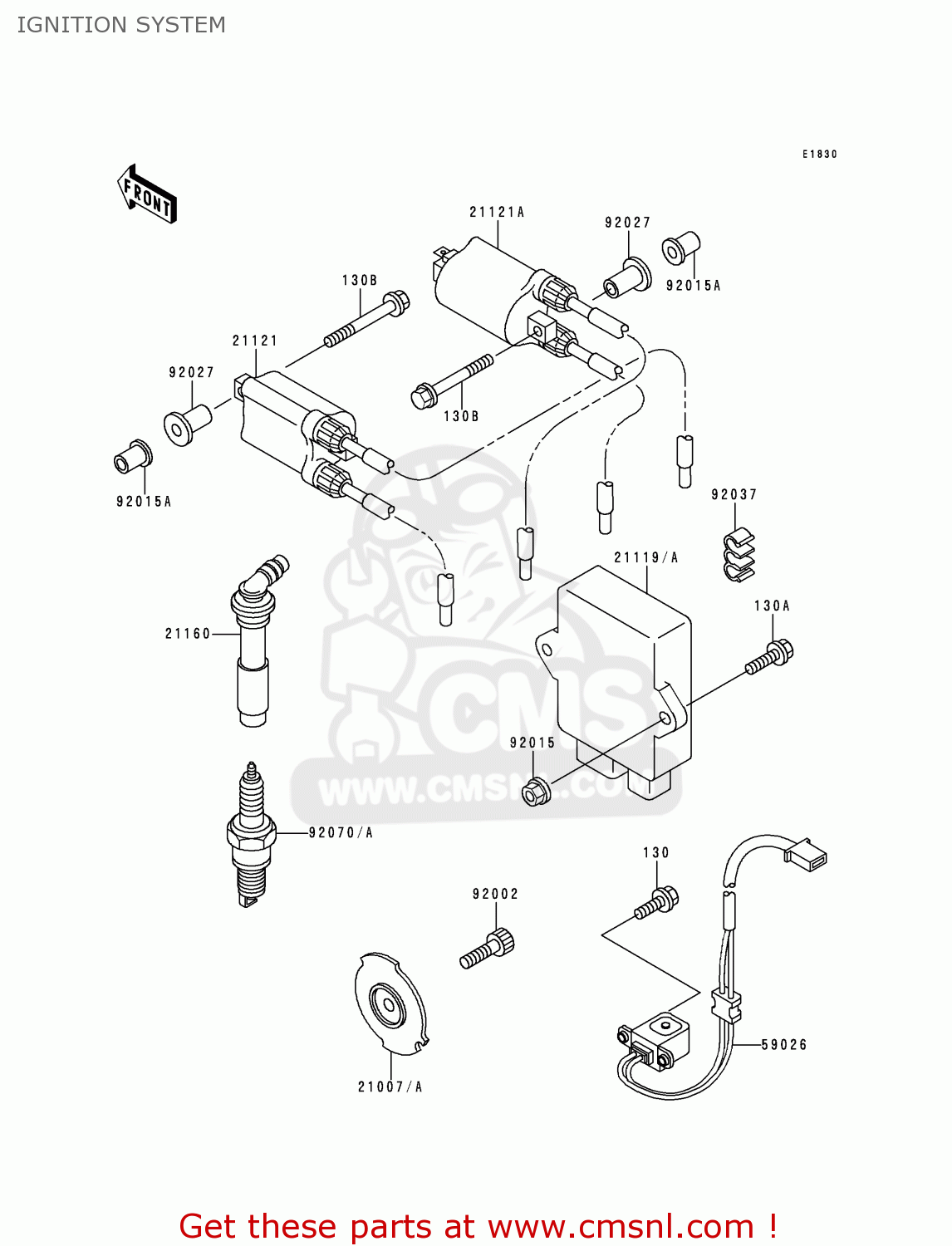

Ignition system diagram ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

prices are in EUR

ref

part #

description

quantity

130

130G0512
ref: 130

BOLT-FLANGED

€ 1.00

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

130B

130J0645
ref: 130B

BOLT-FLANGED,6X45,BLA

€ 3.00

21007

210071205
ref: 21007
EUFRGRITNLNRSDUK

ROTOR,PULSING

€ 38.00

21007A

210071263
ref: 21007A
FG

ROTOR,PULSING

€ 37.50

21119

211191364
ref: 21119
EUFRGRITNLNRSDUK

IGNITER

€ 382.00

21119A

211191497
ref: 21119A
FG

IGNITER

€ 698.50

21121

211211227
ref: 21121

COIL-IGNITION,#1&#4

€ 153.00

21121A

211211228
ref: 21121A

COIL-IGNITION,#2&#3

€ 150.00

21160

211601081
ref: 21160

CAP-ASSY-PLUG

€ 38.50

59026

590261100
ref: 59026

COIL-PULSING

€ 117.00

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151700A
ref: 92015A

NUT

€ 5.50

92027

92027195
ref: 92027

COLLAR

€ 4.00

92037

920371697
ref: 92037

CLAMP,CABLE

€ 4.50

92070

920701143
ref: 92070

CR9E (NGK SPARKPLUG)

€ 8.50

92070A

ref: 92070A
