Genuine ZX Kawasaki Parts delivered quickly!


CARBURETOR

ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

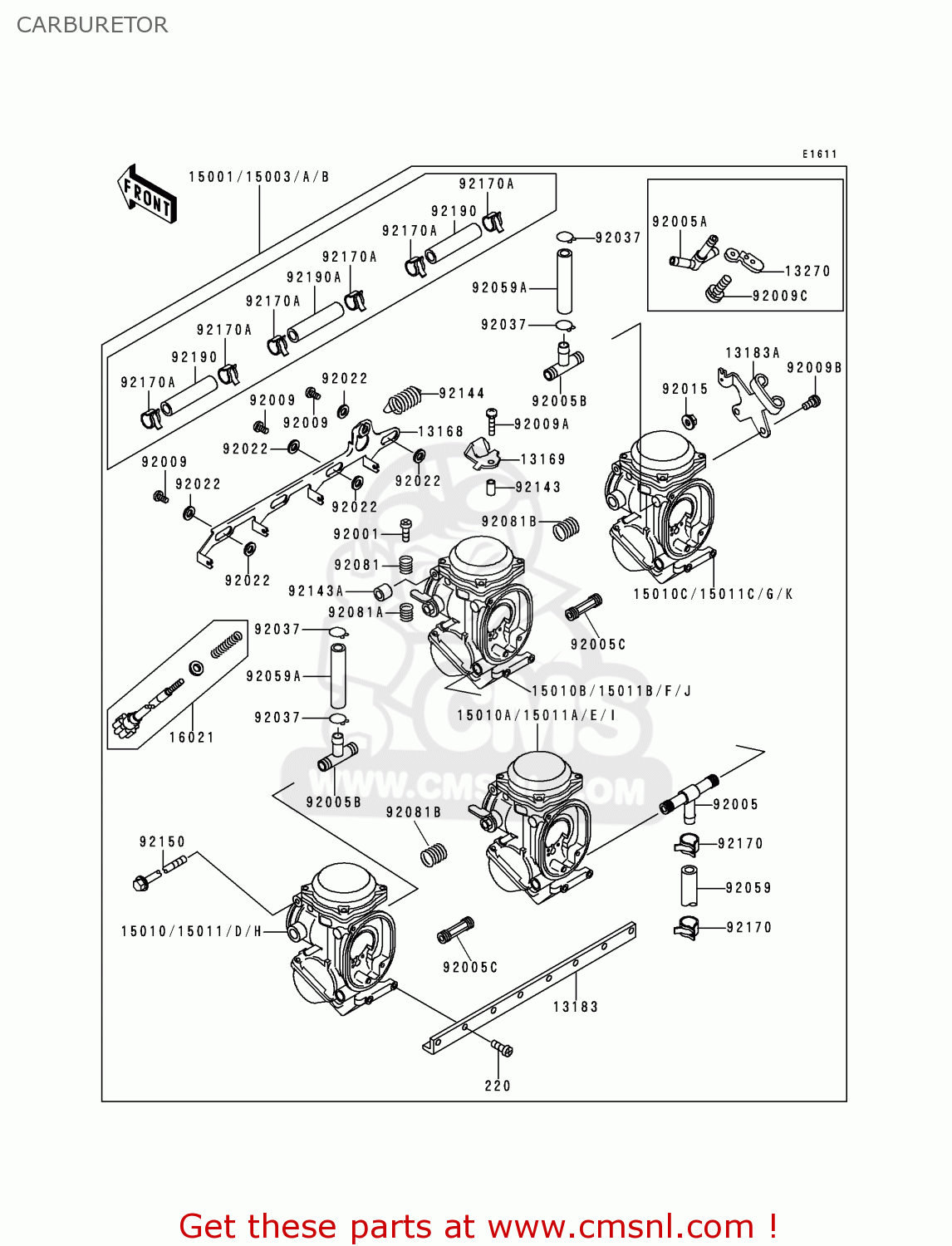

Carburetor diagram ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD

CARBURETOR ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD
CARBURETOR ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD
CARBURETOR ZX600E7 ZZR600 1999 EUROPE UK FR NL FG GR IT NR SD
prices are in EUR
ref
part #
description
quantity
13168
131681462
ref: 13168
LEVER,STARTER
€ 87.00
13169
131691965
ref: 13169
PLATE,STARTER CABLE
131691965
€ 26.50
13183
131831608
ref: 13183
PLATE,CARBURETOR STAY
€ 61.50
13183A
131831610
ref: 13183A
PLATE,THROTTLE CABLE
131831610
€ 56.00
13270
132701118
ref: 13270
FGFRITNLUK
PLATE,FITTING STAY
132701118
€ 4.00
15001
150011868
ref: 15001
SD
CARBURETOR-ASSY
€ 2,313.00
15003
150031138
ref: 15003
EUGRNR
CARBURETOR-ASSY
€ 1,769.00
15003A
150031139
ref: 15003A
FRITNLUK
CARBURETOR-ASSY
€ 1,751.50
15003B
150031308
ref: 15003B
FG
CARBURETOR-ASSY
€ 2,313.00
15010
150101565
ref: 15010
SD
CARBURETOR,LH,OUTSIDE
€ 750.00
15010A
150101566
ref: 15010A
SD
CARBURETOR,LH,INSIDE
€ 750.00
15010B
150101567
ref: 15010B
SD
CARBURETOR,RH,INSIDE
€ 750.00
15010C
150101568
ref: 15010C
SD
CARBURETOR,RH,OUTSIDE
€ 750.00
15011
150111037
ref: 15011
EUGRNR
CARBURETOR,LH,OUTSIDE
€ 444.50
15011A
150111038
ref: 15011A
EUGRNR
CARBURETOR,LH,INSIDE
€ 576.50
15011B
150111039
ref: 15011B
EUGRNR
CARBURETOR,RH,INSIDE
€ 444.50
15011C
150111040
ref: 15011C
EUGRNR
CARBURETOR,RH,OUTSIDE
€ 444.50
15011D
150111041
ref: 15011D
FRITNLUK
CARBURETOR,LH,OUTSIDE
€ 539.00
15011E
150111042
ref: 15011E
FRITNLUK
CARBURETOR,LH,INSIDE
€ 539.00
15011F
150111043
ref: 15011F
FRITNLUK
CARBURETOR,RH,INSIDE
€ 539.00
15011G
150111044
ref: 15011G
FRITNLUK
CARBURETOR,RH,OUTSIDE
€ 539.00
15011H
150111324
ref: 15011H
FG
CARBURETOR,LH,OUTSIDE
€ 750.00
15011I
150111325
ref: 15011I
FG
CARBURETOR,LH,INSIDE
€ 750.00
15011J
150111326
ref: 15011J
FG
CARBURETOR,RH,INSIDE
€ 750.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
15011K
150111327
ref: 15011K
FG
CARBURETOR,RH,OUTSIDE
€ 750.00
16021
160211160
ref: 16021
SCREW-THROTTLE STOP
160211160
€ 37.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051287
ref: 92005
FITTING
€ 29.00
92005A
920051291
ref: 92005A
FGFRITNLUK
FITTING
920051291
€ 26.50
92005B
920051306
ref: 92005B
FITTING
920051306
€ 19.00
92005C
920051310
ref: 92005C
FITTING
920051310
€ 25.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091446
ref: 92009A
SCREW,4X18
920091446
€ 4.00
92009B
920091597
ref: 92009B
SCREW
920091597
€ 4.50
92009C
920091713
ref: 92009C
FGFRITNLUK
SCREW
920091713
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92059
920591487
ref: 92059
TUBE,7.3X12.5X240
€ 25.00
92059A
920591738
ref: 92059A
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92143A
921431438
ref: 92143A
COLLAR
921431438
€ 6.50
92144
921441540
ref: 92144
SPRING,STATER LEVER
€ 13.00
92150
921501416
ref: 92150
BOLT
921501416
€ 22.00
92170
921701051
ref: 92170
CLAMP,TUBE
921701051
€ 5.50
92170A
921701504
ref: 92170A
FGFRITNLUK
CLAMP
921701504
€ 3.00
92190
921901530
ref: 92190
FGFRITNLUK
TUBE,WATER
€ 7.50
92190A
921901536
ref: 92190A
FGFRITNLUK
TUBE,WATER
921901536
€ 7.50
