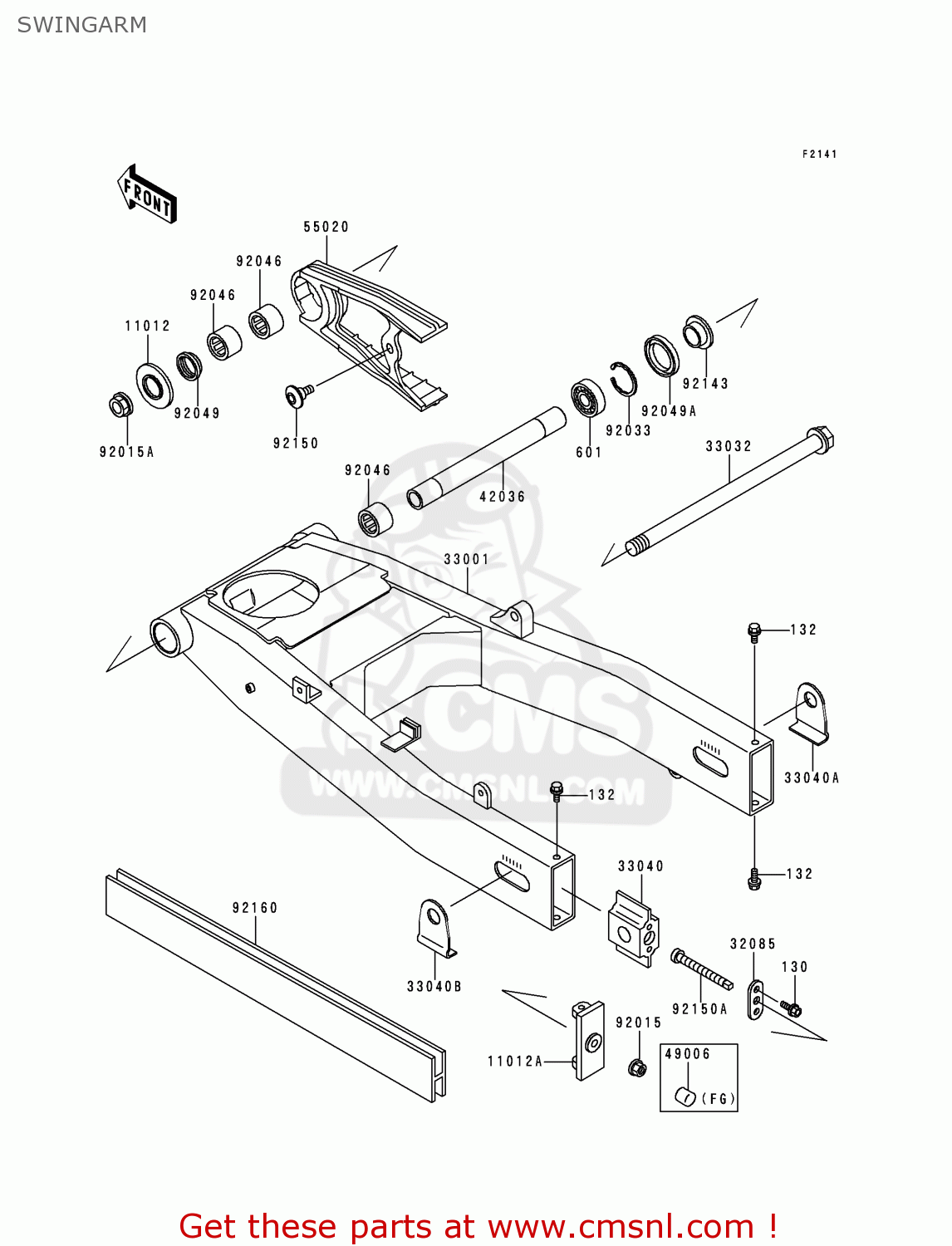

SWINGARM

ref

part #

description

quantity

130

130H0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

132

132E0612
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

601

601A6004
ref: 601

BEARING-BALL,#6004

€ 13.00

11012

110121658
ref: 11012

CAP

€ 5.50

11012A

110121704
ref: 11012A

CAP,CHAIN ADJUSTER

€ 26.00

32085

320851351
ref: 32085

STOPPER,CHAIN ADJUSTE

€ 3.50

33001

330011488TX
ref: 33001

ARM-COMP-SWING,SILVER

€ 959.00

33032

330321165
ref: 33032

SHAFT-SWING ARM

€ 75.00

33040

330401133
ref: 33040

ADJUSTER-CHAIN,INSIDE

€ 29.50

33040A

330401135
ref: 33040A

ADJUSTER-CHAIN,OUTSID

€ 4.50

33040B

330401141
ref: 33040B

ADJUSTER-CHAIN,OUTSID

€ 5.50

42036

420361283
ref: 42036

SLEEVE,SWING ARM,L=21

€ 62.00

49006

490061218
ref: 49006
FG

BOOT

€ 3.50

55020

550201524
ref: 55020

GUARD,CHAIN

€ 48.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151724
ref: 92015A

NUT,FLANGED,20MM

€ 10.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92046

920461235
ref: 92046

BEARING-NEEDLE,7E-HVS

€ 21.00

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92049A

920491314
ref: 92049A

SEAL-OIL,MHSA25 42 6

€ 9.00

92143

921431227
ref: 92143

COLLAR,SWING ARM,L=12

€ 7.50

92150

921501154
ref: 92150

BOLT,SOCKET,6MM

€ 5.00

92150A

921501285
ref: 92150A

BOLT,CHAIN ADJUSTER

€ 6.00

92160

921601174
ref: 92160

DAMPER,SWING ARM

€ 20.00
