SWING ARM

ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

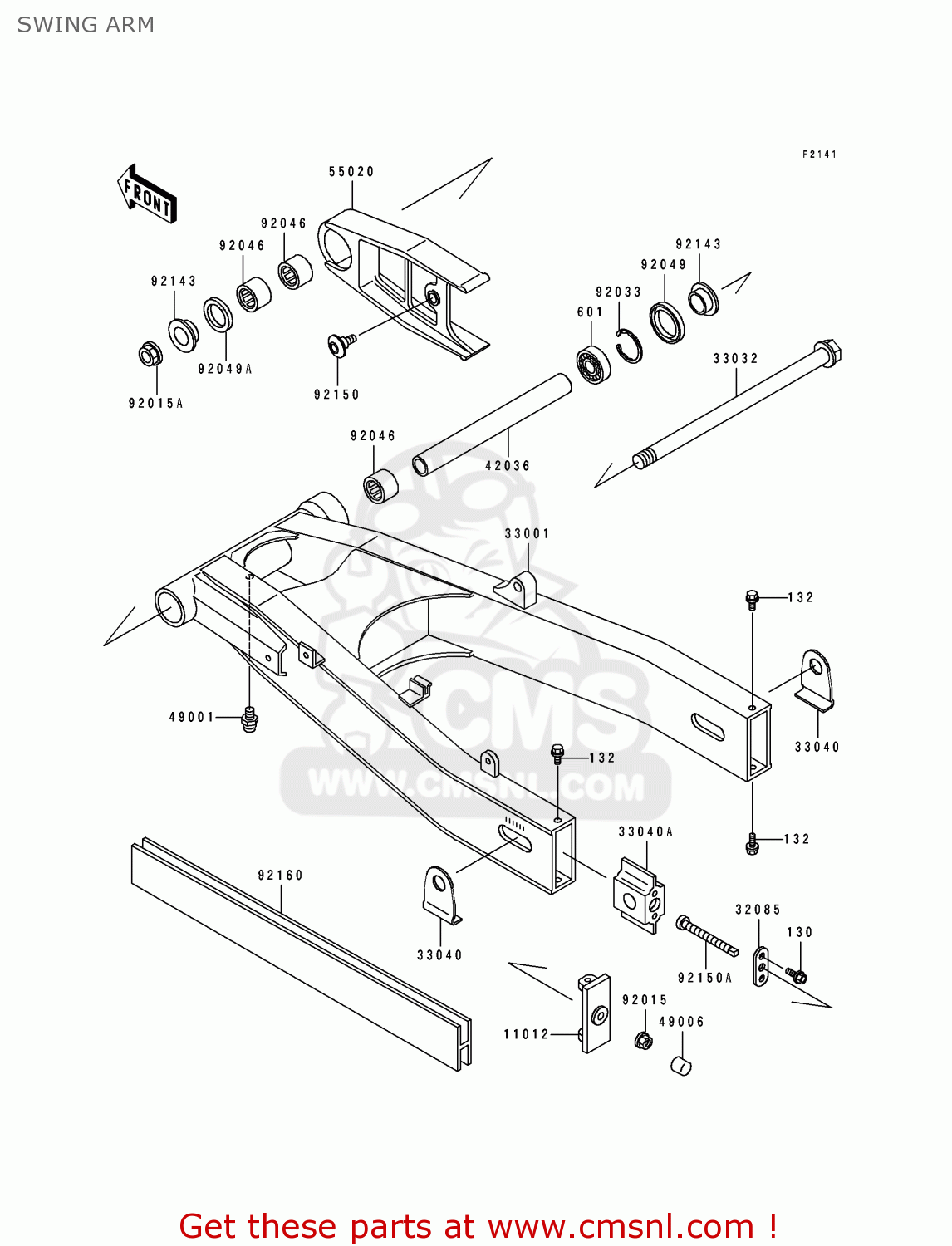

Swing arm diagram ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

SWING ARM ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
SWING ARM ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
SWING ARM ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130B0614
ref: 130
BOLT-FLANGED
130B0614
€ 0.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
601
601A6004
ref: 601
BEARING-BALL,#6004
601A6004
€ 13.00
11012
110121704
ref: 11012
CAP,CHAIN ADJUSTER
110121704
€ 26.00
32085
320851317
ref: 32085
STOPPER,CHAIN ADJUSTE
€ 2.50
33001
330011356GD
ref: 33001
ARM-COMP-SWING,G.GRAY
€ 742.00
33032
330321152
ref: 33032
SHAFT-SWING ARM
€ 45.00
33040
330401094
ref: 33040
ADJUSTER-CHAIN,OUTSID
330401094
€ 4.00
33040A
330401103
ref: 33040A
ADJUSTER-CHAIN,INSIDE
330401103
€ 23.50
42036
420361266
ref: 42036
SLEEVE,SWING ARM,L=20
420361266
€ 38.50
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
490011051
€ 2.00
49006
490061218
ref: 49006
FG
BOOT
490061218
€ 3.50
55020
550201370
ref: 55020
GUARD,CHAIN
550201370
€ 27.50
92015
920151143
ref: 92015
NUT,8MM
920151143
€ 0.50
92015A
920151724
ref: 92015A
NUT,FLANGED,20MM
920151724
€ 10.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92046
920461111
ref: 92046
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92049
920491314
ref: 92049
SEAL-OIL,MHSA25 42 6
920491314
€ 9.00
92049A
920491352
ref: 92049A
SEAL-OIL
920491352
€ 7.50
92143
921431227
ref: 92143
COLLAR,SWING ARM,L=12
921431227
€ 7.50
92150
921501154
ref: 92150
BOLT,SOCKET,6MM
921501154
€ 5.00
92150A
921501285
ref: 92150A
BOLT,CHAIN ADJUSTER
921501285
€ 6.00
92160
921601174
ref: 92160
DAMPER,SWING ARM
921601174
€ 20.00
