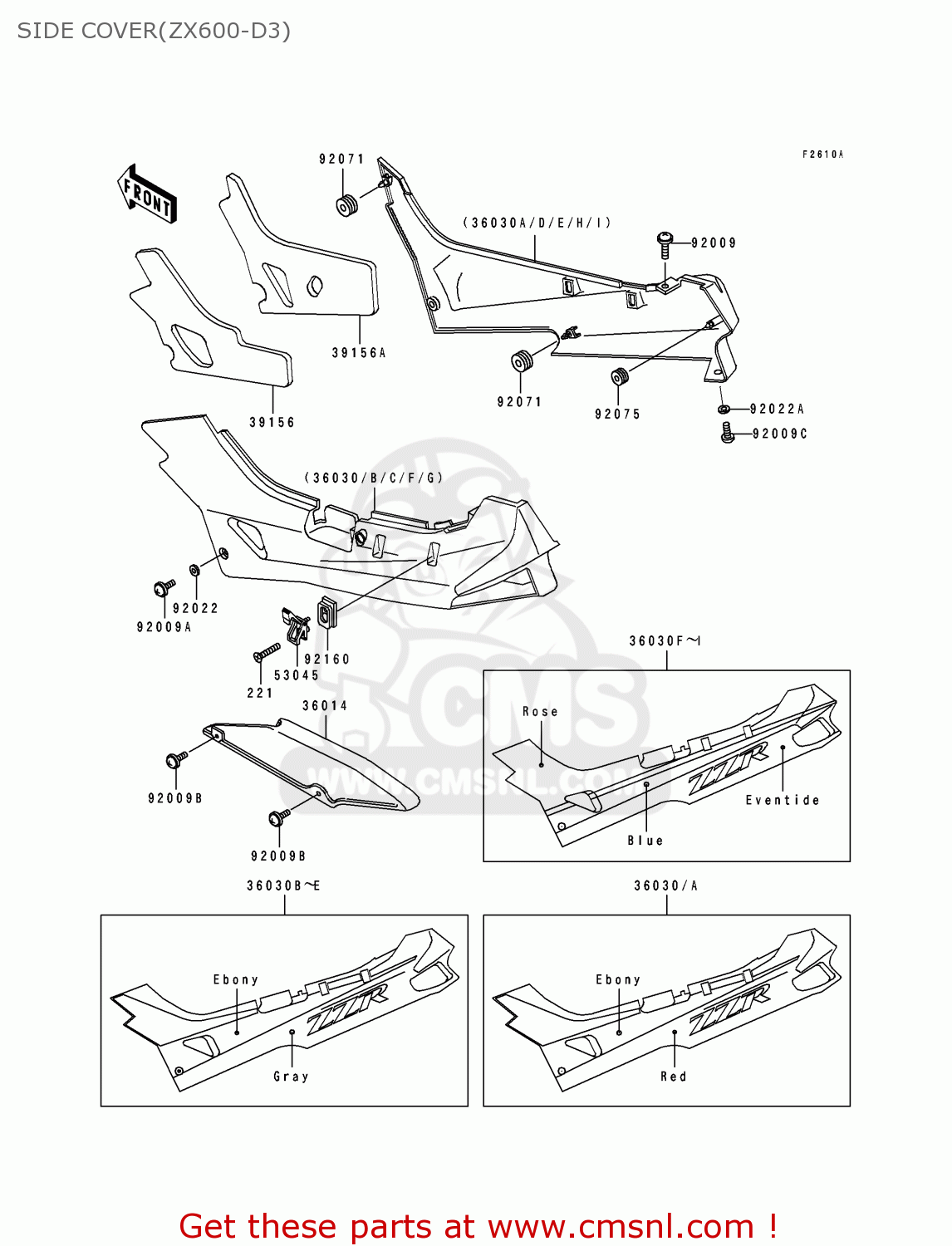

SIDE COVER(ZX600-D3)

ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

Side cover(zx600-d3) diagram ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

SIDE COVER(ZX600-D3) ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
SIDE COVER(ZX600-D3) ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
SIDE COVER(ZX600-D3) ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
36014
360141164
ref: 36014
CASE-CHAIN
360141164
€ 59.00
36030
360305057J3
ref: 36030
EUITNRSDSP
COVER-SIDE,LH,EBONY/R
360305057J3
€ 298.50
36030A
360305058J3
ref: 36030A
EUITNRSDSP
COVER-SIDE,RH,EBONY/R
360305058J3
€ 298.50
36030B
360305059JP
ref: 36030B
FGUK
COVER-SIDE,LH,EBONY/G
€ 355.00
36030C
360305059T4
ref: 36030C
AREUFRGR
COVER-SIDE,LH,EBONY/G
€ 334.00
36030D
360305060JP
ref: 36030D
FGUK
COVER-SIDE,RH,EBONY/G
€ 384.00
36030E
360305060T4
ref: 36030E
AREUFRGR
COVER-SIDE,RH,EBONY/G
360305060T4
€ 298.50
36030F
360305061TD
ref: 36030F
AREUFRGRITNRSDSPST
COVER-SIDE,LH,BLUE/RO
360305061TD
€ 282.50
36030G
360305061TH
ref: 36030G
FGUK
COVER-SIDE,LH,BLUE/RO
€ 384.00
36030H
360305062TD
ref: 36030H
AREUFRGRITNRSDSPST
COVER-SIDE,RH,BLUE/RO
360305062TD
€ 283.00
36030I
360305062TH
ref: 36030I
FGUK
COVER-SIDE,RH,BLUE/RO
€ 293.00
39156
391561202
ref: 39156
PAD,SIDE COVER,LH
391561202
€ 25.00
39156A
391561203
ref: 39156A
PAD,SIDE COVER,RH
€ 25.00
53045
530451053
ref: 53045
HOOK-ASSY,TOOL BOX
530451053
€ 29.50
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
221
221E0625
ref: 221
SCREW-CSK-CROS
221E0625
€ 2.50
92009A
920091288
ref: 92009A
SCREW,6X14
920091288
€ 2.00
92009B
920091402
ref: 92009B
SCREW,6X10
920091402
€ 1.50
92009C
920091654
ref: 92009C
SCREW
920091654
€ 0.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92160
921601042
ref: 92160
DAMPER,ROPE HOOK
921601042
€ 3.50
