AIR FILTER

ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

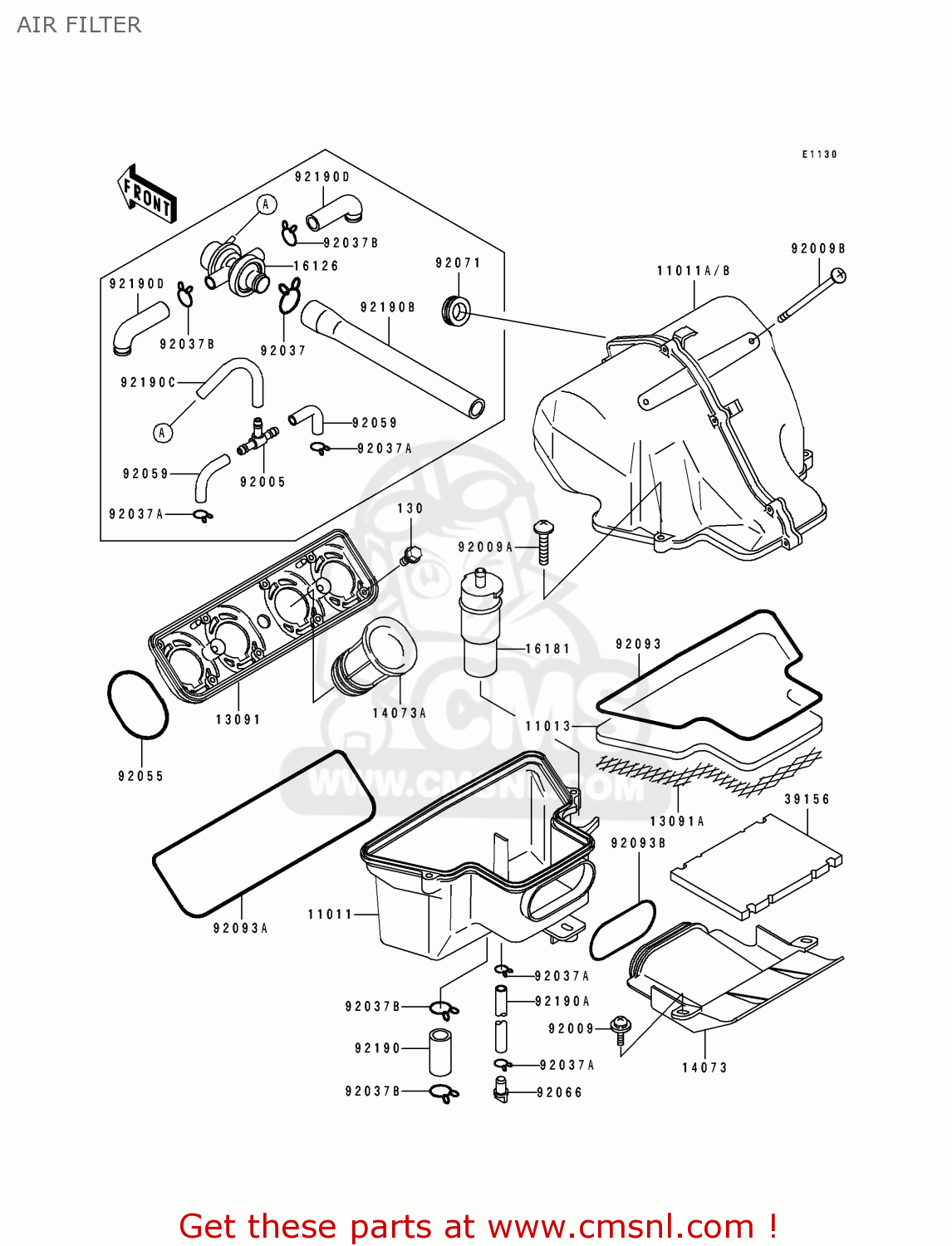

Air filter diagram ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

AIR FILTER ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR FILTER ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR FILTER ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11011
110111328
ref: 11011
CASE-AIR FILTER,LWR
110111328
€ 58.00
11011A
110111373
ref: 11011A
EUFGFRGRITNRSDSPUK
CASE-AIR FILTER,UPP
€ 109.50
11011B
110111376
ref: 11011B
ARST
CASE-AIR FILTER,UPP
110111376
€ 104.00
11013
110131189
ref: 11013
ELEMENT-AIR FILTER
110131189
€ 9.00
13091
130911657
ref: 13091
HOLDER,AIR FILTER
130911657
€ 34.00
13091A
130911658
ref: 13091A
HOLDER,ELEMENT
130911658
€ 9.50
14073
140731424
ref: 14073
DUCT,AIR INTAKE
€ 38.00
14073A
140731442
ref: 14073A
DUCT,CARBURETOR
140731442
€ 17.00
16126
161261144
ref: 16126
ARST
VALVE,AIR SWITCH
161261144
€ 135.50
16181
161811058
ref: 16181
TANK-RESONATOR
€ 9.50
39156
391561213
ref: 39156
PAD
391561213
€ 6.00
92005
920051017
ref: 92005
ARST
FITTING,TUBE
920051017
€ 6.50
92009
920091283
ref: 92009
SCREW-PAN-WSP-CROS,6X
920091283
€ 2.50
92009A
920091589
ref: 92009A
SCREW,6X35
920091589
€ 2.50
92009B
920091622
ref: 92009B
SCREW
920091622
€ 4.50
92037
920371076
ref: 92037
ARST
CLAMP,TUBE
920371076
€ 4.00
92037A
920371712
ref: 92037A
EUFGFRGRITNRSDSPUK
CLAMP
920371712
€ 3.00
92037A
920371712
ref: 92037A
ARST
CLAMP
920371712
€ 3.00
92037B
92037213
ref: 92037B
EUFGFRGRITNRSDSPUK
CLAMP, BREATHER TUBE
92037213
€ 2.50
92037B
92037213
ref: 92037B
ARST
CLAMP, BREATHER TUBE
92037213
€ 2.50
92055
920551434
ref: 92055
RING-O,67.7X3.1
920551434
€ 6.50
92059
920591365
ref: 92059
ARST
TUBE,4X9X80
€ 9.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711028
ref: 92071
ARST
GROMMET AIR FILTER
€ 4.50
130
130G0516
ref: 130
BOLT-FLANGED
130G0516
€ 0.50
92093
920931301
ref: 92093
SEAL,AIR FILTER CASE
920931301
€ 6.50
92093A
920931302
ref: 92093A
SEAL,AIR FILTER HOLDE
€ 4.50
92093B
920931303
ref: 92093B
SEAL,AIR DUCT
920931303
€ 3.50
92190
921901088
ref: 92190
TUBE,BREATHER
€ 10.50
92190A
921901089
ref: 92190A
TUBE,7X10X480
921901089
€ 11.00
92190B
921901090
ref: 92190B
ARST
TUBE,VALVE-AIR FILTER
€ 8.50
92190C
921901091
ref: 92190C
ARST
TUBE,4X9X220
€ 12.50
92190D
921901168
ref: 92190D
ARST
TUBE
921901168
€ 7.00
