FENDER

ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

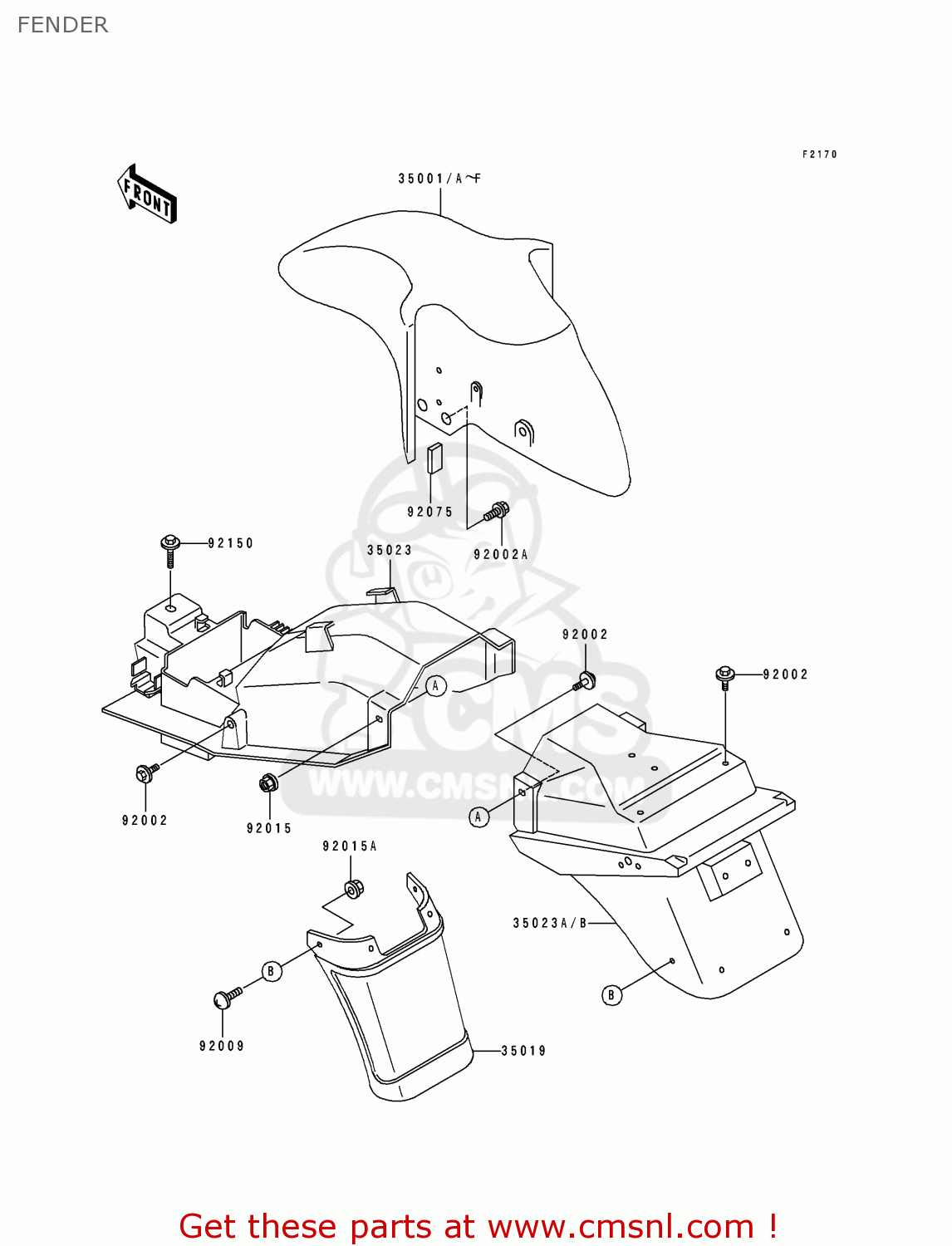

Fender diagram ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

35001

350011147C6
ref: 35001
AREUFRGRITNRSDSPST

FENDER-ASSY-FRONT,M.N

€ 119.00

35001D

350011147H8
ref: 35001D
AREUFGFRGRITNRSDSPUK

FENDER-ASSY-FRONT,EBO

€ 125.00

35001F

350011147TK
ref: 35001F
FGUK

FENDER-ASSY-FRONT,M.N

€ 124.50

35019

350191170
ref: 35019
FGGRNRSDST

FLAP,REAR FENDER

€ 33.00

35023

350231266
ref: 35023

FENDER-REAR,FR

€ 59.00

35023A

350231267
ref: 35023A
AREUFRITSPUK

FENDER-REAR,RR

€ 99.00

35023B

350231270
ref: 35023B
FGGRNRSDST

FENDER-REAR,RR

€ 94.00

92002

920011950
ref: 92002

BOLT,6X16

€ 2.50

92002A

920021200
ref: 92002A

BOLT,FLANGED,8X16

€ 3.00

92009

920091182
ref: 92009
FGGRNRSDST

SCREW,5X12,BLACK

€ 1.50

92015

920151237
ref: 92015

NUT,FLANGED,6MM,BLACK

€ 3.50

92015A

920151328
ref: 92015A
FGGRNRSDST

NUT,FLANGED,5MM

€ 2.00

92075

920751902
ref: 92075

DAMPER

€ 3.00

92150

920021407
ref: 92150

BOLT,6X25

€ 2.00

FENDER

all assemblies
