OIL PAN

ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

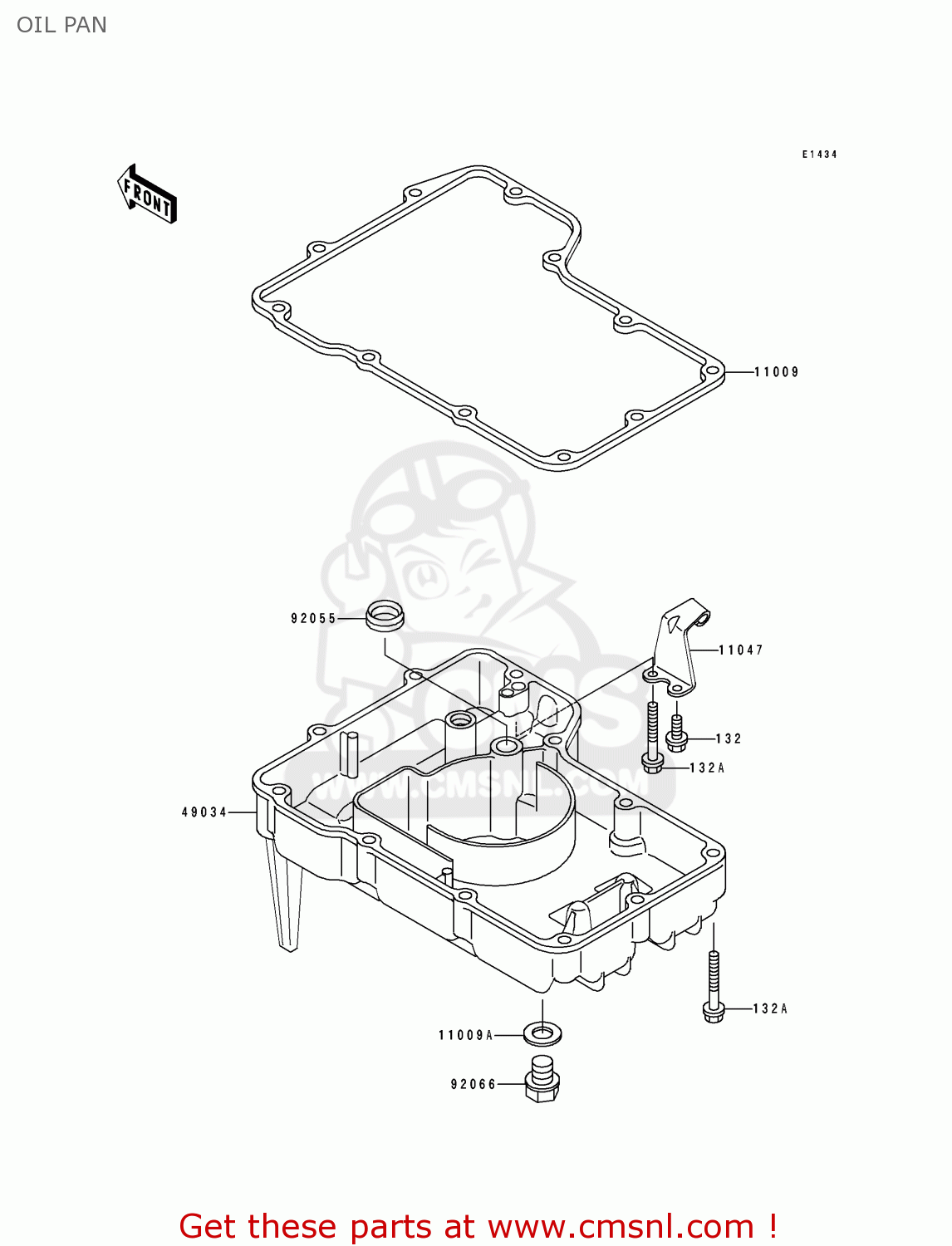

Oil pan diagram ZX600D3 ZZR600 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0640
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

11009

110091870
ref: 11009

GASKET,OIL PAN (NAS)

€ 15.50

11009A

92065097
ref: 11009A

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

11047

110461912
ref: 11047

BRACKET,CLUTCH WIRE

€ 8.00

49034

490341090
ref: 49034

PAN-OIL

€ 156.00

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
