SEAT

ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

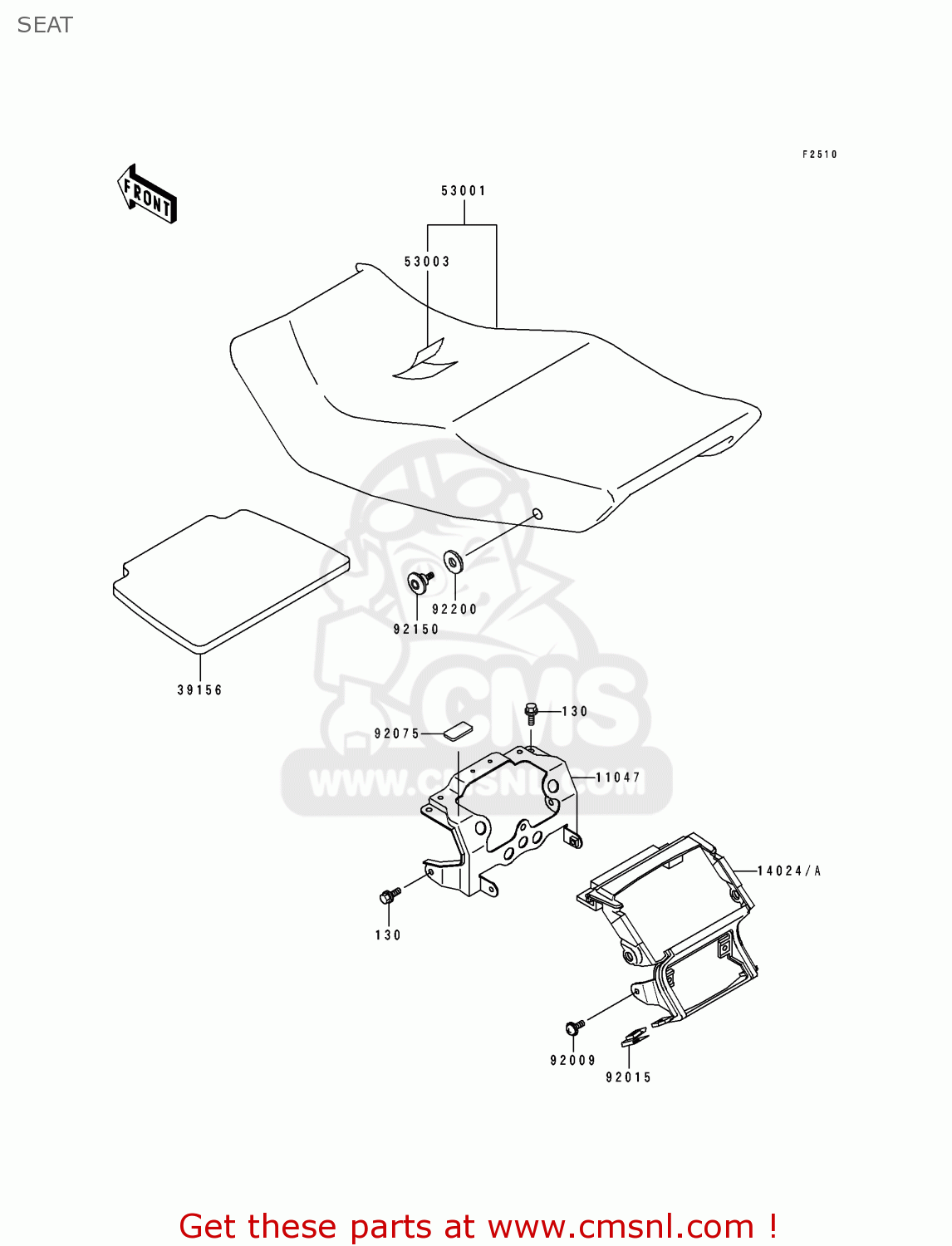

Seat diagram ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

11047

110461950
ref: 11047

BRACKET,TAIL

€ 33.50

14024

140241897GW
ref: 14024
EUFRGRITNRSDSPSTUKWG

COVER,TAIL,M.S.BLUE

€ 111.50

14024A

140241897HC
ref: 14024A

COVER,TAIL,ROSE OPERA

€ 68.50

39156

391561214
ref: 39156

PAD,SEAT

€ 13.50

53001

530011601MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 314.00

53003

530031237MA
ref: 53003

LEATHER,SEAT,BLACK

€ 72.50

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92015

920151798
ref: 92015

NUT

€ 4.50

92075

920751883
ref: 92075

DAMPER

€ 2.50

92150

921501154
ref: 92150

BOLT,SOCKET,6MM

€ 5.00

92200

922001013
ref: 92200

WASHER,10.3X20X1

€ 3.00

SEAT

all assemblies
