FRAME

ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

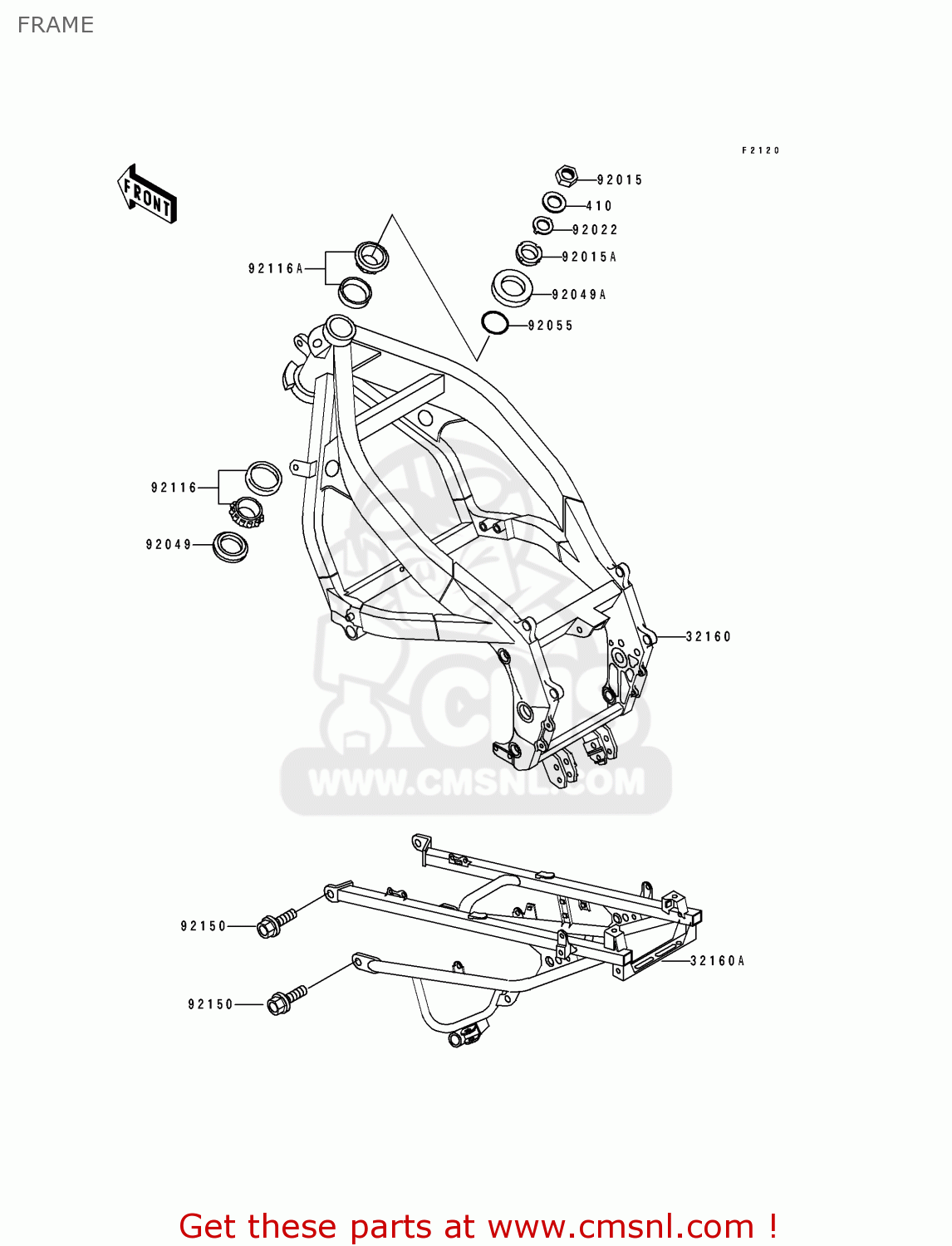

Frame diagram ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

410

410F1800
ref: 410

W-PLAIN-S

€ 3.00

32160

321601118GD
ref: 32160

FRAME-COMP,FR,G.GRAY

€ 971.50

32160A

32160112010
ref: 32160A

FRAME-COMP,RR,BLACK

€ 599.50

92015

920151404
ref: 92015

NUT,18MM

€ 15.50

92015A

920151546
ref: 92015A

NUT,25MM,T=12

€ 14.50

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491313
ref: 92049A

SEAL-OIL,XMH33 70 6.4

€ 14.50

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92150

921501410
ref: 92150

BOLT

€ 2.50
