ELECTRICAL EQUIPMENT

ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

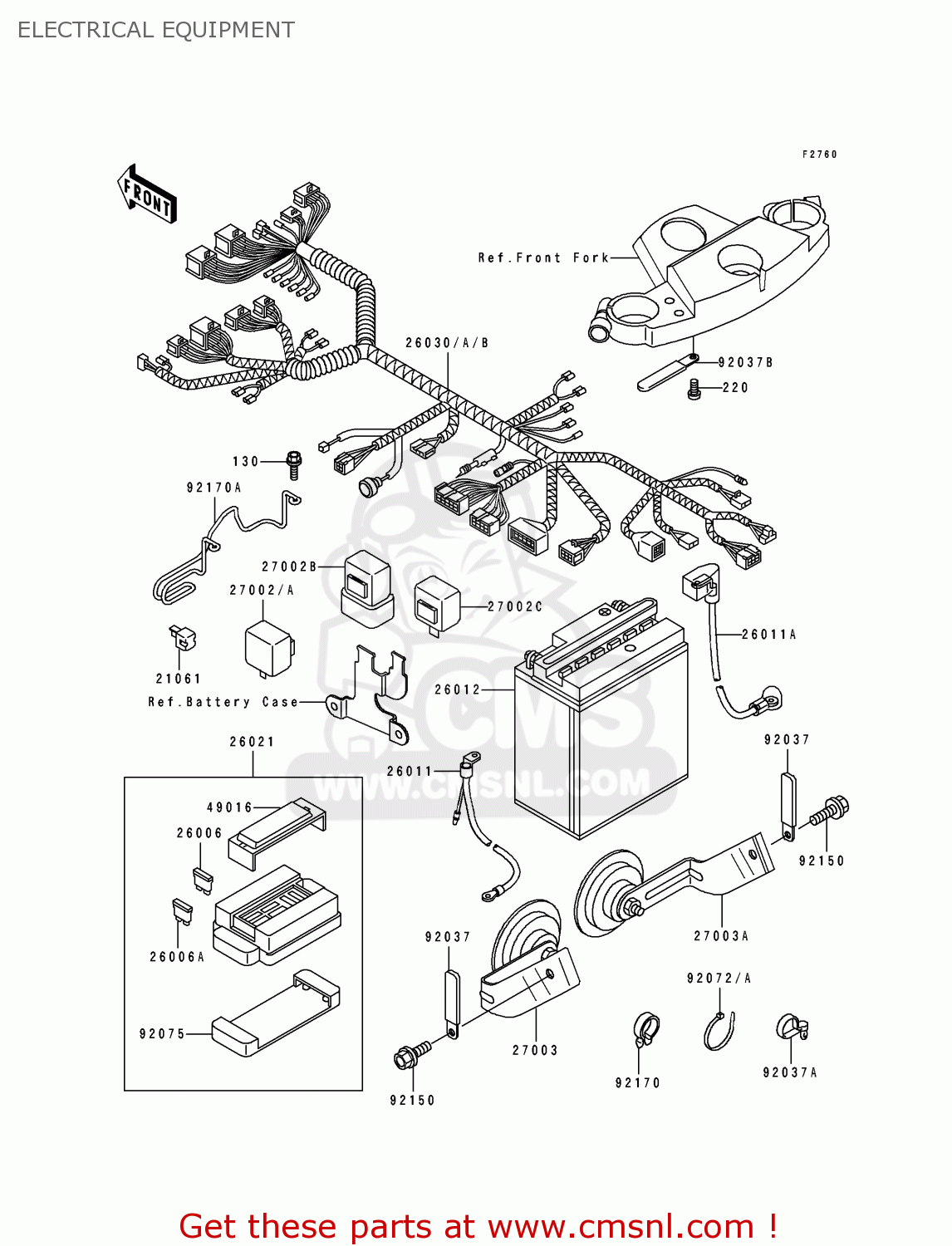

Electrical equipment diagram ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

ELECTRICAL EQUIPMENT ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
ELECTRICAL EQUIPMENT ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
ELECTRICAL EQUIPMENT ZX600D1 ZZR600 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0620
ref: 130
BOLT-FLANGED,6X20
130J0620
€ 2.50
220
220C0510
ref: 220
SCREW-PAN-CROS
220C0510
€ 2.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
260061007
€ 3.00
26011
260111195
ref: 26011
WIRE-LEAD,BATTERY GRO
260111195
€ 14.50
26011A
260111315
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 19.50
26012
260121246
ref: 26012
BATTERY
€ 64.50
26021
260211071
ref: 26021
JUNCTION BOX
260211071
€ 159.00
26030
260301020
ref: 26030
AREUFRGRNRSPSTUK
HARNESS,MAIN
€ 211.50
26030A
260301021
ref: 26030A
SDWG
HARNESS,MAIN
260301021
€ 211.50
26030B
260301055
ref: 26030B
IT
HARNESS,MAIN
€ 238.00
27002
270021053
ref: 27002
AREUFRGRITNRSPSTUK
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
SDWG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27002B
270021072
ref: 27002B
RELAY-ASSY,FUEL SENSO
270021072
€ 40.00
27002C
270021073
ref: 27002C
RELAY-ASSY,FUEL LAMP
270021073
€ 35.00
27003
270031325
ref: 27003
HORN,LH
€ 45.00
27003A
270031326
ref: 27003A
IT
HORN,RH
€ 45.00
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92037
92037113
ref: 92037
AREUFRGRNRSDSPSTUKWG
CLAMP
92037113
€ 4.00
92037
92037113
ref: 92037
IT
CLAMP
92037113
€ 4.00
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371539
ref: 92037B
CLAMP,L=45
920371539
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721237
ref: 92072A
BAND,L=250
920721237
€ 2.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92150
921501224
ref: 92150
BOLT,FLANGED,8X20
€ 0.50
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701168
ref: 92170A
CLAMP
921701168
€ 10.00
